First pic shows entry point on passenger side under bonnet hinge ( rectangle hole) , second shows exit point in inner guard ( rectangle hole). The highest point in the middle is where blower vent takes in fresh air. Its has a rolled curve to keep water out, the only way that will let in water is if these two holes in front of each "a" pillar are seriously blocked or if you have rust holes in surface of cowl drain

hope that helps

Attach file:

---




I'll get some pics tonight. There's no other holes other than fan draw and what rust has made. Pics shortly

like so....

Attach file:

---


Can still get through my suppliers at work. Pm if you want me to price up for you.

Do you mean the inlay part? Got it out of a vt vx commodore

Seeing as this GX dash has three large cluster holes and i only had two gauges (revs/speedo) that left one spare. At first i was going to just put the standard clock i got with the dash..... untill i found out its not from a b210! nor would it match the new look. Next was an idea of a flat panel with pilot lights eg like narva style ones, wasnt sold on that either.

Then this came to me in a dream ( almost like the fox when homer ate to much chilli )

First take one old dash inlay, cut out warning icons as needed
use standard light block and replace with new icons
Get autometer guage bulbs , they fit perfectly in old light block
Strip Drift gauge and modify to take new block
Cut ABS to shape to give mirror effect.
Drill holes to accommodate new warning lamps.

Not finished yet but you get the idea.

Attach file:

---










Cleaned down the dash ages ago, finally started to finish it off. Wanted to do carbon but didnt want it standing out. Happy with the result. Now time to put gauges in. Iv e modified holes to fit them but because there being mounted from behind the dash to keep them deep in the hole the usual clamp mount method wont work. The only thing i can think off is hot glue then in??

Attach file:

---






Been a while since my last confession.

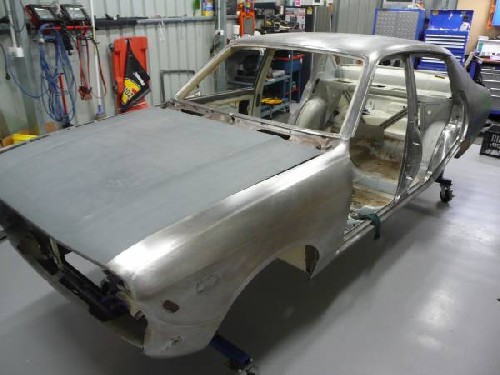

Started getting the body ready two weeks ago, stripped all etch primer and started from a bare metal shell. Filled up wiper motor hole , excess holes in engine bay, rear badge mount filled in and new indicator holes cut, old ones also filled in.

First sprayed a polyester fill sanded that back then primed it all. Seems so easy to write but took weeks to do! Really happy with how it looks in primer feels like ive ticked another box

Also should have my 215/50/13s here soon. there going on the rear wheels, engineer much happier with tyre rim combo now. New diff should be ready soon. Fitted it with braided line to match the rest of the flexible lines with stainless solid tubing.

Looks like three weeks untill i can borrow a booth so may work on dash gauge setup. its on our kitchen table i better try to finish it soon or ill be sleeping in the 120!

Attach file:

---










Ideally after just chrome piece ,but if ones you find are good condition I'll take complete lights
Thanks heaps

Good luck with the rebuild

Can post pics if it helps

Any chance you can find me a good set for sale?
