OK here is alot of infomation on Andys coupe, there is just so many mods but here is most of what the car consists of with pics below.
Body: 2 pack white. No rust Steve Draeme flares and rear bobtail. Bond weld
in steel cage (Cams log booked) custom alloy dash with VDO gauges race seat
and harness.
Suspension: Rear custom leafs reverse eye adjustable konis. Front shortened
stanza struts adjustable height 275lb king springs custom valved struts.
Noltech tops 3 deg neg camber. Alloy strut brace.
Diff : H190 620 diff 29spline 30mm axles range of ratios currently running
4.11 I have a 4.3 & 4.625 as well.
Brakes: Rear Mitsubishi scorpion discs slotted solid rotors. Front R33 Gtst
rotors (machined to fit) with Z32 alloy 4 spots.
Rims tyres. Front 15x7 superlites with 205/50/15 toyo proxies and rear
15x8225/50/15 toyos
Gearbox: standard S13 ca18 5 speed custom tunnel and tail shaft to fit.
Cooling: PWR custom alloy radiator and oil cooler 12" spal fan. Custom MRC
intercooler.
Engine management: Autronic SMC with electronic boost control 500R CDI.
Professionally wired separate looms.
Fuel system carter black 110gph low pressure into 1lt surge tank then bocshe
motorsport 044 700hp efi pump 3/8 feed with 5/8 return. Sard rising rate reg
with 800 twin spray injectors.
Engine:CA18det 20though over forged pistons with total seal rings. Forged
Argo rods with ARP 2000 bolts ARP stud kit fitted to engine with MLS head
gasket. Nitrided crank 8:1 comp ratio extensive headwork port work and
combustion chamber. Tomie procams and valve springs 260 deg with 8.8mm lift
dialled in for maximum bottom end and midrange. Still uses hydraulic
lifters.
2mm oversize custom stainless exhaust valves with 3 angle job and pocket
port. Chrome molly flywheel with Custom daiken extreme 4 button sprung
centre clutch. This engine drives like a normal engine until it comes on
boost nice and smooth hits hard from 4000 and hang on till 7500
Makes just over
190rwk@15psi and just under 230rwkw with 22psi with more
aggressive cam timing and more boost it should make around 240-250rwkw
(a bit out of control)
Turbo:HKS GTRS with braided lines oil and water silicone turbo pipes and
K&N filter.

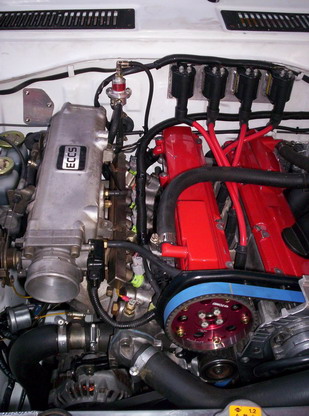

Pics:
