Re: can someone see the cam pick ups on this twin cam setup?
#6
Moderator
Joined:
2001/5/3 7:04
From 48 North
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31599
Offline
Ah, two sensors were only used 1996-1997.

this is interesting:
Quote:
'96 to '97... The fact that Mazda called them both a CPS was not helpful.

Of course, the old fashioned Miata enthusiasts were still calling a Camshaft Position Sensor (CPS) a Crankshaft Angle Sensor (CAS) adding the the confusion as there was now a real crankshaft angle sensor with the name Crankshaft Position Sensor.

Miata.net: CAM Position Sensor / Crank Angle Sensor

Posted on: 2015/6/2 2:03
Transfer the post to other applications Transfer


ddgonzal
Re: can someone see the cam pick ups on this twin cam setup?
#5
Moderator
Joined:
2001/5/3 7:04
From 48 North
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31599
Offline
Correction, apparently on Miatas, the single sensor is per Mazda a "CRANKSHAFT POSITION SENSOR". The combo unit per Mazda is a "CAMSHAFT POSITION SENSOR".

Not sure why Mazda would use both, but they do. If you use a Haltech or a Megasquirt ECU, the combo unit is all you need.

18230 SENSOR, CRANKSHAFT POSI. NO.1
18230 SENSOR, CAMSHAFT POSI. NO.2.

Mazda parts
Open in new window

Posted on: 2015/6/2 1:35
Transfer the post to other applications Transfer


ddgonzal
Re: can someone see the cam pick ups on this twin cam setup?
#4
Moderator
Joined:
2001/5/3 7:04
From 48 North
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31599
Offline

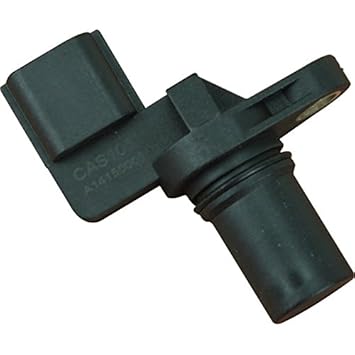

I don't know what he's using on that custom engine. But in general, CPS uses a magnetic sensor or an optical sensor (e.g. Nissan Optical CAS).

The sensor here is a magnetic type. The third wire suggests it has an amplifier built-in making it a hall-effect subtype.
Open in new window

Because it is a single sensor, it can only detect one thing (e.g. Cam Position or Crank Angle, but not both).

combo unit - Crank Angle Sensor/Cam Position Sensor
* Mazda B engines used either magnetic version Combo sensor or mitsubishi Optical version
Open in new window

These are fitted on the back of the cylinder head on Miatas.

Posted on: 2015/6/2 1:00
Transfer the post to other applications Transfer


D
Re: can someone see the cam pick ups on this twin cam setup?
#3
No life (a.k.a. DattoMaster)
Joined:
2002/10/28 6:49
From under the Firmament LOL no twiglight effect BS
Group:
Registered Users
Posts: 10926
Offline
yep CPS thanks, is it using a magnet?

Posted on: 2015/6/2 0:02
_________________
"Australia" is formed by all its geographically listed territories "including" Norfolk, Christmas & Cocos Islands. The word include excludes all else before it therefore you have no legal rights.
Transfer the post to other applications Transfer


ddgonzal
Re: can someone see the cam pick ups on this twin cam setup?
#2
Moderator
Joined:
2001/5/3 7:04
From 48 North
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31599
Offline
Quote:
can someone see the cam pick ups on this twin cam setup?
Do you mean the Camshaft Position Sensor (CPS)?

Open in new window


Open in new window


http://youtube.com/v/4AtudzdgaA4

It looks like he mounted a CPS right over the right-side Cam sprocket

Posted on: 2015/6/1 9:23
Transfer the post to other applications Transfer


D
can someone see the cam pick ups on this twin cam setup?
#1
No life (a.k.a. DattoMaster)
Joined:
2002/10/28 6:49
From under the Firmament LOL no twiglight effect BS
Group:
Registered Users
Posts: 10926
Offline
Its a mazda and nice to see something different
rather than crankshaft cas using custom cam one
https://www.youtube.com/watch?v=4AtudzdgaA4

Posted on: 2015/6/1 8:21
_________________
"Australia" is formed by all its geographically listed territories "including" Norfolk, Christmas & Cocos Islands. The word include excludes all else before it therefore you have no legal rights.
