a15 manifold ins and outs?
#1
Home away from home
Joined:
2009/11/16 1:18
From Sydney, NSW
Group:
Registered Users
Posts: 613
Offline
Hi all just inherited an a15 and the manifolds are totally different to my a12 so I was wondering if I could get some help identifying what goes where as some hoses are missing..

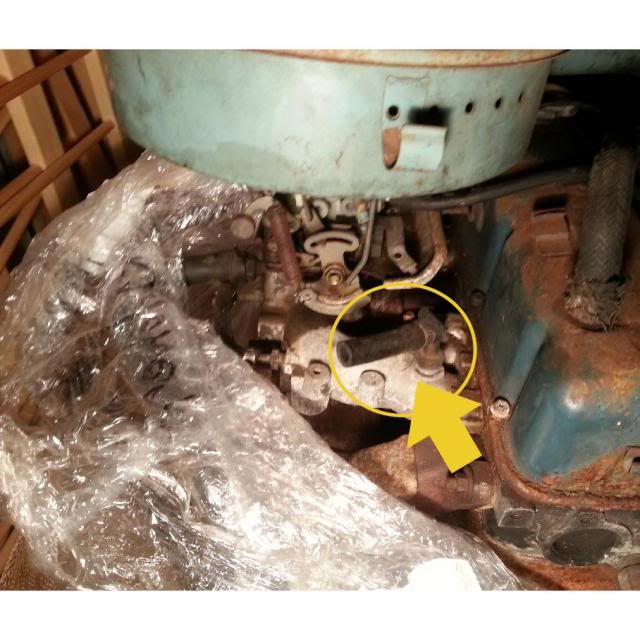

in this first phoo
to there's a small length of hose on a right angled screw in outlet that looks to
Open in new window

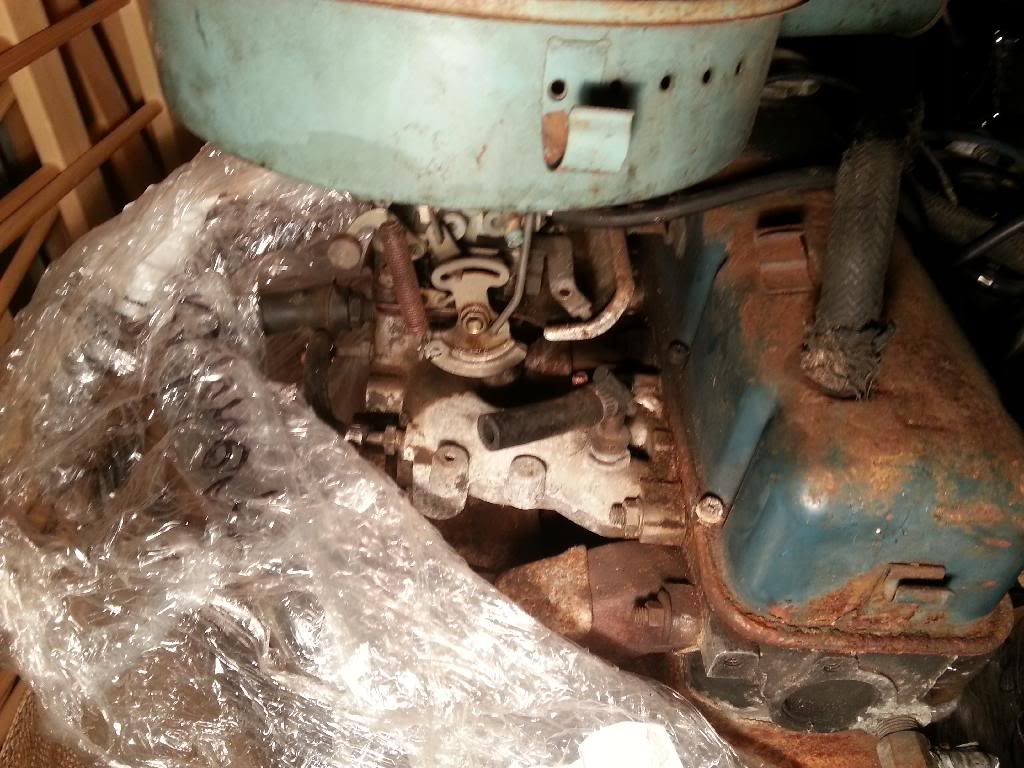

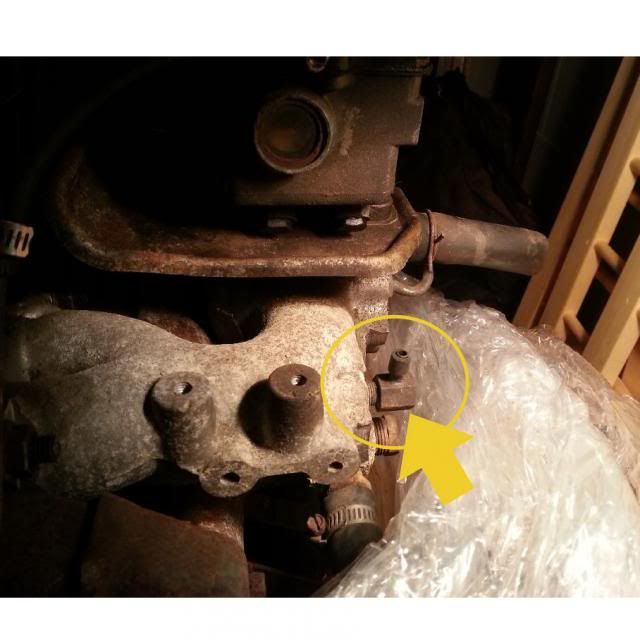

in this second photo there's a little right hand outlet with no hose attached pointing up.. just wondering what that is
Open in new window

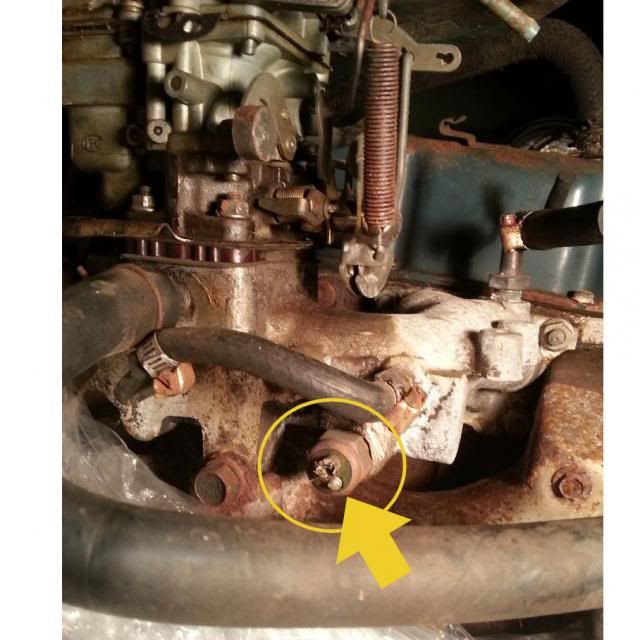

in the third photo there's some kind of switch in the back of the manifold.. just wondering what that might be?

Open in new window


also is that a standard a15 carb as again it's quite different to my a12
thanks!

Posted on: 2014/2/26 20:58

Edited by thomen on 2014/2/26 21:37:13
Edited by thomen on 2014/2/26 21:52:30
Edited by thomen on 2014/2/26 21:54:05
Transfer the post to other applications Transfer


ddgonzal
Re: a15 manifold ins and outs?
#2
Moderator
Joined:
2001/5/3 7:04
From 48 North
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31599
Offline
This is the same as an A12

Quote:
there's a small length of hose on a right angled screw in outlet that looks to Open in new window


Heater hose fitting.
Open in new window

Posted on: 2014/2/26 21:43
Transfer the post to other applications Transfer


thomen
Re: a15 manifold ins and outs?
#3
Home away from home
Joined:
2009/11/16 1:18
From Sydney, NSW
Group:
Registered Users
Posts: 613
Offline
Hi DD,
Sorry I think we're referring to different bits as I was hoping to find out what's on the manifold not the outlet at the back of the block.

I've updated the photos above with arrows and circles to point at the bits I mean..
Cheers,
Tom

Posted on: 2014/2/26 21:46
Transfer the post to other applications Transfer


120ykid
Re: a15 manifold ins and outs?
#4
Home away from home
Joined:
2008/5/14 11:59
From Wardell. NSW.
Group:
Registered Users
Posts: 233
Offline
first photo looks like a vacuum line for a brake booster?

second photo id say is another vacuum line to go to carbon cannister or some emission related equipemnt

third photo im guessing would also be some kind of emissions control switch, what im not sure of though.

Posted on: 2014/2/26 22:03
Transfer the post to other applications Transfer


ddgonzal
Re: a15 manifold ins and outs?
#5
Moderator
Joined:
2001/5/3 7:04
From 48 North
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31599
Offline
1. Brake booster fitting

2. Manifold vacuum tap for ATC

3. emissions control switch, probably for EGR

Posted on: 2014/2/26 22:22
Transfer the post to other applications Transfer


thomen
Re: a15 manifold ins and outs?
#6
Home away from home
Joined:
2009/11/16 1:18
From Sydney, NSW
Group:
Registered Users
Posts: 613
Offline
Sorry just wondering what ATC is? and EGR and how I'd hook up both?

I already have my brake booster all hooked up I'm just wondering if I'd then block this fitting off?

Posted on: 2014/2/26 22:27
