Current revision

Datsun 1000 (B10) parts.

Contents

[edit]

Body

Also See:
B10#Badges

Front%20Grill%20Badge%20(tall).jpg Grille Badge 1966, 1967 B10.

Front%20Grill%20Badge%20(62311-27726).jpg Grille Badge.

Grille%20(62303-G0100).jpg 62303-G0100, Grille.

Grille%20(62303-15401).jpg 62303-15401, Grille.

Front%20Guard%20Mould%20-%20Right.jpg Front Guard Mould - Right.

[edit]

Brakes

Brake%20Hose%20-%20Front%20Wheels%20(46201-H0125).jpg 46201-H0125, Brake Hose - Front Wheels.

Brake%20Hose%20-%20Rear%20(46210-H0125).jpg 46210-H0125, Brake Hose - Rear.

[edit]

Engine

[edit]

Interior

Acceleration%20Pedal%20Bump%20Stop%20(18135-14800).jpg 18135-14800, Acceleration Pedal Bump Stop.

Ash%20Tray.jpg Ash Tray.

Door%20Lock%20Assembly%20-%20Left%20(80503-18000).jpg 80503-18000, Door Lock Assembly - Left.

Heater%20Left%20Hand%20Window%20Demister%20Corrigated%20Duct%20(27162-18001).jpg 27162-18001, Heater Left Hand Window Demister Corrigated Duct.

Instrument%20Panel%20-%20kph.jpg Instrument Panel, Km/h.

Instrument%20Panel%20-%20mph.jpg Instrument Panel, Mph.

[edit]

Lamps

Also see:
B10#Indicators

Front%20Indicator%20Assembly%20-%20Left%20(%27Everwing%27%20EW6030L).jpg Front Indicator assembly, Left.

Front%20Indicator%20Amber%20Lens%20-%20Right%20(26122-20900).jpg 26122-20900, Front Indicator Amber Lens, Right.

Front%20Indicator%20Rubber%20-%20Right%20(26123-27750).jpg26123-27750, Front Indicator Rubber, Right.

Repeater%20Assembly%20(26160-B0101).jpg 26160-B0101, Short spear 1968/69 Same as 1968 521.

  • Not to be confused with 26160-B0110 long spear indicators.
[edit]

Mirrors

Fender%20Mirror%20-%20Left%20(96302-21002).jpg 96302-21002, Fender Mirror - Left.

Fender%20Mirror%20-%20Right%20(96301-21002).jpg 96301-21002, Fender Mirror - Right.

[edit]

Suspension

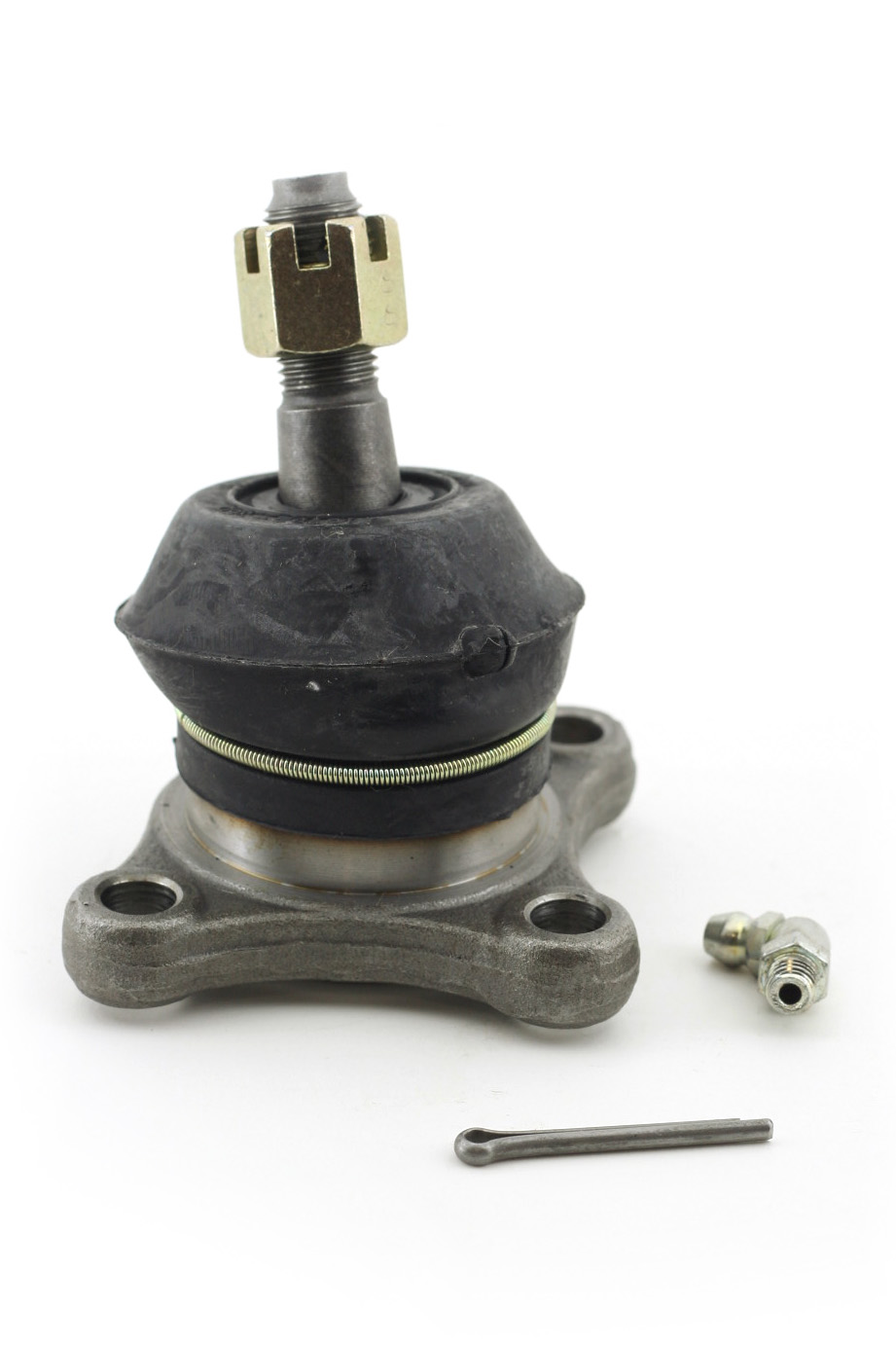

Ball%20Joint%20-%20Lower%20(40160-18000%20or%20%27555%27%20SB-4072).jpgReplacement for 40160-18000, '555' SB-4072 Ball Joint - Lower .

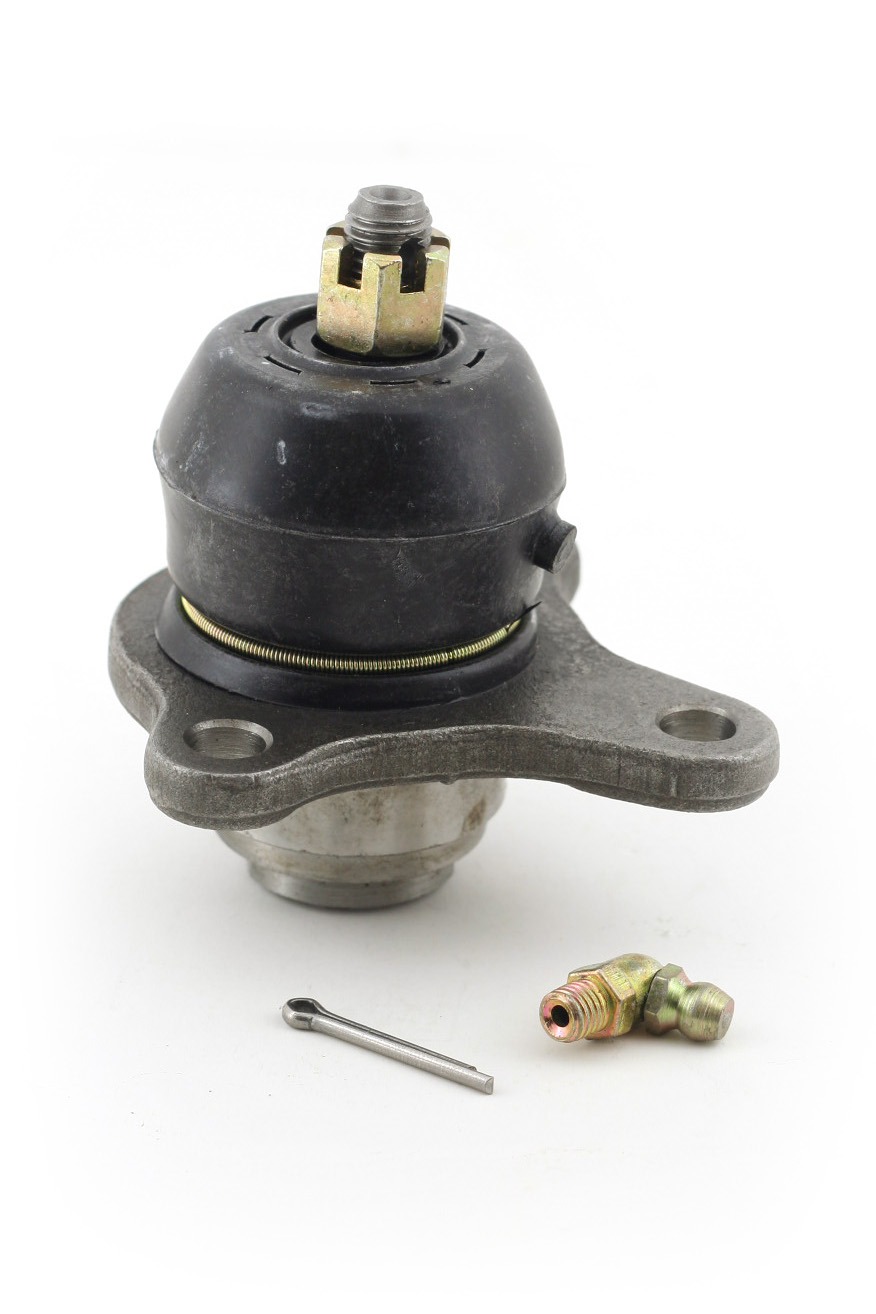

Ball%20Joint%20-%20Upper%20(40110-18001%20or%20%27555%27%20SB-4071).jpgReplacement for 40110-18001, '555' SB-4071 Ball Joint - Upper.

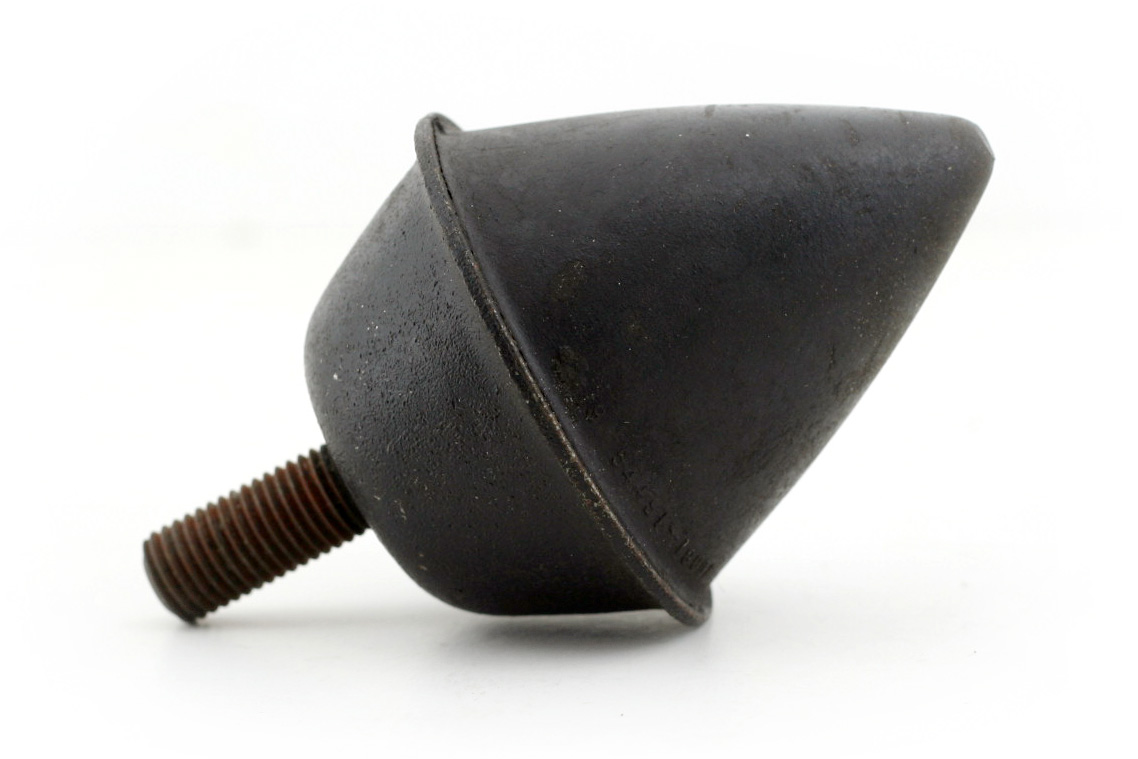

Bump%20Stop%20(54491-18001).jpg 54491-18001, Bump Stop.

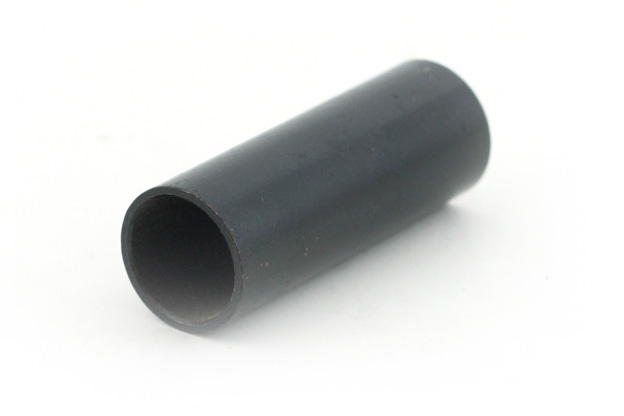

Tension%20Rod%20Collar%20(54630-18000).jpg 54630-18000, Tension Rod Collar.

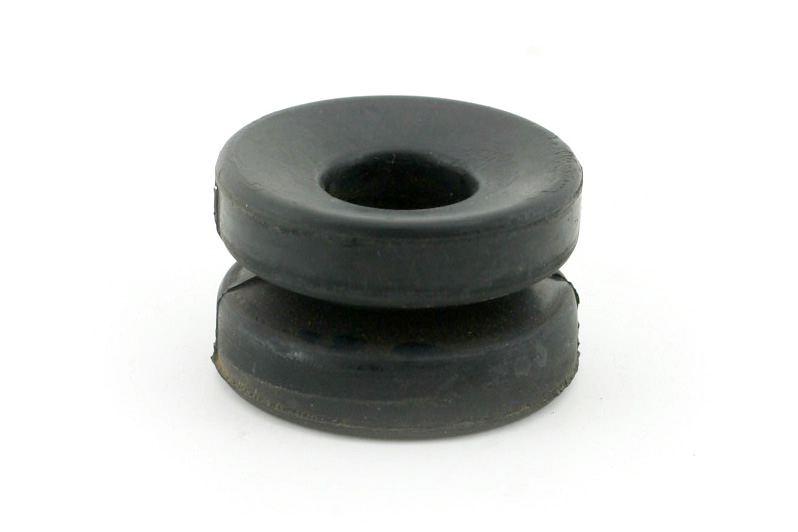

Front%20Control%20Tension%20Rod%20Bush%20(54481-18000).jpg 54481-18000, Front Control Tension Rod Bush.

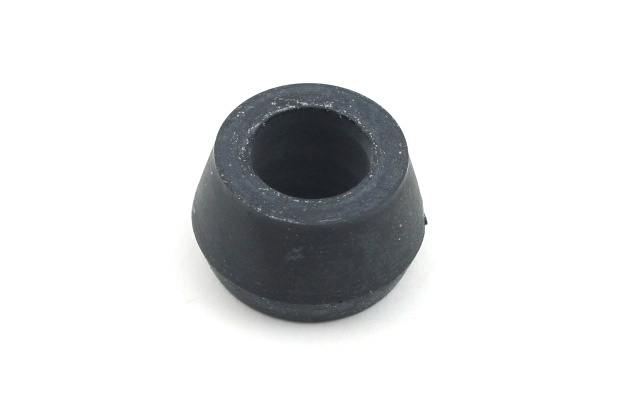

Front%20Shock%20Absorber%20Bush%20-%20Upper%20(56124-18000).jpg 56124-18000, Front Shock Absorber Bush - Upper.

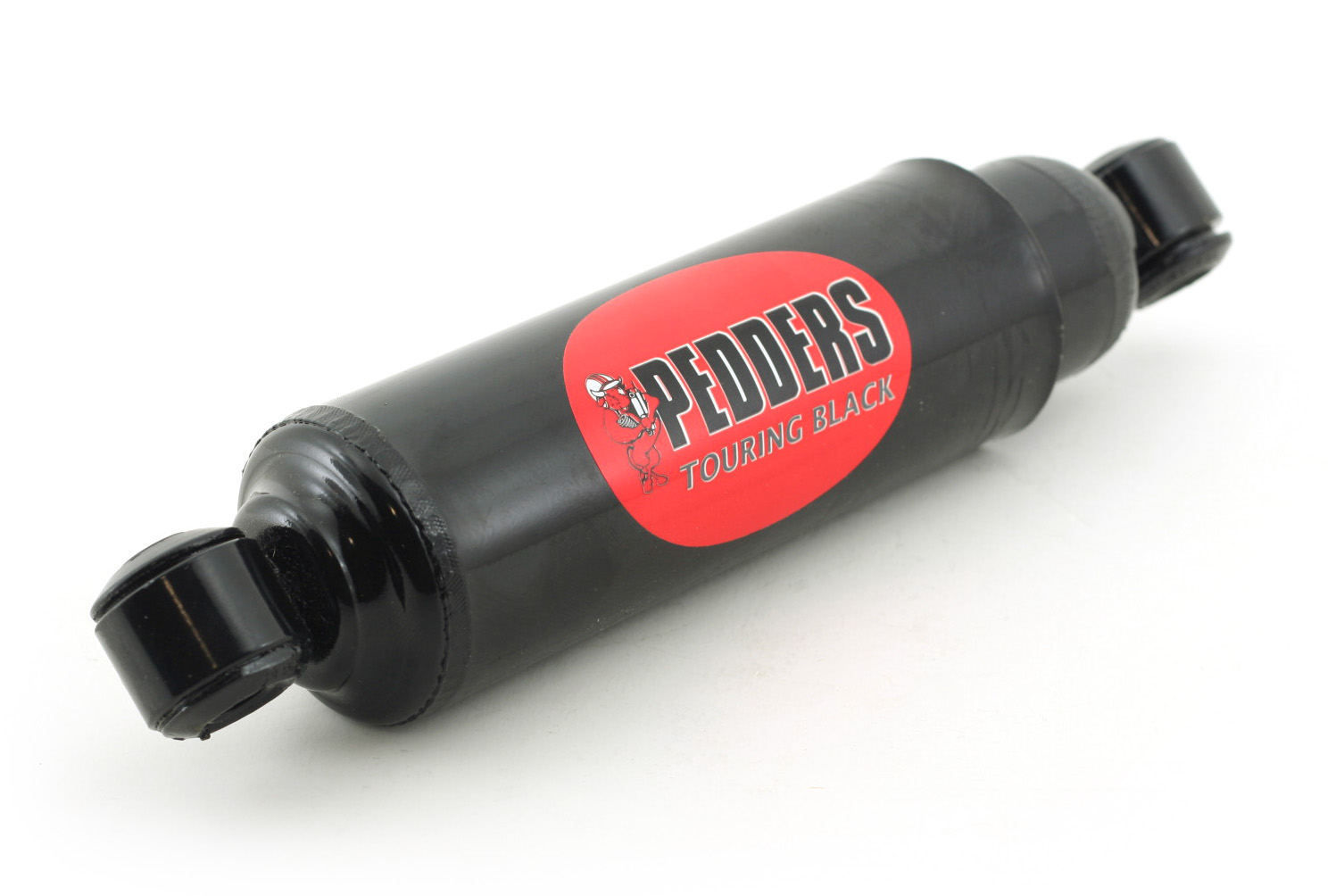

Front%20Shock%20(56110-18000%20or%20%27Pedders%27%203029).jpg Replacement for 56110-18000, 'Pedders' 3029. Needs ends pressed.

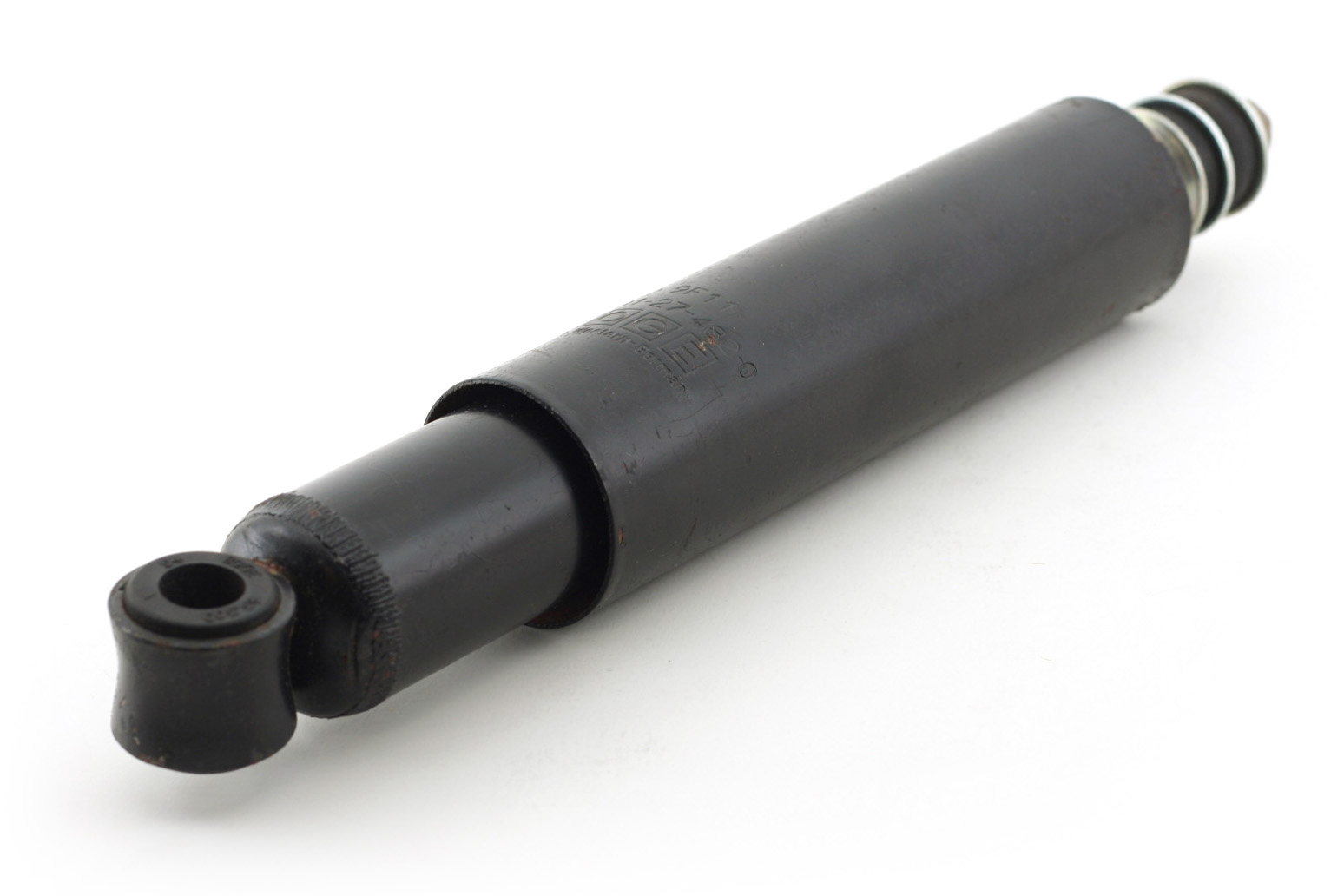

Rear%20Shock%20(56210-15401%20or%20%27Boge%27%201-0391-27-482-0).jpg Replacement for 56210-15401, 'Boge' 1-0391-27-482-0.

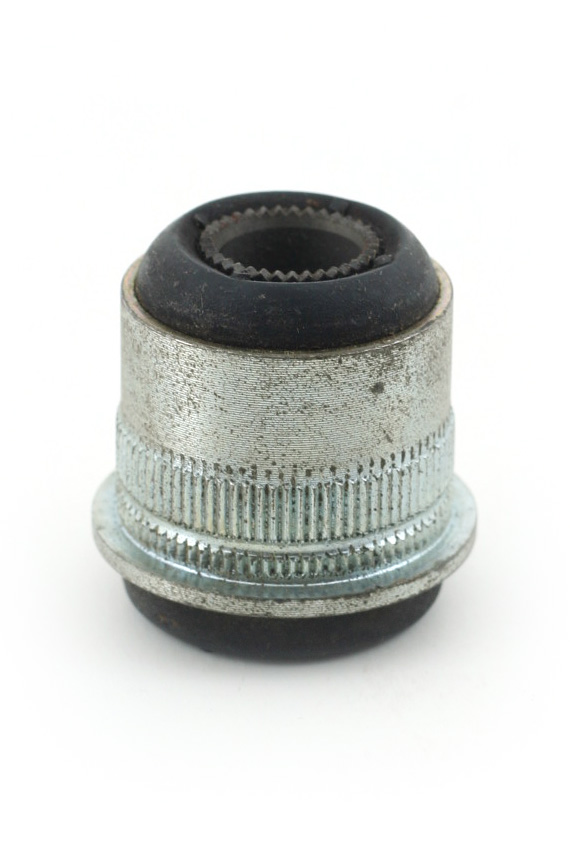

Upper%20Control%20Arm%20Bushing%20(84450-18001).jpg 84450-18001, Upper Control Arm Bushing .

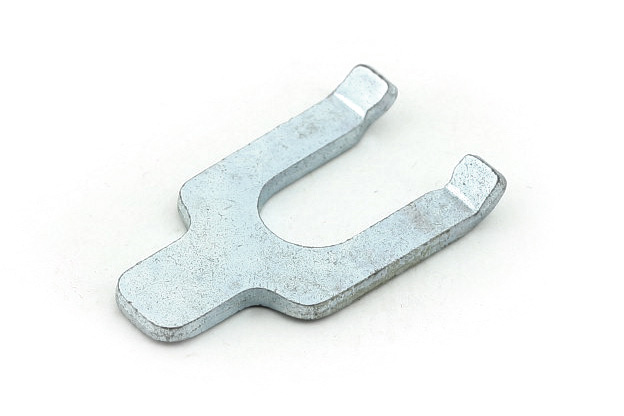

Front%20Suspension%20Camber%20Shim%20(54434-18000).jpg 54434-18000, Front Suspension Camber Shim.

[edit]

Wheels

Also see:
B10#Wheel_Covers

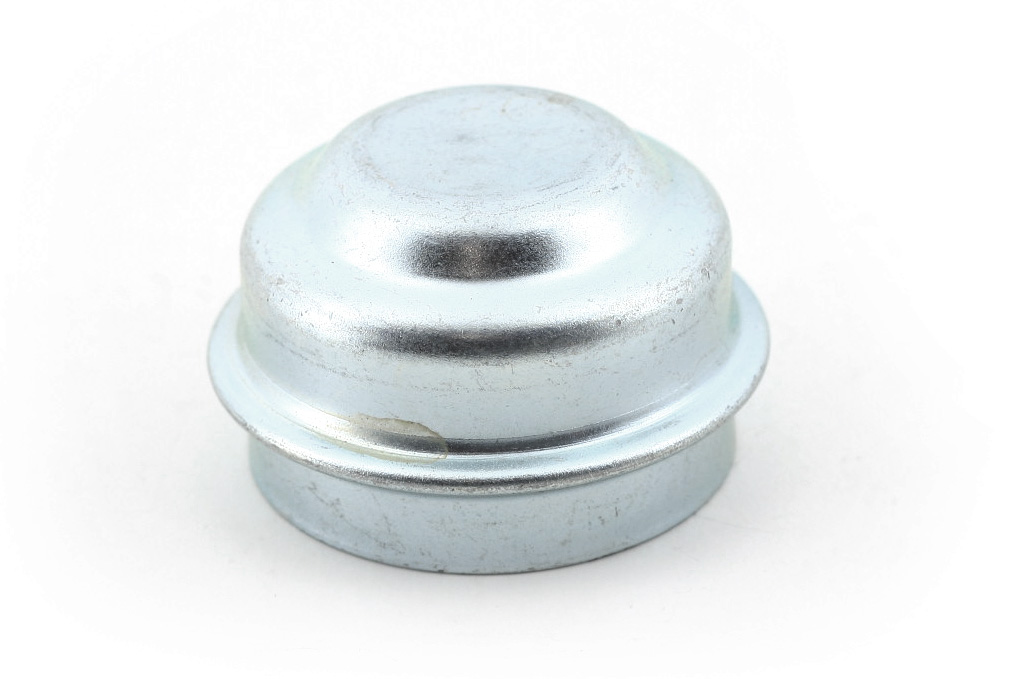

Grease%20Cap%20(40234-18000).jpg 40234-18000, Grease Cap.

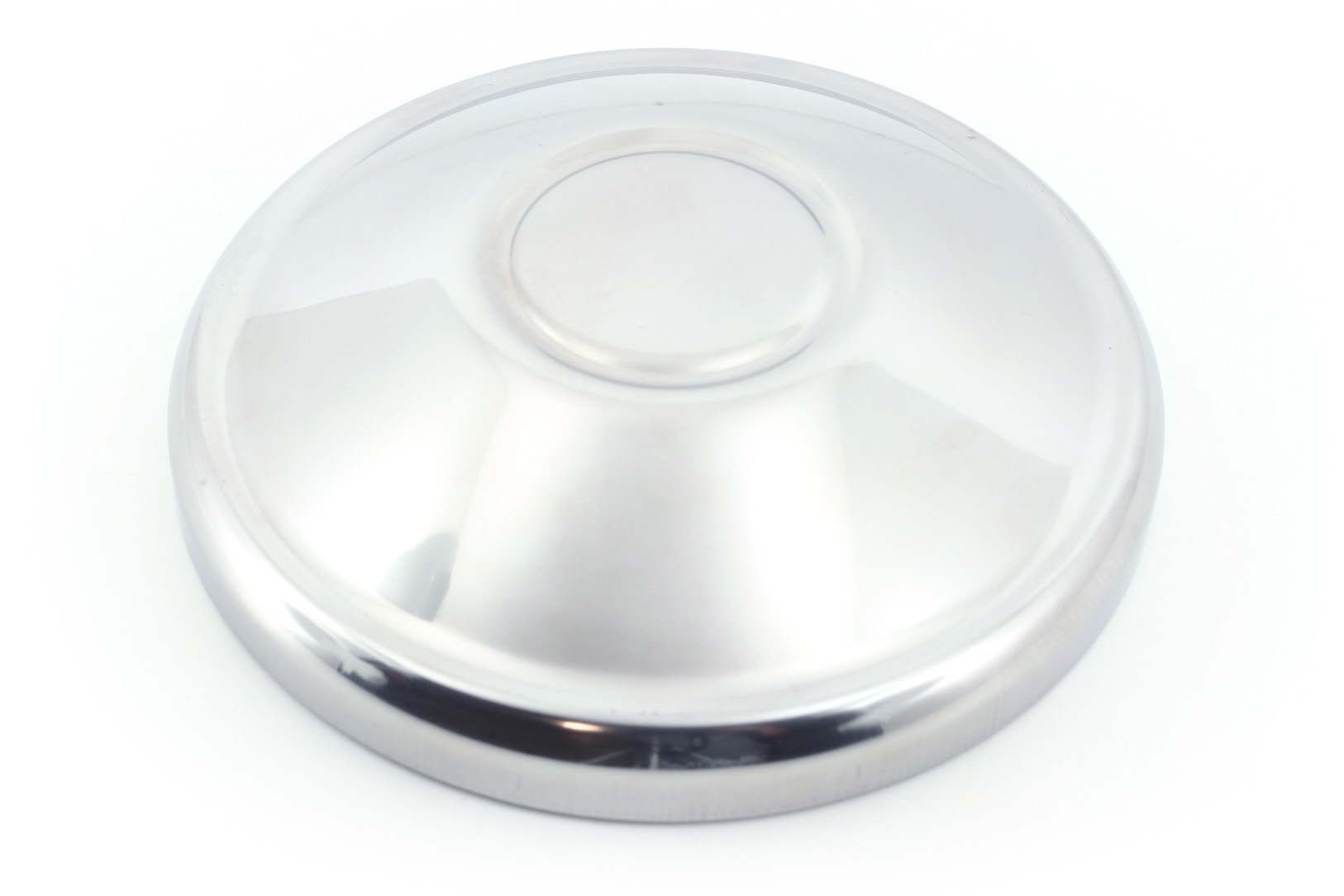

Hub%20Cap%20(40315-H1000).jpg 40315-H1000, Hub Cap.
