Deep dive on B310 bumpers
* feel free to add photos
* ask questiond
* add trivia
* request photos

QUESTION: Can B310 bumpers be used on B110? Or on a 1200 rear?


There are basically two kinds of bumpers for B310
1. old fashioned all-metal bumper (classic)
2. beam bumper

All metal (one piece), used all years by Sedan, Coupe, Van. On both early and late B310. Thin steel pressing, chrome plated. Most common type
Open in new window

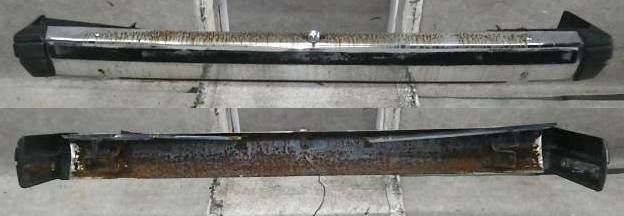

2. Channel type bumper bar with rubber sides (three pieces). Used in all countries and the only type used in North America

Attach file:


jpg  3-piece rear bumper 1980 Jan.jpg (19.96 KB)
174_5b5ac0efc77c2.jpg 624X216 px

Posted on: 2018/7/27 7:51
Transfer the post to other applications Transfer


Re: Bumpers for B310 Sunny
#2
Guest_
.

Posted on: 2018/7/27 7:54

Edited by unfamilia on 2020/3/29 12:19:33
Transfer the post to other applications Transfer


ddgonzal
Re: Bumpers for B310 Sunny
#3
Moderator
Joined:
2001/5/3 7:04
From 48 North
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31575
Offline
Fibreglass B310 bumpers are all over, for sale now on Yahoo
http://page.auctions.yahoo.co.jp/jp/auction/f282465319

Open in new window


Open in new window


Open in new window


Open in new window

Posted on: 2018/7/27 9:59
Transfer the post to other applications Transfer


Re: Bumpers for B310 Sunny
#4
Guest_
.

Posted on: 2018/7/27 10:40

Edited by unfamilia on 2020/3/29 12:19:02
Transfer the post to other applications Transfer


ddgonzal
REAR Bumpers for B310 Sunny - Early
#5
Moderator
Joined:
2001/5/3 7:04
From 48 North
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31575
Offline
Early B310 bumpers are one-piece all-chrome bumpers
* H85 DX plain
* H89 GL/GX with rubber end-covers. Also longer brackets with a sight-shield to fill the gap between body & bumper

The H89 differs by have 4 more holes in order to bolt on the rubber covers

Attach file:


png  H62-04ax.png (38.21 KB)
174_5d7d8e9a8a102.png 896X448 px

Posted on: 2019/9/15 2:06
Transfer the post to other applications Transfer


ddgonzal
Re: REAR Bumpers for B310 Sunny - Early
#6
Moderator
Joined:
2001/5/3 7:04
From 48 North
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31575
Offline
Early DX style rear - all metal. One piece, making it the least expensive of all the bumper

AUS/EUR wide plate cutout
Open in new window


JPN narrow plate cutout
Open in new window

Posted on: 2019/9/15 2:12
