The Datsun 1200 Accelerator Pedal (gas pedal, fuel pedal) on mounted to the floor on RHD models, and suspended on LHD models.

Also see:
* Throttle Cable
* Pedal Box

Contents

Overview

RHD pedal bolts to the floor, whereas LHD pedal hangs free.

5026.jpgAlbum click to view 14333_5aa387126c32d.jpgUpload click to view

Throttle Cable ball-end fits into slot on end of Accelerator Pedal. Usually a clip goes over the cable ball-end. But as long as the cable is properly adjusted you can drive it for years without the clip.
25874.jpgAlbum click to view

Right-Hand Drive

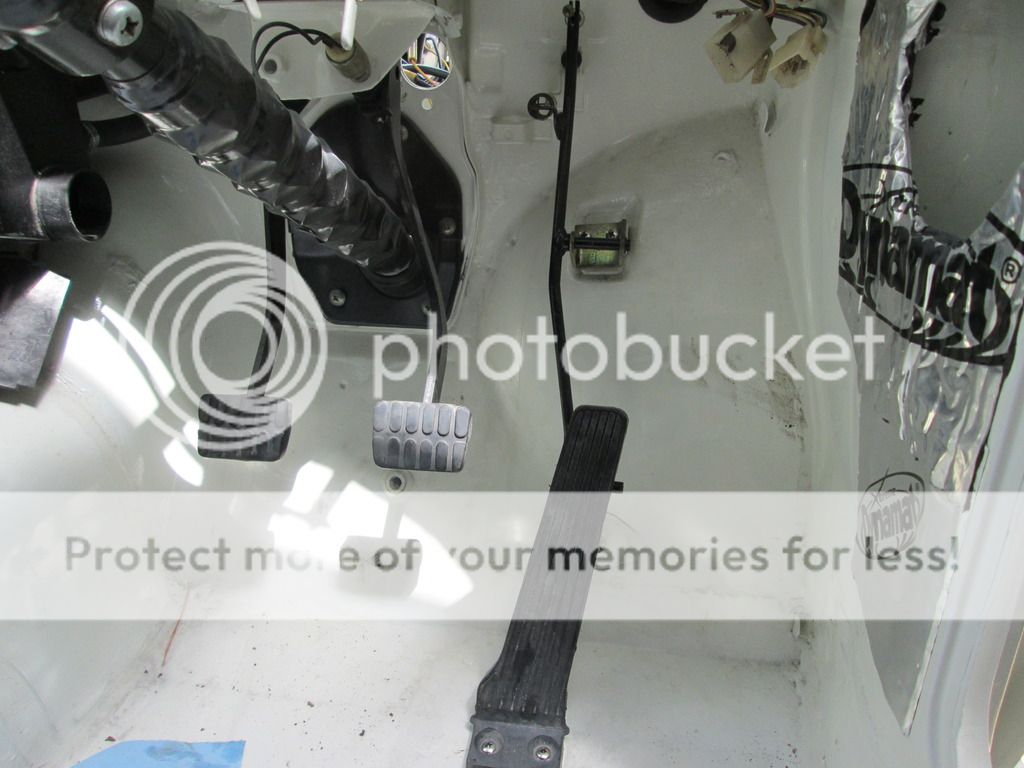

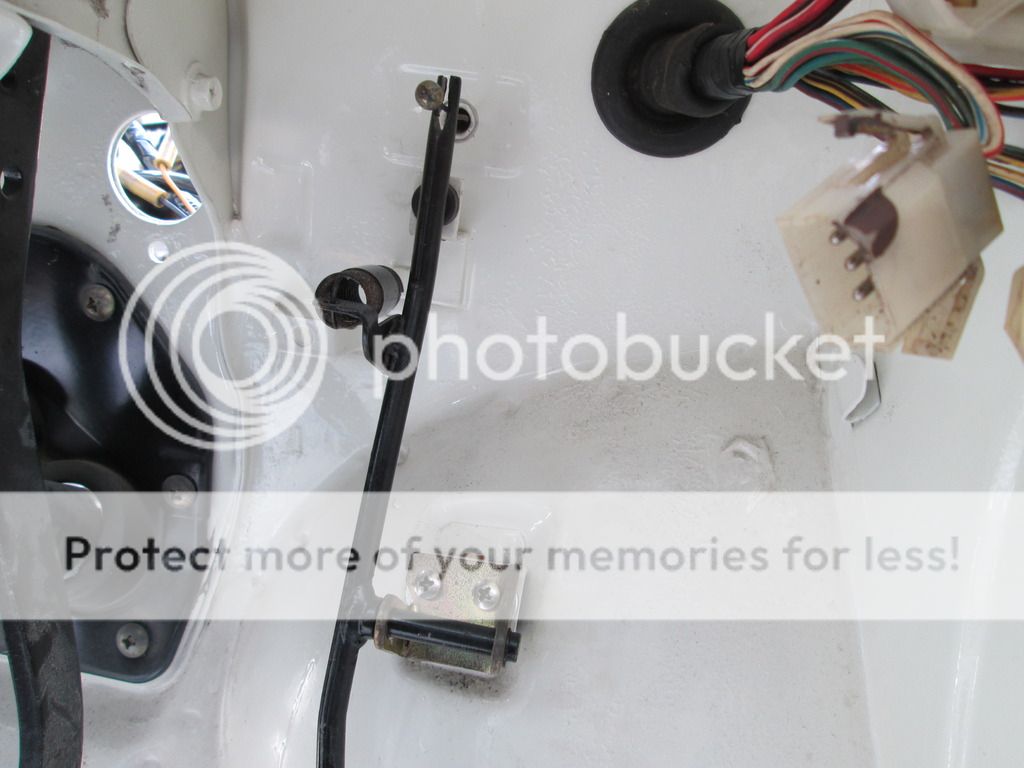

The Arm is similar to LHD, but has no pedal welded on, and the spring is in a different spot.

25880.jpgAlbum click to view 25881.jpgAlbum click to view 5227.jpgAlbum click to view th_IMG_0611.jpg th_IMG_0610.jpg 174_508e0003f17c0.jpgUpload click to view

Part Numbers

See main article: Engine Control Part Numbers
18010-H1010 ARM-COMP,accelerator pedal AUTOMATIC
* includes:
  18100-H1010 ARM ASS'Y,accelerator pedal AUTO
  18021-H1000 BRACKET-ACCELERATOR PEDAL
  SNAP RING
 18010-H1000 LEVER ASSY-PEDAL [MANUAL]
 * includes
   18215-27700 SPRING-PEDAL ROD
   18135-14800 BUMPER-ACCELERATOR
   18021-H1000 BRACKET-PEDAL LEVER
   08310-51014 SCREW
   18137-10600 RING-SNAP
18110-H1000 PEDAL-ACCELERATOR [foot rest]
* 08310-51214 SCREW (2)
* fixing pedal stopper
  08360-63512 SCREW
  08911-30610 NUT
08360-63512 SCREW
  36 Machine screw, Hexagon head
    06 size M6
       35 mm long
21944.jpgAlbum click to view

Left-Hand Drive

LHD 1200s use the modern-style suspended throttle pedal. B210 RHD looks similar but is straight (B110 has a dogleg bend above the pivot).

Center-hung pedal assembly
25879.jpgAlbum click to view 25875.jpgAlbum click to view 8197.jpgAlbum click to view

Pedal stopper
25876.jpgAlbum click to view 25877.jpgAlbum click to view

Pedal bumper (just below Throttle Cable clip)
25878.jpgAlbum click to view

Part Numbers

18010-H1902 COMP-ARM ACCELERATOR PEDAL AUTOMATIC
18100-H1602 ASSY-ARM ACCELERATOR PEDAL AUTO
18010-H1602 COMP-ARM ACCELERATOR PEDAL MANUAL
18100-H1902 ASSY-ARM ACCELERATOR PEDAL MANUAL
Above assemblies include:
* 18017-H1600 PAD-ACCELERATOR PEDAL
* 18021-H1600 BRACKET-ACCELERATOR PEDAL
* 18215-H1601 SPRING-RETURN ACCELERATOR
* 18137-10600 RING-SNAP E TYPE
* 08310-S1614 SCREW-MACHINE M5 FOR BRACKET TO BODY FIX
* 18135-14800 BUMPER-ACCELERATOR PEDAL STOPPER
* 18056-H1600 BOLT-PEDAL STOPPER

Automatic Transmission

21635.jpgAlbum click to view

Part Numbers

See Engine Control Part Numbers
