#Grille Center Ornament #Grille Left Side Badge (trim badge)
Contents |
Center Ornament
1970-1971 Center Ornament S (JDM) #62312-H1026 D (export) #62312-H1626
#1972 Center Ornament
Early Center Ornament
Early grille center badge * 1970-1973 B110 Sedan & Van (wagon) * 1971-1978 B120 Truck (ute)
#62312-H1626 ('D') #62312-H1026 ('S')
Fixing ornament (2 of each needed) * 08915-43410 WASHER-PLAIN M4 * 08915-13410 WASHER-LOCK M4 * 08911-10410 NUT M4
62312-H1026 'S' Ornament
62312-H1026 SET-ORNAMENT, radiator grille
62312-H1626 'D' Ornament
62312-H1626 SET-ORNAMENT, RADIATOR GRILLE SEDAN
1972 Center Ornament
62312-H3125 ORNAMENT KIT-radiator grille [1972 JDM intricate "S" emblem]
Paint color: some look Red, some Yellow, some in-between, but all have the 62312-H3100 cast number.
It is a plastic casting. This one has all the chrome finish worn off
62312-H3100 cast mark
08915-43410 WASHER-plain M4 08915-13410 WASHER-lock M4 08911-10410 NUT M4
fitted to Sedan facelift grille
retrofitted to early grille
Grille Left Side Badge
On the left side of the grille is placed the trim badge
Standard [no badge] Deluxe [no badge] Deluxe 1972 #62330-H3125 GL #62330-H2026 GL 1972 #62330-H3325 GX #62330-H2325 GX 1972 #62330-H3425
62330-H2325 Early GX
GX early (1970-1971) COUPE, SEDAN grille badge [thin]
compare to thick #1970-1971 badge
grille badge has long studs for mounting through the grille
Compare to REAR see-through badge with which has flush-mount pins
Bracket: U-shape
Bracket: L-shape
Bracket: with gasket
Bracket Missing: If the mounting bracket is lost, a length of plumbers tape will do the job (metal strapping tape)
with missing studs
GX flat badge
This modern GX badge has no pins. It has a design like the early GX front trim badge (with the same black background) but is designed for stick-on applications so won't easily fit the 1200 sedan or coupe grilles. Has sticky tape on the flat back of the emblem.

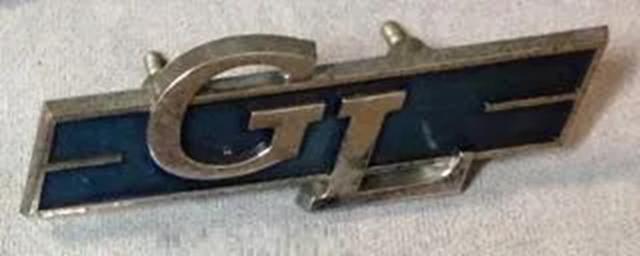

62330-H2026 Early GL
62330-H2026 EMBLEM-'GL' (1970-1971). Used by #sedan and coupe
background-color: blue, but the paint has usually disappeared after 30 to 50 years in the weather
bolt-on type (rear GL badge looks similar, but is the push-in type)
M4 studs, nuts and washers
62330-H3125 1972 Deluxe
NOTE: 1970-1971 DX did not come with a trim badge on the grille
EMBLEM SET-radiator grille "DELUXE" [1972]
compare to rear badge 84823-H1000
62330-H3425 1972 GX
GX 1972 62330-H3425 EMBLEM SET-radiator grille "GX" SEDAN, COUPE [thick]
Grille 'GX' has long bolts and a bracket, in order bolt it to the grill. The similar rear 'GX' badge has short pins.
Late badge is thick and has compressed font (approximately 71mm wide)
compare to early 1970-1971 'GX' thin grille emblem
compare to rear see-through badge (short pins) and ~100mm wide
Long bolts for the grille badge
comes with a clamp plate
#Early GL and Late GX
62330-H3325 1972 GL
GL 1972 - 62330-H3325 EMBLEM SET-radiator grille "GL" (1972 sedan, coupe)
compare to EARLY rectangular GL badge #62330-H2026

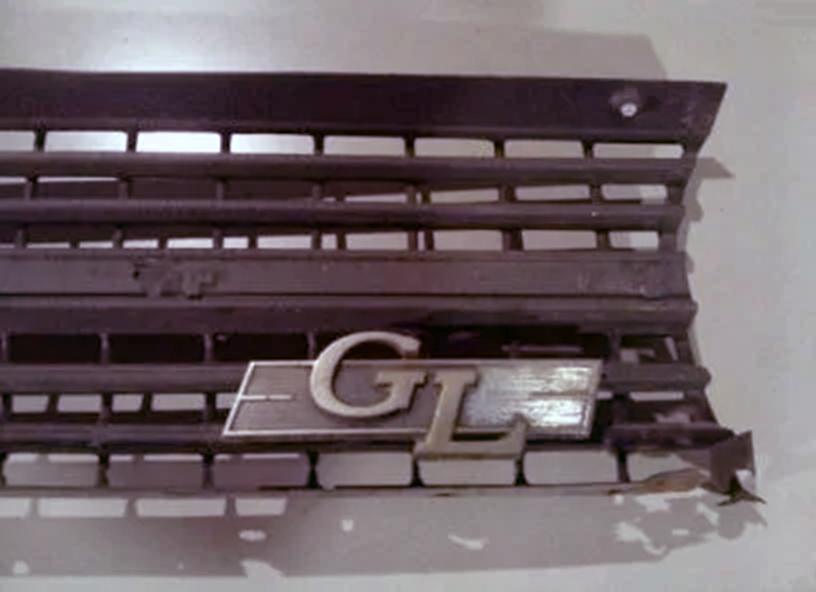

factory placement on 1972 sedan grille
placement on Coupe Grille
Grille badge has long studs for mounting through the grille with cast mark "62330-H3300"

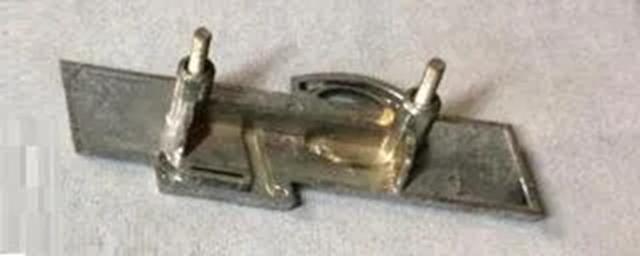

Backing plate is either simple flat or the stronger ridged type
original white paint | with paint faded away
Custom-painted red
62330-H7225 GX 5 SPEED
The 1972-only GX5 came with this badge, used on both sedan and coupe
