sedan fuel tank
Moderator
Joined:
2001/5/3 7:04
From Hawaii, USA
Group:
Registered Users
Contentmaster
Usermaster
Posts: 30815
Offline
pretty basic really. B210/120Y is very similar except the gauge is on the top right (B110 gauge is in top center)

There were three tanks:
* early un-vented tank (early tanks vented only through the filler hose)
* improved vented tank
* EVAPO tank used in North America

We don't have many photos of the sedan tank, so here goes...

Posted on: 2018/6/28 9:30
Transfer the post to other applications Transfer


Improved sedan fuel tank
Moderator
Joined:
2001/5/3 7:04
From Hawaii, USA
Group:
Registered Users
Contentmaster
Usermaster
Posts: 30815
Offline
Improved sedan fuel tank -- the vented tank. Originally this was the PB110 tank, and was soon put in all B110 sedans

Attach file:

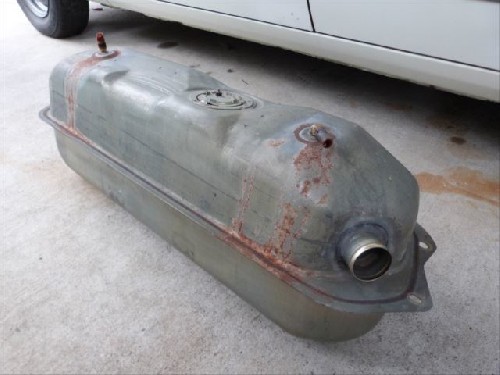

jpg  sedan fuel tank rear view 17201-H2800.jpg (38.01 KB)
174_5b349e013a668.jpg 640X480 px

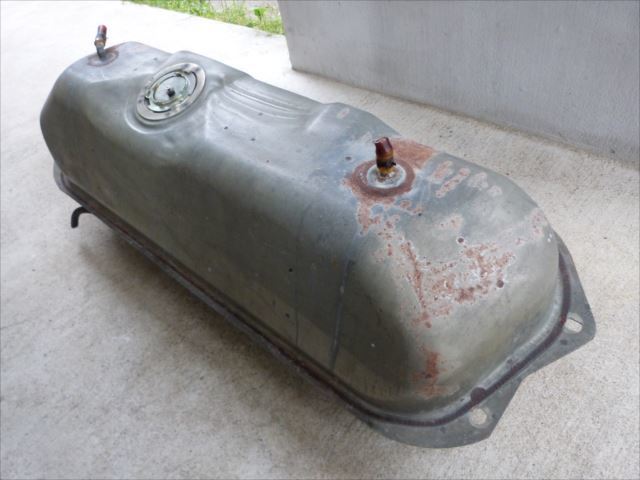

jpg  front view with outlet at bottom.jpg (37.65 KB)
174_5b349e1caf590.jpg 640X480 px

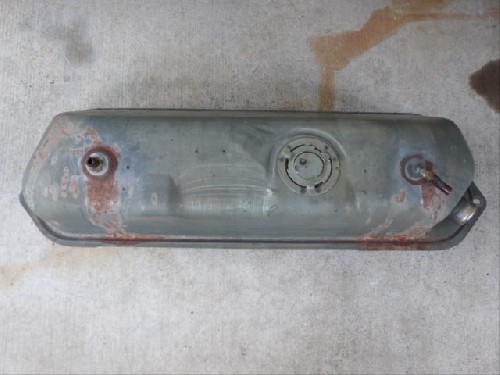

jpg  top view - vent, gauge, filler vent.jpg (38.95 KB)
174_5b349e369ce2f.jpg 640X480 px

jpg  bottom view.jpg (36.07 KB)
174_5b349e4ce6bf5.jpg 640X480 px

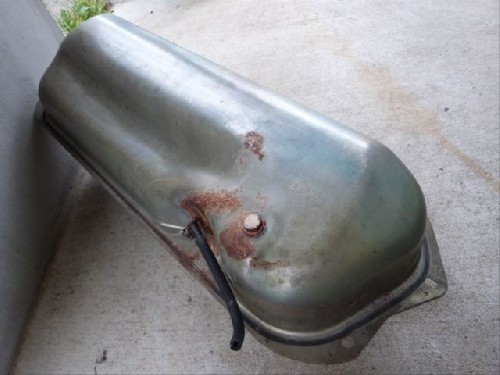

jpg  bottom view - outlet hose.jpg (36.90 KB)
174_5b349e59c453a.jpg 640X480 px

jpg  bottom view - drain plug.jpg (34.35 KB)
174_5b349e640f27f.jpg 640X480 px

jpg  25060-H1900 GAUGE-fuel tank + 17343-14801 PLATE-lock.jpg (65.63 KB)
174_5b349e8c2d883.jpg 640X480 px

Posted on: 2018/6/28 9:38
Transfer the post to other applications Transfer


Re: sedan fuel tank
Moderator
Joined:
2001/5/3 7:04
From Hawaii, USA
Group:
Registered Users
Contentmaster
Usermaster
Posts: 30815
Offline
Here's how pigdog added an in-tank pump from an R33

A return line can be added the same way, by bolting on new line fittings

http://datsun1200.com/modules/myalbum/photo.php?lid=18811
Open in new window

Open in new window

Posted on: 2018/6/29 22:49
