Quick question if i may .
What does the fuel pickup look like in a ute fuel tank ?
We are having troubles with fuel starvation in constant radius corners and think this pickup may be the problem
Thanks

Posted on: 10/23 9:33
Transfer the post to other applications Transfer


Re: FUEL PICKUP
Moderator
Joined:
2001/5/3 7:04
From Hawaii, USA
Group:
Registered Users
Contentmaster
Usermaster
Posts: 30804
Offline

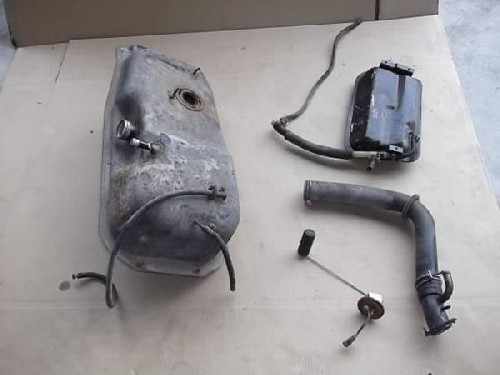

ute fuel tank and pickup looks like this

NOTE: 1970s ute doesn't have the expansion tank
Open in new window


Open in new window


Open in new window

Attach file:



jpg  B122_fuel_a.jpg (23.76 KB)
174_5db015e41e70b.jpg 600X450 px

jpg  B122_fuel_b.jpg (25.34 KB)
174_5db015eee5e4d.jpg 600X450 px

jpg  B122_fuel_c.jpg (17.60 KB)
174_5db015f80450e.jpg 600X450 px

jpg  sender_a.jpg (17.37 KB)
174_5db016034ccbf.jpg 600X450 px

jpg  sender_b.jpg (16.82 KB)
174_5db0160accb44.jpg 600X450 px

jpg  sender_c.jpg (23.10 KB)
174_5db01615acfba.jpg 600X450 px

Posted on: 10/23 9:59
Transfer the post to other applications Transfer


Re: FUEL PICKUP
Moderator
Joined:
2001/5/3 7:04
From Hawaii, USA
Group:
Registered Users
Contentmaster
Usermaster
Posts: 30804
Offline
sorry got carried away there. the sender is not part of the fuel pickup

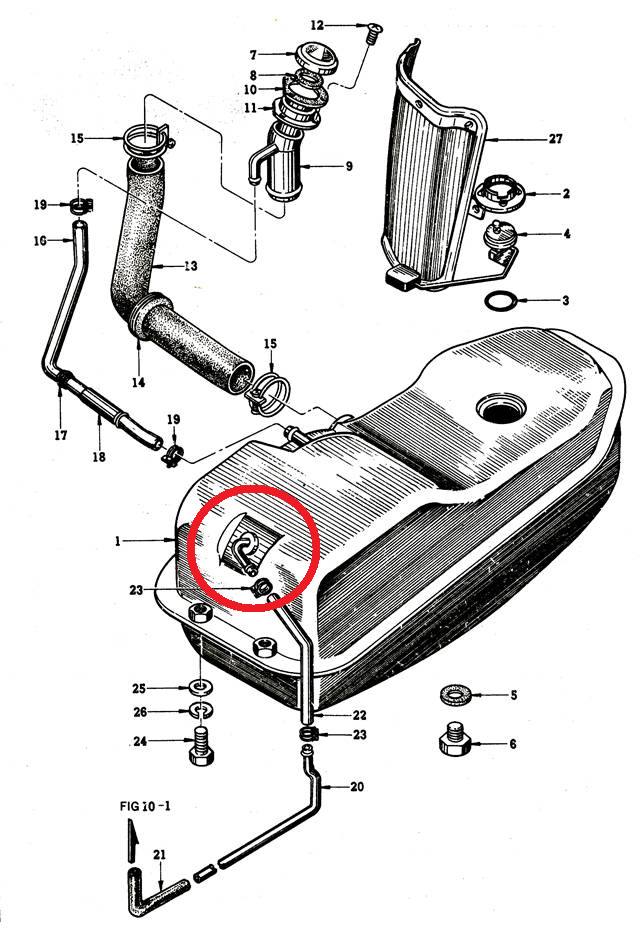

This is the fuel tank before April 1978. Fuel line is circled in red. Has anyone cut one of these apart to show the baffling and inside of the fuel line pickup?

Attach file:



jpg  174_5a67b2d182c96.jpg (97.01 KB)
174_5db01bc7dac08.jpg 640X928 px

Posted on: 10/23 10:21
Transfer the post to other applications Transfer


Re: FUEL PICKUP
Moderator
Joined:
2001/5/3 7:04
From Hawaii, USA
Group:
Registered Users
Contentmaster
Usermaster
Posts: 30804
Offline
Quote:
What does the fuel pickup look like in a ute fuel tank ?
Found this blog, he says there is no baffle in the tank (I'm surprised because the 1200 sedan tank is baffled). He built a swinging-door baffle for it
