Fitting RX7 calipers to 1200/120Y struts
Moderator
Joined:
2001/5/3 7:04
From Hawaii, USA
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31104
Offline
RX7 calipers may fit under a 13" wheel when used with the 120Y disc rotor, but doesn't RX7 rotor+caliper requires a 15" wheel? I seem to recall the Maddat kit needed 15s.

The nice thing is that some RX7 calipers are light alloy.

RX7 FC is 1985-1991
* S4 1985-1988
* S5 1989-1991

Open in new window


S4 calipers come in two kinds:
* 4-piston (for 5-lug rotors)
* single piston floating (for 4-lug rotors)

Attach file:



jpg  141_45082_View1.jpg (88.22 KB)
174_565eb7edc3a95.jpg 600X600 px

jpg  14145036.jpg (62.85 KB)
174_565eb7f6c06a7.jpg 450X450 px

Posted on: 2015/12/2 9:20
Transfer the post to other applications Transfer


Re: Fitting RX7 calipers to 1200/120Y struts
Moderator
Joined:
2001/5/3 7:04
From Hawaii, USA
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31104
Offline
To fit the S4 four pot to Datsun struts is simple:

Open in new window


The spacing for 120Y struts is slightly different from the 810 struts in this photo, but both are much narrower than the RX7 caliper bolt spacing. So a similar bracket can be fabricated. The next questions are 1) how far to space the caliper up and 2) how far to space it out/in (how thick is the adapter). The answer depends on which rotor you use.

Posted on: 2015/12/2 9:23
Transfer the post to other applications Transfer


Re: Fitting RX7 calipers to 1200/120Y struts
No life (a.k.a. DattoMaster)
Joined:
2008/6/15 9:11
From Melbourne
Group:
Registered Users
Posts: 4501
Offline
This is my setup and they fit in 15's they may fit in some 14's but I don't think they will fit in 13's


Open in new window

Posted on: 2015/12/2 10:15
_________________
Car free
Transfer the post to other applications Transfer


Re: Fitting RX7 calipers to 1200/120Y struts
Home away from home
Joined:
2011/4/15 3:17
From Melbourne
Group:
Registered Users
Posts: 671
Offline
I've got the 4pot calipers.I thought r33 alloy 4 pots were light until i picked up the rx7 calipers

Supafatto, That picture says alot...

Quote:
The next questions are 1) how far to space the caliper up and 2) how far to space it out/in (how thick is the adapter). The answer depends on which rotor you use.


Very true.Im thinking under 270mm disk?

I think it might have to do with the design of the bracket and maybe rim choice.Ive read of people fitting r32 calipers under 13s?
I wouldn't mind getting the calipers abit shaved off to fit..

When i compare them side to side with nismo mk63 calipers they are very similar in size.So why the nismo calipers can fit under 13s and the rx7 ones can't seem odd.

Posted on: 2015/12/2 10:26
Transfer the post to other applications Transfer


Re: Fitting RX7 calipers to 1200/120Y struts
No life (a.k.a. DattoMaster)
Joined:
2008/6/15 9:11
From Melbourne
Group:
Registered Users
Posts: 4501
Offline
Your welcome to come look at offsets ect I have some stuff here we can play with, I'm only local to you. I just don't have my car currently here as its getting tuned. But welcome to come try on some struts and we can try sort something

Posted on: 2015/12/2 10:36
_________________
Car free
Transfer the post to other applications Transfer


Re: Fitting RX7 calipers to 1200/120Y struts
Home away from home
Joined:
2011/4/15 3:17
From Melbourne
Group:
Registered Users
Posts: 671
Offline
Thank heaps mate.Really appreciate your offer.
as soon as i get the car resprayed and a roadworthy, i will pm you and come see what we can do.
Thanks mate

Posted on: 2015/12/2 10:41
Transfer the post to other applications Transfer


Re: Fitting RX7 calipers to 1200/120Y struts
Moderator
Joined:
2001/5/3 7:04
From Hawaii, USA
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31104
Offline
The RX7 caliper will fit under 13" wheel. The RX7 276 mm disc rotor won't fit with 13" wheel.

For example, fit the 4-pot caliper to the 212 mm 120Y rotor. It will require a different kind of mounting to get the caliper fitted that close to the spindle, perhaps a ring mount. Brake pad spacers can be used with thinner rotors.

You can fit the RX7 caliper with 252 mm rotor under some 13" wheels (but not all 13" wheels). 252 rotor comes with 280ZX. Or with 250 mm rotor from S13. You can notch the caliper to get it that close to the spindle, 4-pot caliper can be ground a long way to get it close.

Posted on: 2015/12/3 1:39

Edited by ddgonzal on 2015/12/3 2:04:30
Transfer the post to other applications Transfer


Re: Fitting RX7 calipers to 1200/120Y struts
Moderator
Joined:
2001/5/3 7:04
From Hawaii, USA
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31104
Offline
Quote:
why the nismo calipers can fit under 13s and the rx7 ones can't seem odd.
Nissan 4-pot calipers are more compact.

The RX7 4-pot calipers have a huge mount, so the pistons are high above the mounting ears.

Nismo MK63 calipers mount low
Open in new window


Nissan R32 are similar but mount a litter higher (intended for larger 280 mm discs)
Open in new window

These come in two versions )1 for 26 mm thick R32 rotor, and 2) for 30 mm thick R32 rotor. Brake pad spacers can be used with thinner rotors.

Hilux 4-pots are even more compact, so will fit with small rotors.

Attach file:



jpg  S12+8.jpg (8.55 KB)
174_565fa367b4daf.jpg 300X115 px

Posted on: 2015/12/3 2:05
Transfer the post to other applications Transfer


Re: Fitting RX7 calipers to 1200/120Y struts
Moderator
Joined:
2001/5/3 7:04
From Hawaii, USA
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31104
Offline
Here's another look at WHY the RX-7 caliper need bigger wheels:

Open in new window

CALIPER DISC HEIGHT (Dimension 'E')
* Hilux 63 mm
* RX7-S4 80 mm

Posted on: 2015/12/3 7:44
Transfer the post to other applications Transfer


Re: Fitting RX7 calipers to 1200/120Y struts
Home away from home
Joined:
2011/4/15 3:17
From Melbourne
Group:
Registered Users
Posts: 671
Offline
yes i see..

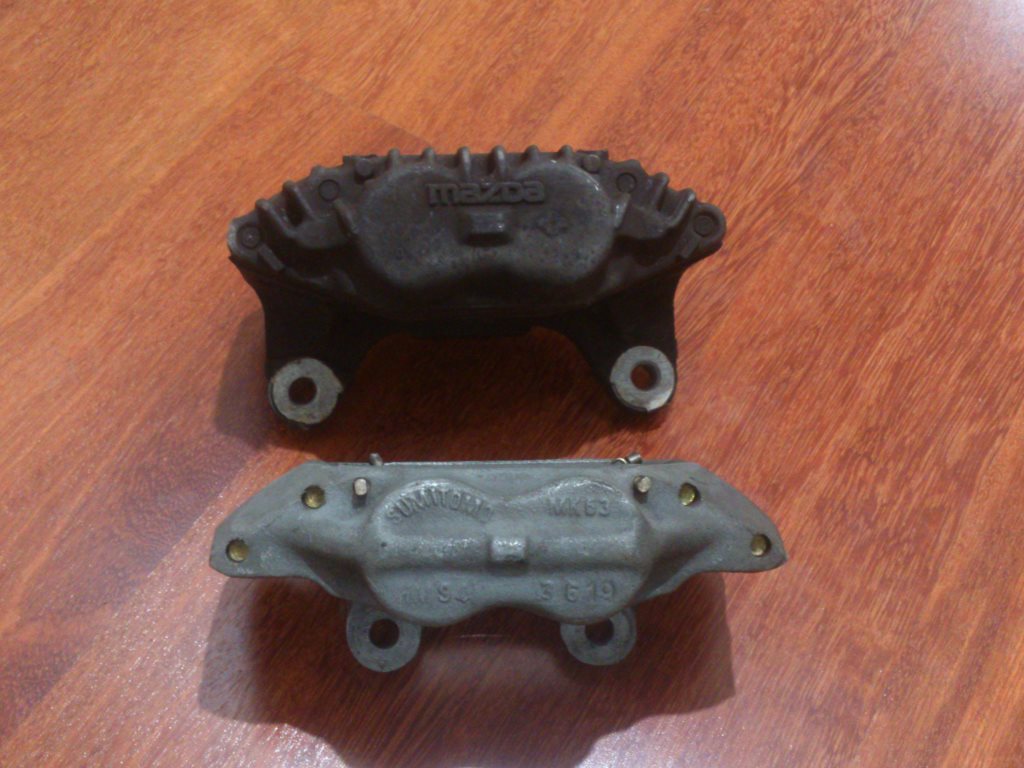

Some comparison shots between nismo mk63s and rx7 series 4/5 calipers.
But will still try to fit the rx7 calipers under 13s if possible.

Attach file:



jpg  DSC_0028.jpg (119.79 KB)
15239_567b973ff1679.jpg 1024X768 px

jpg  DSC_0029.jpg (120.44 KB)
15239_567b974b93582.jpg 1024X768 px

jpg  DSC_0030.jpg (121.83 KB)
15239_567b97552fcee.jpg 1024X768 px

Posted on: 2015/12/24 6:59
Transfer the post to other applications Transfer
