[Datsun 1200 encyclopedia]

Axle Shaft

From Datsun 1200 Club

Datsun 1200 encyclopedia | Recent changes | Edit this page | Page history | Switch to MediaWiki mode

Printable version | Disclaimers | Privacy policy
Category: Rear Axle And Rear Suspension

Datsun 1200 axle shafts come in two sizes: H145 for all cars, and H165 units for all 1200 Trucks. Both are 23-spline axles, although the truck axles are a larger diameter and so they do not interchange.

Contents

Overview

Sectional view of rear axle
19936.jpgAlbum click to view

Axle Shaft Removal

Remove the individual axles from the axle housing (main body).

  1. If replacing one side, jack that side up to prevent oil leakage. Otherwise drain the axle housing.
  2. Unscrew the brake line at the rear of the drum backing plate. Plug the line.
  3. Remove the brake drum, then remove the four bolts that are at the end of the axle tube. They are accessible via the hole in the axle. These will have nylock nuts on the ends.
  4. Pull out the axle. This may come out easily or you may have to jiggle the diff where it connects to the tail shaft to loosen the spline. If all else fails the use a slide hammer and connect it to the axle where the wheel lugs are. You can also put the drum on backwards and lightly attach the lugnuts, then use the drum as a slide hammer.
  5. Remove the seal just inside the axle that sits behind the bearing. Install a new seal upon installation
  6. Mark the axle on back to indicate which side it came from

chain hammer may be needed to extract the side shaft
18772.jpgAlbum click to view

Axle Bearing Removal

To replace the bearing, or to replace the brake backing plates from the axle, you will need a cold chisel, an anvil of some description, and a big hammer.

  1. The bearing retaining collar needs to be removed first
  2. Use the cold chisel and or an angle grinder to cut the retaining collar off – be careful not to damage the axle shaft, unless you plan to replace the shaft.
  3. Use a long bearing puller (or chain of pullers) to remove the bearing.
  4. Alternatively, use a grinder to cut the bearing until it can be knocke d off.
  5. After the collar and bearing are removed there will also be a thin washer to remove, it should just slide off and then the backing plate will slide off

Keep track of the Shims that go between the bearing and the backing plate. They may differ RH axle vs LH axle

Always replace with a new bearing.

Bearing Retainer
19507.jpgAlbum click to view

Axle Bearing Installation

Once the old axle bearing has been removed:

  1. Slide the 1200 thin washer on the axle the same way it came off
  2. Slide the drum backing plate onto the axle – make sure that it is on the right way (shoe mechanism facing out)
  3. Press the bearing back on to the axle
    1. Either get them done professionally (for the cost of a few dollars it will be done right)
    2. Or get a big pipe/tube of the right diameter of the inner race and bash it on without damaging the wheel lugs or the bearing.
    3. Press the retaining collar on to the axle (as above)


The bearing is held on a by a collar (a plain ring). This has to cut off with a cold chisel, then a new one pressed on.

Bearing is retained on by shaft collar
25013.jpgAlbum click to view

When replacing a rear axle bearing, check the wheel bearing-to-housing end face clearance and adjust with shims.
19935.jpgAlbum click to view

Axle Shaft Installation

  1. After fitting the bearing as above, fit a new seal into the axle housing end.
  2. Put the shim in behind the bearing – don’t bend it too much
  3. Insert the axle into the main body. You will need to line up the spline into the diff centre and gently persuade the axle into place
  4. Tighten the 4 fastening bolts
  5. Reassemble the hand brake shoes and mechanisms
  6. Fill the differential oil
  7. Replace brake hard line
  8. Bleed the wheel cylinder

Wheel Seal
19506.jpgAlbum click to view

Wheel Bearing Packing

Re-pack your rear wheel bearings every two years. They are just ball-bearing (not the stronger roller bearings) so need all the help they can get.

Grease needs to be stuffed into the ball bearing.

19504.jpgAlbum click to view

1972 USA Owners manual (Page 34 ... 34):

th_00_cover.jpg   th_34.jpg
every 30 months/30,000 miles: Repack wheel bearing grease

Axle Seal

19506.jpgAlbum click to view 19507.jpgAlbum click to view

Part Numbers

master list
27773.jpgAlbum click to view


Kit with bearing, non-reusable bearing collar and backing plate gasket

Suppliers - USA
* Nissan
* RockAuto differential [drivetrain] parts
* O'reilly Auto

Kit with bearing, collar, spacer, and oil seal
174_5b5ba89b8c99c.jpgPost click for topic

Axle

1200 Sedan/Coupe/Wagon
38162-G0300 ASSY-SHAFT REAR AXLE B110, B210
* length approx., 580mm from the backing plate to the end of the shaft
1200 Truck
38162-G1000 SHAFT ASSY-REAR AXLE B120 7510- with H165 diff
* Also fits PB110 with L14 engine
* Also B210 H165B with L16 engine
B310/210
38162-H8500 SHAFT ASSY-REAR AXLE(L=612) B310

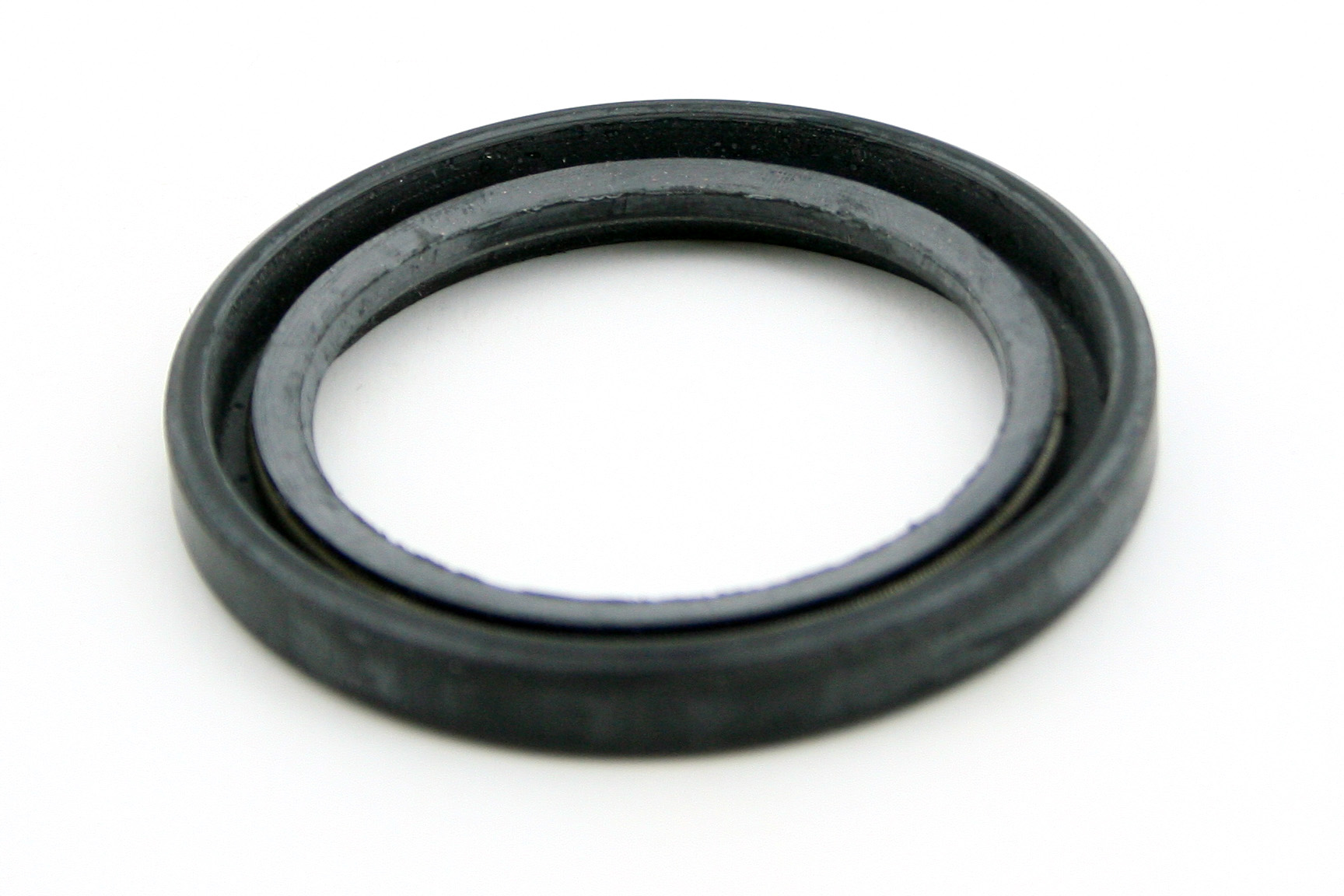

Axle Seal

Datsun 1200 uses the same rear axle/wheel hub seal as Datsun 510. One is required for each side of the car. The same seal is used by H145 (1200 car) and H165 (1200 truck) rear axle assemblies.

Nissan 43252-H1000 SEAL-OIL REAR AXLE SHAFT
* formerly 43252-18000
* alternate manufacturer: 43252-H1010
Nissan catalog
 SEAL-GREASE, REAR HUB 43232
  * 1200 sedan/coupe/wagon/truck
  * Datsun B10 Datsun 1000
  * Datsun 210 1978-1982
  * Datsun 510 1968-1973
  * Datsun 610 1974-1976
  * Datsun 710 1974-1977
  * Datsun 810 1977-1881
  * Datsun B210 1974-1978
  * Datsun A10 1978-1981 (Stanza/510/Violet)
  * Nissan/Datsun 810/910 wagon (810/Maxima/Bluebird)
  * Datsun S10 200SX 1977-1979
  * Datsun S110 200SX 1980-1983
  * Nissan S12 200SX 1984 with CA20E engine
  * S12 CA18S
  * C120/C22/C23 Vanette NOK
  * K30/K30S Crew
  * 910 Bluebird SSS
  * C31/C32 Laurel
  * F30 Leopard
  * R30/R31 Skyline
 SEAL-OIL, SIDE SHAFT (4WD front final drive) 38542P
  * Nissan D21,D21U,D22 Hardbody/Datsun pickups 1986-2000
  * Nissan R50 Pathfinder/Terrano/テラン rear outer
  * Nissan JR50
  * W10 Avenir
  * WD21 テラン
  * Nissan WD21,WD22 "Pathfinder"
  * Nissan E50.4WD/AE50.4WD ElGrand
  * F22.4WD/F23.4WD Atla/Cabstar
Aftermarket
SKF OS550232
Timkin 1181
BECK/ARNLEY 0521583 (052-1583)
Payen NJ036
Masashi N2125
Timkin 1181 Specifications
* For 41.00 mm Shaft
* Housing bore: 56.00
* Seal O.D.: 56.25
* Seal width: 7.00
* Lip material: Nitrile (NBR)
Timkin 1181 cross-reference
* CAUTION: parts listed below may meet lesser specs
* Cam seal, Crank seal, Wheel Hub seal (front), axle seal (rear)
  4WD IRS front final drive side shaft seal
Timkin 1181 41x56x7
Beck/Arnley 052-3605 41x56x8
Beck/Arnley W72173
Beck/Arnley W72231
Nation 1181
GM 12305324/15527580
ITM 1501004
Bap-Geon 1530501/1530505
SKF 16496
SKF 550232
Vera 6501018
Vera 6601000
Victor 66545
Victor 66984
Intlps 775532
Acura 91212P5G-004
Acura 91212PH7-013
Acura 91212PY3-003
Honda 91212PH7-003
Honda 91212PH7-013
Honda 91212PR7-A01
Honda 91212PY2-003
Honda 91212PY3-003
L&S/TROSTL A45556S
Guran/Midas GS1386
Victor JV1054
IAPCO L0020012
Nissan 40232-M0200
Lazorlite L816671
Lazorlite L817376
Payen NJ036 41x56x7 NBR
Payen NJ120 41x56x8
Payen NK023 41x56x8 ACM
Repco P6374
Repco PR6374
Repco 2116374

Collar

A new retaining collar is required when replacing the bearing. The retainer is cut in two to release the bearing, and the new collar pressed on.

26303.jpgAlbum click to view

Nissan 43255-H1000 COLLAR-REAR AXLE BEARING
* supercedes 43255-18000
Beck Arnley 0530014 $4 Rockauto
National R114 $2.49 USD RockAuto.com
H145 & H150
* 41.0 x 31.7 x 21.0 wide mm
NOTE: BW axles - see BW60#Wheel Bearings
* 46 x 29.85 x 8 mm
H165 (1200 ute)
* R32J 32mm

bearing kits often come with the collar

Spacer

A spacer is installed outboard of the bearing.

43070-H5000 SPACER-rear axle bearing
* replaces 43070-04101 (up to '72-11)
For H145 and H150

Buy at Bprojects

Buy at USA Nissan Dealer

Dimensions
* ID 32mm
* OD 46mm/41.5mm(stepped section)
* Width 4mm
Interchange
* 1979-1981 S110 H165
* 1980-1981 810
* Caravan
* Vanette

174_5b5ba816b27a7.jpgPost click for topic 174_5b5ba82918d2d.jpgPost click for topic 174_5b5ba840455d8.jpgPost click for topic 174_5b5ba86b8d912.jpgPost click for topic

Axle Bearing

Suppliers: National, Nachi, NSK, NTN, SKF, Timken, etc
LOCALLY assembled BW Type, see Borg Warner Differential#Wheel Bearings
60 x 30 mm
62 x 30 mm
SMALL TYPE 115
Outer diameter: 62 mm
Inner diameter: 30 mm
width: 16 mm
* B10 Datsun 1000 sedan,coupe
* B110 Datsun 1200 sedan,coupe to Nov 1972
LARGE TYPE 114
* Nissan 43215-H5000
Outer diameter: 72 mm
Inner diameter: 32 mm
Width: 19 mm (40 mm including spacer)
* VB10 Datsun 1000 Wagon
* B120 Datsun Truck with H165
* 1973 Datsun 1200 (from Dec 1972)
* 1974 Datsun B210 with H145
* 1975-1978 Datsun B210 with H150
* 1979-1982 Datsun B310 with H150

H145

  • SMALL TYPE: 1967-1972 H145 sedan, coupe
  • LARGE TYPE: 1967-1974 H145 wagon
             1973 late sedan, coupe

Sedan, Coupe

43215-18000 same as Datsun 410/411 and Datsun Roadster

VENDOR: Bprojects Product: 43215-18000☁ for early 1200 sedan/coupe with H145 axle

NOTE: H145 from December 1972 uses the larger H150-style bearing
1970-1972 B110 Type 6206-special bore size (not 6206 standard)
* 43215-18000 B110 -1172 sedan,coupe
* 43215-H5000 B110 1272- sedan,coupe - see #larger H150 size
Nissan 43215-18000 BEARING-REAR AXLE SEDAN, COUPE NLA
* SKF GRW115R
* KOYO 83294C4
* KOYO 83294-C4GA2
* 83294-C4GA2 NSK+B32-3CC5
* NSK B32-3AC5
* NTN 6206BC4-B32
* NTN 6206BLUX/32C4 $28 USD
Specs:
* O.D.: 62 mm
* Bore: 32 mm
* Width: 16 mm

NOTE: Measure bearings before buying replacement. Over the past 40 years, the axle housing may have been swapped. Early and Late 1200s use different size bearing.

NOTE 2: The standard 6206 bearing has a bore size of 30mm. The 6206 bearing with a 32mm bore is called a "special bore size" bearing. For example: one NSK bearing 6206 (id is too small for axle) and 32 mm (correct inner diameter).

Interchange:
* 1967-1970 Datsun B10 (180 is B10 part number)
  NOTE: VB10 (1000 van/wagon) uses larger 72mm bearings
* 1970-1973 Datsun B110
replaces Nissan 43215-08000
* Datsun 410/411 Bluebird
* Datsun SP311/SPL311 Roadster 1600
* Datsun SR311/SRL311 Roadster 2000
62 x 32 x 16 mm
Special Bore Size Type 6206
POST evanp photo of Federal Mogul Bower|BCA RW 115-R
Box has been marked with "G" to match the SKF part number GRW115R
These eBay specials came with two differing collars (see POST Wheel bearing data)
174_6182339e671d0.jpgPost click for topic
BCA RW 115-R
prefix RW means "Rear wheel bearing with variation of basic design"
suffix R means "Locking collar supplied with rear wheel types"

At one time Bower and BCA were both owned by Federal-Mogul. Since 1996, BCA Bearings has been owned by NTN/Toyo

archive: 6206BLUX/32C4 from Bprojects

Wagon

Nissan 43215-H5000 VB210 wagon
replaced 43215-22500 BEARING-REAR AXLE VAN VB10, VB110
* same as used in H150, except non-sealed
Sealed
* B210
Non-sealed
* Datsun 1000 wagon
* Datsun 1200 wagon

1973 H145

Late 1973 1200s (but not early 1973) and 1974 B210 are fitted with H145, but use the larger H150-style bearings. Otherwise identical to the early B110 small-bearing axle housing.

H150/H165

RockAuto Axle Shaft Bearing
RockAuto Wheel Bearing
43215-H5000 BEARING-REAR AXLE, OUTER B120, B210 H150
* replaced 43215-22500
* Same as VB10 (43215-22500)
OEM
* SKF GRW114R
* Beck/Arnley 0513202
* National RW114R
* Timken RW114R
* Bendix WBK02250
* Centric 411.42002

rockauto
Centric 411.42002 - Bearing and #Collar. It incorrectly says "Spacer" but the #Spacer is only 4mm thick
174_617f39e0721a0.jpgPost click for topic

Specs
* Bore 32mm (1.2598")
* Outer Diameter 72mm (2.8346")
* Width 19mm (0.748")
* Sealed both sides
* Single row ball bearing
Applications:
* VB10 Datsun 1000 Wagon
* 1971- Datsun B120 Truck with H165
* 1973 Datsun 1200 (from Dec 1972)
* 1974 Datsun B210 with H145
* 1975-1978 Datsun B210 with H150
* 1979-1982 Datsun B310 with H150
* Nissan Vannete III 1995-
* Nissan C23 Serena 1993-2001
* C22 Nomad
* Datsun 710/Nissan Violet
* Nissan LR50 Terrano R200A front drive unit side bearing
* 910 Bluebird
* C230 Laurel
* Z31 300ZX
* S110 Silvia/200SX
* S12 Silvia/Gazelle/200SX
* 43215-45000, 43215-52L60
* Datsun 810/180B 1977-1981

Kit for B120

  • NTN 6306.BLLUX/32.C4/5AQ5 sealed both sides
  • 400413N Oil seal 41x56x7mm
  • R32J 32mm Retainer

NTN 6306BLLUX
27202.jpgAlbum click to view

Size Comparison

Large H190 (620 truck) vs Medium-size H165 (1200 ute) axle
3621.jpgAlbum click to view
H145 (Datsun 1200 car) axles are smaller diameter yet

Works 240RS axle (H190?)
5633.jpgAlbum click to view

アクスル

¤
