The steering column shell finishes the steering column, covering the turn signal switch and provides a mounting surface for the Hazards switch.

1 Overview
2 RHD
3 LHD
4 B120

[edit]

Overview

NOTE: The same shell molding is finished for either a 32mm or 26.5mm steering column shaft

H1015 D32⌀
H1010 D26.5⌀

Album 30395

The covers encloses the hazards switch and the turn signal switch. It does not cover the steering lock and key lock.
Album 19664

The two halves of the shell are fastened together with three screws. The slotted hole is for the column-fixing screw.
Album 2142

48470-H1010 COVER SET-STEERING COLUMN [cut for 25.6 mm diameter shaft]

Album 25707

[edit]

RHD

* 48471-H1150 SET-SHELL,steering 3-speed
* 48471-H1170 SET-SHELL,steering 4-speed
08530-42012 SCREW 3
08540-41212 SCREW

column shift (3-speed) with Hazard & Parking Switch
Album 15130 Album 2760

[edit]

LHD

USA: Hazard switch only
Album 2136

* 48470-H4650 SET-SHELL STEERING WITHOUT PARK LIGHT S 1 EXC OKINAWA 0172- < 48471-H1950 $23.68
* 48471-H1950 SET-SHELL STEERING WITHOUT PARK LIGHT S 1 4 SPEED < 48471-H1650
* 48471-H1650 SET-SHELL STEERING 1 4 SPEED AUTO
* 08530-42012 SCREW-TAPPING M4 3 [Tapping screw, Oval head]
* 08330-41410 SCREW-MACHINE M4 1 [Machine screw, Oval head]

[edit]

B120

Early (Black)

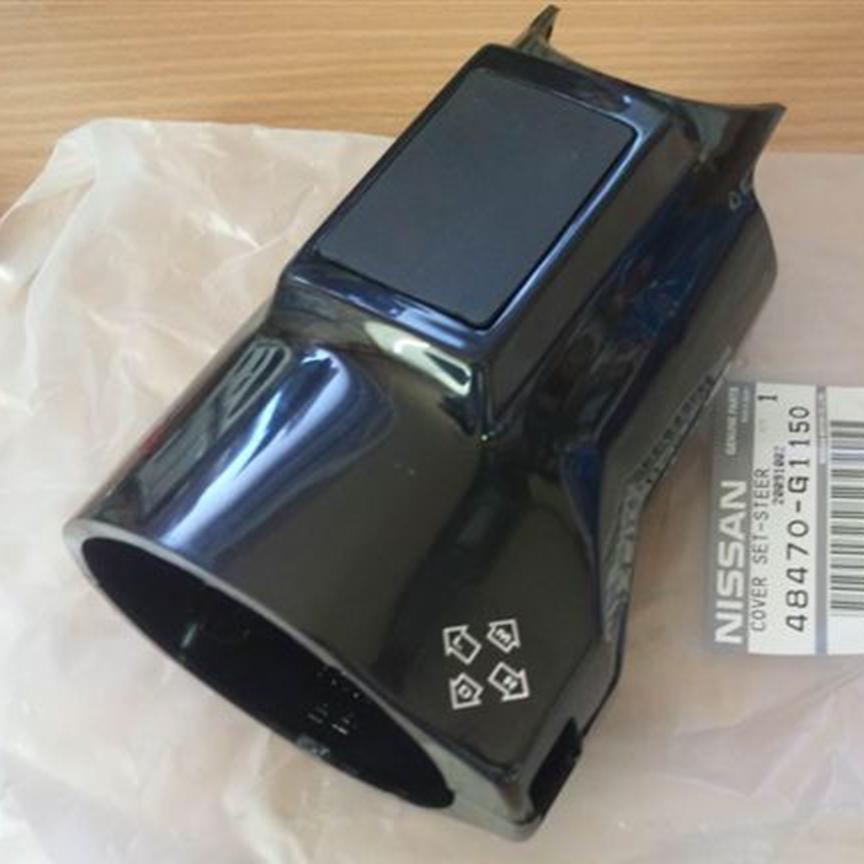

* 48470-G1150 COVER SET-STEERING COLUMN [Black] 7510-7803
* 48477-C0400 PLATE-CAUTION

Facelift (Dark Brown)
* 48472-G1160 COVER STEERING COLUMN DARK BROWN LOWER 7804-8910
* 48471-G1160 COVER STEERING COLUMN DARK BROWN UPPER W/LABEL 7804-8608
* 48471-G1900 COVER STEERING COLUMN DARK BROWN UPPER 8608-8910
* 48474-G1270 PLUG-SHIFT LEVER 8608-8910
* 96920-89900 PLATE-CAUTION 8110-8306
* 96920-89910 PLATE-CAUTION 8307-8910

Late Model (Gray)
* 48471-95W00 COVER-STEERING COLUMN GRAY UPPER 8910-
* 48472-95W00 COVER-STEERING COLUMN GRAY LOWER 8910-
* 48470-H1015 COVER SET-STEERING COLUMN
* 48474-95W00 PLUG-SHIFT LEVER 8910-
* 48477-C0400 [99072] PLATE-CAUTION 8910-

Hardware
* 08540-41212 [54=Tapping Screw, truss head
  04 mm diameter,12mm length] 10mm diameter head
* 08530-42012 [53=Tapping Screw, oval head
  04 mm diameter,20mm length] 8mm diameter head

NOTE: It seems the Nissan Catalog has the last two reversed. You need three of the 20mm oval head and one of the 12mm truss head. The 12mm fixes the Cover to the Column. The other three hold the two halves together. The slotted hole in the bottom shell is for the fixing screw.
