Ventilation

From Datsun 1200 Club

Datsun 1200 encyclopedia | Recent changes | Edit this page | Page history | Switch to MediaWiki mode

Printable version | Disclaimers | Privacy policy
Categories: Body | Heating And Ventilation Systems

The fresh-air ventilation system of Datsun 1200 allows for fresh air even with all windows rolled up.

Contents

Usage

1972 USA Owners manual

Page 17   Page 18
th_17.jpg   th_18.jpg
fresh air in any weather
Also see:
* Heater
* Wing Window

No-heater models

Ventilation for models originally equipped with No Heater.

1972 USA Owners manual (Page 19 ... ):

th_00_cover.jpg   th_19.jpg
The valve has only three positions: CLOSE, HALF OPEN and FULLY OPEN

Ventilation Flow

  • Coupe: air flows out through the side chrome grilles
  • Sedan: air flows out through the slots in the C-pillar
  • Truck: air flows out through the finisher in the rear pillar

20366.jpgAlbum click to view

Inlet: In the Datsun 1200 passenger compartment ventilation system, air is drawn from:

  1. the air intake on the cowl top, and
  2. ventilator (quarter window) on the front door.

Outlet: This air is exhausted from the slip shape air outlets on the rear pillar (coupe air outlets are under the chrome side vents). Thus, the body is ventilated sufficiently -- even with all the windows rolled up.

20367.jpgAlbum click to view
  • The baffle causes water to run past the cabin air intake.
  • Carefully tighten the ABS plastic grille, not very tight, so that you do not crack the plastic.

Diagram of body cabin air flow
20368.jpgAlbum click to view

Coupe

Coupe side vents cover the cabin airflow openings just aft of the doors. This allows positive ventilation of the passenger compartments, and the air exits at the vents.

Coupe DX vent - see Japan_Brochures#Coupe
17784.jpgAlbum click to view 174_5ca8835629652.jpgPost click for topic

GL and GX Coupe vent trim
20512.jpgAlbum click to view 174_57932ae81ab25.jpgPost click for topic

78843-H2225 GRILLE AIR OUTLET upper COUPE
78844-H2225 GRILLE AIR OUTLET lower COUPE

7563.jpgAlbum click to view

The only body air exit is on the leading edge of vent.
174_5ca882f7dd9ea.jpgPost click for topic 17803.jpgAlbum click to view

Lower & Upper side ducts -- two each. Fastens by means of two nuts and a push-on clip for the 3rd post
174_5ca8838933cbc.jpgPost click for topic 174_5ca883953f0d0.jpgPost click for topic

PB110 Sunny Excellent 1400
24168.jpgAlbum click to view

PB110
78843-H2525 GRILLE SET-air outlet, upper Coupe
78844-H2525 GRILLE SET-air outlet, upper Coupe

Custom by LOWTECH

Pickup

As in all 1200s, the pickup air inlet is at the Cowl baffles. The cabin ventilation exits on the B-pillar under the plastic/chrome side vent finishers.

22652.jpgAlbum click to view 0504165A30160114W00127.jpg

  • 76850-G1001 FINISHER-REAR PILLAR, RH -7803 [gray?]
  • 76851-G1001 FINISHER-REAR PILLAR, LH -7803 [gray?]
  • 76850-G1060 FINISHER-REAR PILLAR, RH 7804- [Black]
  • 76851-G1060 FINISHER-REAR PILLAR, LH 7804- [Black]
  • 08530-71690 SCREW (2 per side)

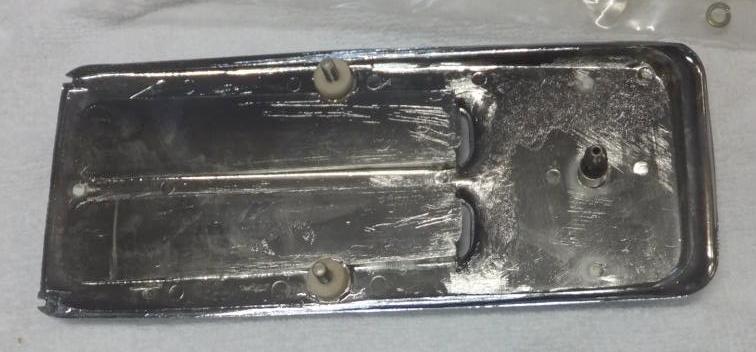

1971-1978 Chrome Finisher
14433.jpgAlbum click to view

1971-1978 Gray? Finisher
26037.jpgAlbum click to view

1978-2007 Black Finisher
14362.jpgAlbum click to view

1976 JDM
B120b-vent.jpg B120a-vent.jpg

Without external Finisher
14181.jpgAlbum click to view 18951_55cb4bfd254fe.jpgPost click for topic 22653.jpgAlbum click to view

Carbon Fibre
25009.jpgAlbum click to view 25010.jpgAlbum click to view

Stainless Fluted - POST post
IMGP6342.jpg IMGP6335.jpg IMGP6352.jpg

Stainless Steel - see POST clyons
DatsunSideVentsPolished.jpg 13419_548816c55fec2.jpgPost click for topic 13419_548816736deef.jpgPost click for topic

aftermarket Fluted Black - see POST clyons
B120V3.jpg B120V2-1.jpg B120V4.jpg

POST post

Stainless Steel - POST datsunbeginner
13419_518c27d01764f.jpgPost click for topic 13419_518c27e9d113d.jpgPost click for topic 13419_518c27f177d82.jpgPost click for topic 13419_5416a778a7a8c.jpgPost click for topic 3dblankfinal2.png
