Inside of FS5W63a
Home away from home
Joined:
2015/11/10 17:48
From Fort Worth, Texas
Group:
Registered Users
Posts: 213
Offline

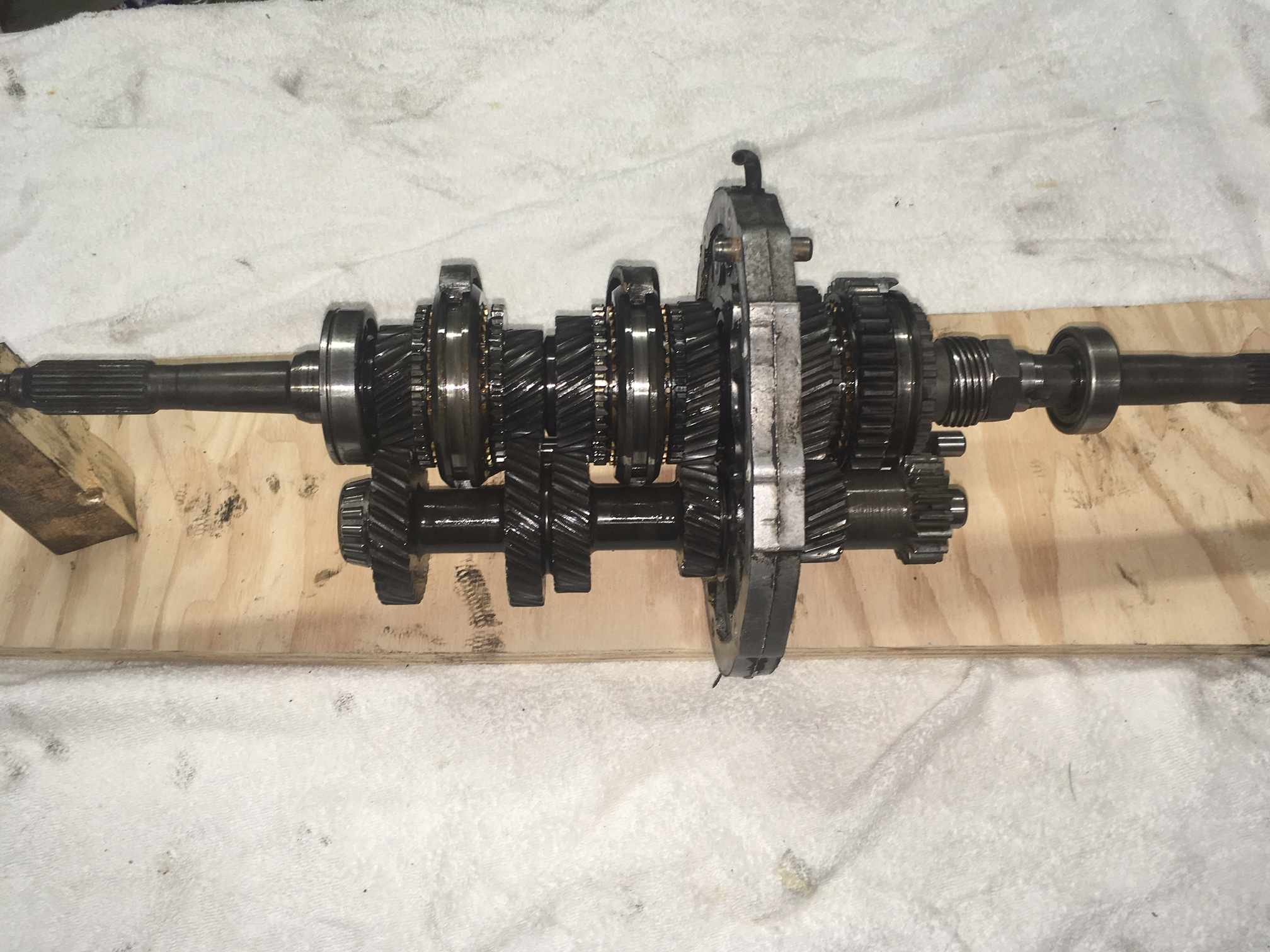

Well I finally got my transmission opened up. Took patience and alot of wd-40 to break things loose. Another great looking Datsun gearbox considering the age. 3rd one I have opened and the 1st 63 series for me. Gears are considerably different than the 60 series. Could use a set of bearings and maybe synchros, but other than that, this will be good to go. No binding or unusual wear.

DD...I did get a hold of a service manual for the 200sx S10 and found this exact transmission. However the 200sx had the L18/20 engine so the only difference is the bell housing and input shaft??

I posted some pics because I couldn't find many of the internals on this site. Unless they are buried on someone's thread. Post to Tech Wiki if they are of benefit.

I think I have a buyer. If it doesn't work out, I will post on classifieds. Might be able to ship overseas if the gear assembly is shipped separate from the housing to keep the weight down. 2 packages instead of 1 big one.

Attach file:



jpg  63.jpg (190.93 KB)
20677_5c78c57640b33.jpg 2016X1512 px

jpg  63a.jpg (181.86 KB)
20677_5c78c58fdd7d3.jpg 2016X1512 px

jpg  63c.jpg (116.97 KB)
20677_5c78c59a02c6e.jpg 2016X1512 px

jpg  63d.jpg (188.04 KB)
20677_5c78c5a2caf44.jpg 2016X1512 px

jpg  63e.jpg (188.39 KB)
20677_5c78c5b55dad0.jpg 2016X1512 px

jpg  63f.jpg (178.44 KB)
20677_5c78c5da53af0.jpg 2016X1512 px

jpg  63g.jpg (181.09 KB)
20677_5c78c5e413e22.jpg 2016X1512 px

jpg  63h.jpg (186.55 KB)
20677_5c78c5eeafaa2.jpg 2016X1512 px

jpg  63i.jpg (191.94 KB)
20677_5c78c5fc2c997.jpg 2016X1512 px

jpg  63j.jpg (188.21 KB)
20677_5c78c6064d514.jpg 2016X1512 px

jpg  63k.jpg (175.82 KB)
20677_5c78c62440bf8.jpg 2016X1512 px

Posted on: 2019/3/1 5:54
Transfer the post to other applications Transfer


Re: Inside of FS5W63a
Home away from home
Joined:
2003/9/4 4:47
From Beautiful Sunny (sic) Melbourne
Group:
Registered Users
Posts: 259
Offline
Good pics, will come in handy as I have one that I need to pull apart and inspect. Now I know what to expect. Thanks.

Is the whole transmission the same as a 63A dogleg from a Stanza or a 180B, other than the bell housing (and maybe a longer rear extension housing?) and input shaft?

Posted on: 2019/3/1 6:42
Transfer the post to other applications Transfer


Re: Inside of FS5W63a
Moderator
Joined:
2001/5/3 7:04
From 48 North
Group:
Registered Users
Contentmaster
Usermaster
Posts: 31575
Offline
Great pics!

Yes:
* front case differs (A-engine bolt pattern vs L-engine bolt pattern)
* Input shaft has a different diameter spigot but splines are the same
* Clutch disc is the same
* gear ratios are the same
* Output yoke is same diameter (larger than 60 series prop shafts)


Those gears look like the 60L five-speed (which is also a dogleg 5-speed). Just a little smaller (60mm shaft spacing vs 63mm)

63i
Open in new window


FS5W60L (D = direct aka 4th)
Open in new window

Posted on: 2019/3/1 9:23
Transfer the post to other applications Transfer
