Re: DOHC Front adapter plates
Home away from home
Joined:
2014/5/28 6:09
From Creswell, Oregon USA
Group:
Registered Users
Posts: 557
Offline
was told to stop the profit stuff for about a month, so now I am going to jump back into this and the billet cross flow cylinder head once my orders have been finished.

Posted on: 2020/2/25 1:56
_________________
An idea doesn't work unless you do.

Instagram @MD_Machine
Parler @MDMachine
Transfer the post to other applications Transfer


Re: DOHC Front adapter plates
No life (a.k.a. DattoMaster)
Joined:
2002/10/28 6:49
From under the Firmament LOL no twiglight effect BS
Group:
Registered Users
Posts: 10924
Offline
Matt what do you think of this pump and
the extra pulley needed to be CNCd for it
so it can go in place of the original pump?
Its going to cost much more all up but would
like to see if its possible as in the end
less wiring and better looks still leaving
Mazda crank pulley free for alt and air con.

If you can confirm it might work then I can
have it sent to you after buying from aliexpress
unless you can get it cheaper in your neck of the
woods from a local USA supplier then I can just
buy it and have it sent as well.

toyota 4y/4p waterpump

Open in new window


Total height H 112mm
Length L: 96mm
Shaft diameter D1 15.9mm
Neck diameter D2 28.3mm
Diameter flange D3 67.7mm

Open in new window


Open in new window


Open in new window


https://www.aliexpress.com/item/32816285826.html

Posted on: 2020/2/25 3:13
_________________
"Australia" is formed by all its geographically listed territories "including" Norfolk, Christmas & Cocos Islands. The word include excludes all else before it therefore you have no legal rights.
Transfer the post to other applications Transfer


Re: DOHC Front adapter plates
Home away from home
Joined:
2014/5/28 6:09
From Creswell, Oregon USA
Group:
Registered Users
Posts: 557
Offline
I will see what I can dig up locally.

I cant design around a B series cylinder head because I don't have one. I can work on a setup for the Z series cylinder head though.

Posted on: 2020/2/25 17:31
_________________
An idea doesn't work unless you do.

Instagram @MD_Machine
Parler @MDMachine
Transfer the post to other applications Transfer


Re: DOHC Front adapter plates
No life (a.k.a. DattoMaster)
Joined:
2002/10/28 6:49
From under the Firmament LOL no twiglight effect BS
Group:
Registered Users
Posts: 10924
Offline
If you can just compare the measurements of the water cavity hole on your A12 block with the ones I posted you can get a better idea if it might work or not.

The problem is the pulley needs to be like a big cup to cover over the waterpump close to original waterpump pulley size in diameter.

The head shouldnt matter? as the angle of the waterpump pulley will just change the angle of the belt a tad and in fact will give more contact surface area to the B head even if you use the Z series for reference.

Can you post a pic of your z head and which model it is Matt? particularly the water oil passages so I can compare to the B series.

might need a little grinding at the base to fit a decent pulley size

Attach file:



jpg  waterpump2.jpg (100.15 KB)
737_5e5923a88a20d.jpg 751X1000 px

jpg  waterpump3.jpg (95.16 KB)
737_5e5923af681a3.jpg 751X1000 px

Posted on: 2020/2/26 1:40

Edited by D on 2020/2/28 14:29:08
Edited by D on 2020/2/28 14:30:42
_________________
"Australia" is formed by all its geographically listed territories "including" Norfolk, Christmas & Cocos Islands. The word include excludes all else before it therefore you have no legal rights.
Transfer the post to other applications Transfer


Re: DOHC Front adapter plates
No life (a.k.a. DattoMaster)
Joined:
2002/10/28 6:49
From under the Firmament LOL no twiglight effect BS
Group:
Registered Users
Posts: 10924
Offline
https://scontent-nrt1-1.cdninstagram.c ... 67d1ac4b39dd4&oe=5EA04752

Matt Ive only seen bare heads without that smaller cambelt idler unit.

Any chance you can post pics of the chambers, inlet and exhaust
sides as Im getting smitten again by the z series heads.
all i can find http://www.athousakis.gr/wp-content/u ... -head-mazda-Z501-9976.jpg
Im wondering if that idler pulley section could be used on
the waterpump below somehow then cnc impeller to suit the
current plate you have if correct cavity is machined to suit.

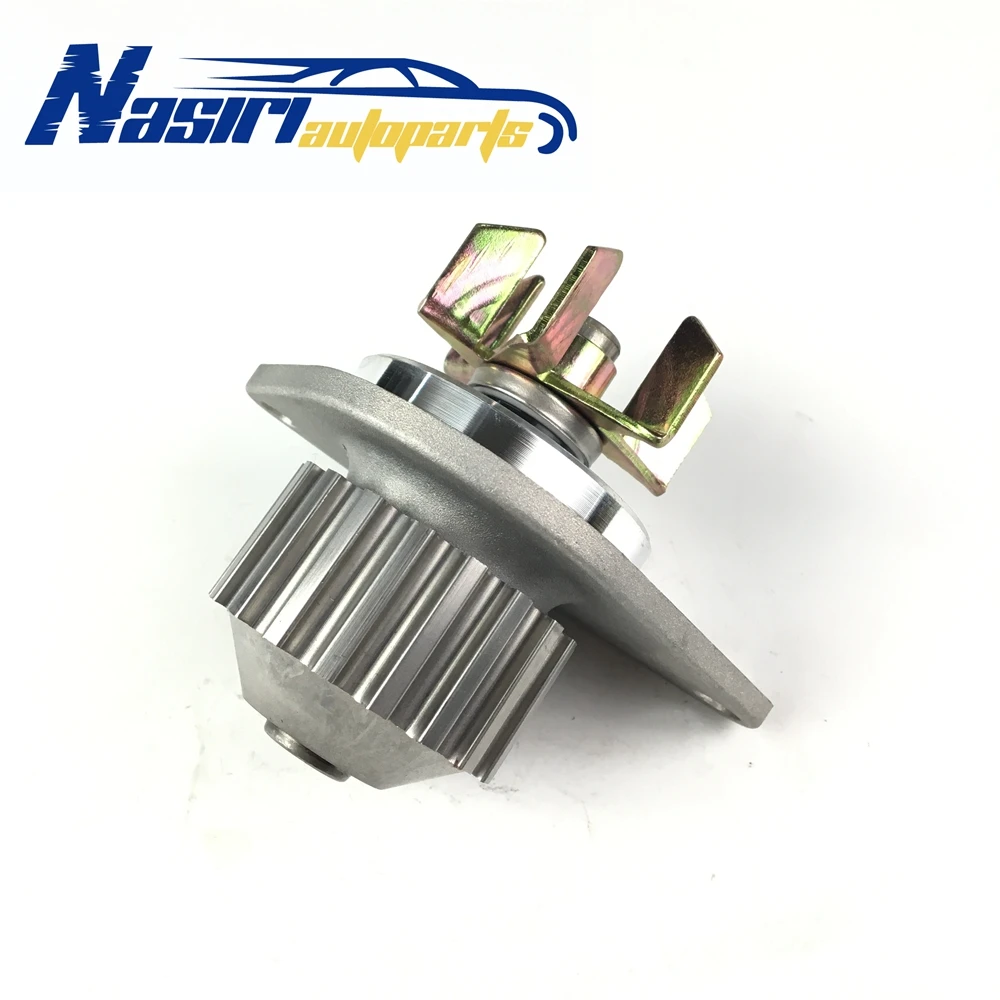

https://ae01.alicdn.com/kf/HTB1Tk8.dNS ... -Qubo-Peugeot-207-1-0.jpg
