Category: Body Electrical System

Factory clocks were optional in all 1200 models for either rectangular or round style dashes. It was standard equipment on GL & GX models where the clock was fitted the Console, while other models fitted the clock in the instrument panel to the left of the speedometer.

Contents

Overview

Clocks were made by Niles, Kanto Seiki (関東精機), Citizen Watch or Jeco.

Square
H10 w/o numbers
G10 with numbers
Round
H20 narrow font with bracket
H26 narrow font w/o bracket PB110
H30 wide font long bracket
H34 wide font no bracket
G16 wide font no brackets, no tabs

B120 1974 Export owner's manual (Page 17 ... 17):

th_00%20cover.jpg   th_17.jpg
Comfort and Convenience Features

Turn right to advance hands to the left to retard hands. Several settings may be needed to obtain completely accurate time keeping.

Clock/Tachometer Mask
26062.jpgAlbum click to view

Font

As with the other gauges (Speedometer & Tachometer), later Clock versions use a different font:

Narrow vs Wide font
23448.jpgAlbum click to view

Rectangle

Kaku Rectangular

H10 original clock for STD or DX model
23440.jpgAlbum click to view

G10 genuine Niles clock for STD or DX model. This one is for a 1976-1978 pickup.
18384.jpgAlbum click to view

Original

H20 Maru Round - Green Line original style
23439.jpgAlbum click to view

Narrow Font

Long bottom tab is an identifier

tabs on side are for bolting into floor Console

PB110

H26/H27? PB110 Sunny Excellent - Narrow font. Doesn't have the bottom tab-bracket.
25963.jpgbrochure

Facelift

H33 1972 Facelift - wide font, long bracket
25964.jpgAlbum click to view

* Extra long-bracket for fitting to hooded dash
* Wider Font and no green lines
* Anti-glare cover (cone-shaped)

H34 CLOCK for console box

??? No picture

23447.jpgAlbum click to view 23446.jpgAlbum click to view 8882.jpgAlbum click to view

JECO
th_JECO-1.jpg th_JECO-2.jpg th_JECO-3.jpg

Success stamped K.S. Clock
23444.jpgAlbum click to view

Late Model

G16 1978-1994 style - Wide Font. No green lines.
2024.jpgAlbum click to view late ute Citizen clock
669.JPGAlbum click to view 8520.jpgAlbum click to view 21253.jpgAlbum click to view

174_5a09441da52a3.jpgPost click for topic 174_5a09442b34c0c.jpgPost click for topic 174_5a0944322c2ef.jpgPost click for topic

G16? has no side-brackets for mounting in a console (see discussion)
13419_4e3cb7ab19ac0.jpgUpload click to view 13419_4e3cb7be54d04.jpgUpload click to view 13419_4e3cb7be54d04.jpgUpload click to view

25968.jpgAlbum click to view 25966.jpgAlbum click to view 25967.jpgAlbum click to view

2007

B140 Clock Mask 'NISSAN'
14515.jpgAlbum click to view

Option

2209.jpgAlbum click to view

Custom Face


Dash Fitting

The clock bolts into the dash by using the tabs along the face. Unbolt the mask and bolt in the clock.

click

The tabs further back on the body are used for mounting in the floor console.

Console

Clock was fitted to the OPTION large console.

See main article: Console for more details

21473.jpg th_lc6.jpg

Wiring

The clock is powered by a constant-Hot wire. If you wire to IGN, it only runs when the key is on :-)

  1. 12V Power: L or RB
  2. Ground/Earth: B
  3. Lamp: RB or RG

13937.jpgAlbum click to view 13938.jpgAlbum click to view 13939.jpgAlbum click to view 23445.jpgAlbum click to view

Clock: Blue or Red/Black wire
Power feed 12V (Blue) hanging down from the harness.
Clock: Red/Blue or Red/Green
Lamp feed on instrument panel
Clock: Black wire
Ground/Earth point on instrument panel
(panel frame on rectangular panel)

Service Bulletin
24401.jpgAlbum click to view

Part Numbers

Rectangle

Kaku メーター 角

27390-H1000 ASS'Y-CLOCK (op.) 3 speed, VDT, B120 -7511
23440.jpgAlbum click to view
27390-G1000 CLOCK ASSY 7512-7803
18384.jpgAlbum click to view 18385.jpgAlbum click to view

Australia - 'D' Mask for clock
2041.jpgAlbum click to view
JAPAN  - 'S' Mask for clock
25005-H1000 MASK-clock 3 speed, VDT
23449.jpgAlbum click to view 23450.jpgAlbum click to view 23451.jpgAlbum click to view 19079.jpgAlbum click to view
25006-H1000 NUT-fix clock & tachometer (3)

Round

JAPAN maru メーター 丸
25005-H1800 MASK-tachometer ['Sunny' for clock delete]
25006-H1000 NUT-fix clock & tachometer (3)
27380-H2000 ASS'Y-CLOCK GL,GX
23437.jpgAlbum click to view 23438.jpgAlbum click to view
th_27380-H2000-1.jpg th_27380-H2000-2.jpg [th_27380-H2000-3.jpg
27390-G1660 CLOCK ASSY 7804-
2024.jpgAlbum click to view 21253.jpgAlbum click to view
 08540-51612 SCREW
 08964-10510 NUT
 25005-G1660 MASK-CLOCK HOLE 7804-8910
 68460-95W00 MASK-CLOCK HOLE 9810- [no writing]
JAPAN 1972
27380-H3300 CLOCK ASS'Y GL, (op.) Std, DX [Long-bracket type for use with 1972 Dash]
th_27380-H3300-1.jpg th_27380-H3300-2.jpg th_27380-H3300.jpg
25017-H3100 CLAMP-front cover (3)
25012-H3300 COVER ASS'Y-front (for clock) GL, (op.) Std, DX
 [dash blind] has long bracket on top
25012-H3100 COVER ASS'Y-front ['Datsun' for clock delete]
fixing clock & tachometer
 08964-10510 NUT
 08510-51612 SCREW
 08915-43510 WASHER-plain
27380-H3400 CLOCK ASS'Y (for console box) GX
 08513-41212 SCREW (3) GX
 08915-43410 WASHER-plain GX
74990-H2021 MASK-clock CG,GX [console]
 08513-41212 SCREW (3) GX
 08915-43410 WASHER-plain GX
USA
27380-H2000 ASSY-CLOCK USA
27389-H2300 SPACER FIXING CLOCK TO CONCOLE BOX
25005-H1810 MASK-TACHOMETER "DATSUN" [delete plate for dash]
Japan [[PB110]

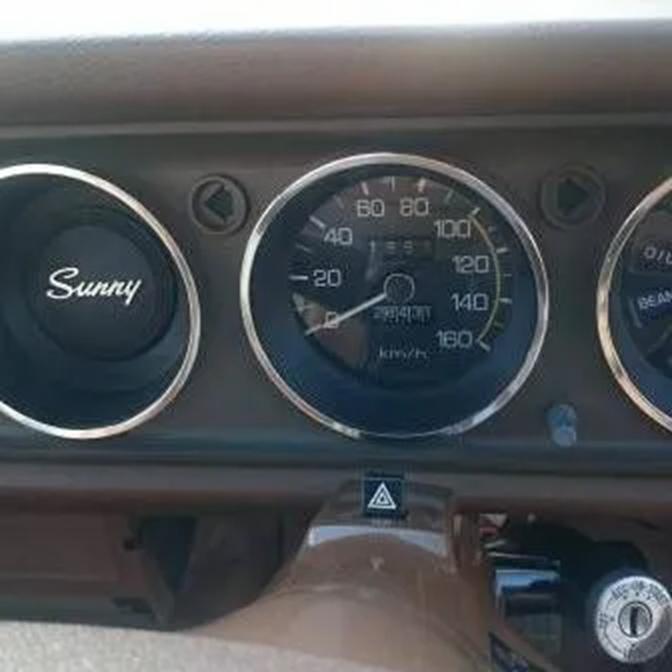

25005-H1800 MASK-TACHOMETER ['Sunny'] [for dash]
25005-H3100 MASK ASS'Y-tachometer DX [for dash]
74990-H2600 MASK ASS'Y-clock [for console]
27380-H2701 CLOCK ASS'Y (for console box) GX (Op.) GL
27380-H2600 CLOCK ASS'Y GL, GX, (op.) DX
27380-H3300 CLOCK ASS'Y GL (Op.) DX

Mask

Clock blanking plate (mask)
27181.jpgAlbum click to view

See also: Console#Mask

Dash Mask for clock
26766.jpgAlbum click to view 26062.jpgAlbum click to view

H18 MASK-TACHOMETER "DATSUN" [delete plate for dash]
23442.jpgAlbum click to view 23443.jpgAlbum click to view 7952_545d60fae2e3d.jpgPost click for topic

G16 Mask installed
8805_dash.jpg 7952_545d5fcb2e590.jpgPost click for topic 7952_545d61afefddc.jpgPost click for topic

95W 68460-95W00 MASK-CLOCK HOLE 9810- [no writing]
25965.jpgAlbum click to view

B140

B140 Clock Mask 'NISSAN'
14515.jpgAlbum click to view

Rectangle

27115.jpgAlbum click to view

25005-H1000 MASK-clock 'S' 3 speed, VDT

23449.jpgAlbum click to view 23450.jpgAlbum click to view

27117.jpgAlbum click to view 27116.jpgAlbum click to view

Alternatives

Datsun 620 clock mask may also fit
620_1973.jpg th_Picture024b.jpg

時計 クロック
