Tachometer

From Datsun 1200 Club

Datsun 1200 encyclopedia | Recent changes | Edit this page | Page history | Switch to MediaWiki mode

Printable version | Disclaimers | Privacy policy
Categories: Body Electrical System | Options

Optional for the Datsun 1200 was an 8,000 RPM Kanto-Seiki tachometer. It was usually housed in the round-gauge instrument panel to the left of the speedometer. It may also be placed in the optional floor console.

Contents

Overview

1972 USA Owners manual

Page 08   Page 09
08.jpg   09.jpg
The tachometer is electrically operated and indicates engine speed calibrated in hundreds of revolutions per minute (rpm). two color zones are on its face. For normal driving, your vehicle should be driven in the yellow or non-color sectors.

The standard tachometer has a 6400 rpm redline
21197.jpgAlbum click to view

PB110
2129.jpgAlbum click to view

Options - Tachometer was optional on DX or GL round dash models. Standard equipment on the GX.
2209.jpgArticle click to go 174_56da19535f43b.jpg

S1 | SSS
50.JPGAlbum click to view 6595.jpgAlbum click to view

Ute can be retro-fitted with a tacho. No factory tachometer is listed for Sunny Truck, but only a Clock. Even so it is common to see tachometers installed in 1200 Trucks, as they fit the same.
5153.jpgAlbum click to view

B140
8985.jpgAlbum click to view

Bottom stay is the ground/earth point
174_5d61ccb70965d.jpgPost click for topic

Location

The factory Parts Catalog shows GL came with a clock in the dash, while the GX came with an 8,000 RPM tachometer in the dash and the clock was moved to the floor console.

Dash

B110
6598.jpgAlbum click to view 3700.jpgAlbum click to view

PB110
11440.jpgAlbum click to view

Dash Fitting

Mounting tabs (red arrows). The plastic lens is attached with three smaller screws (yellow arrows).
174_5d65daa39a91c.jpgPost click for topic

Remove the facia with attached gauges from the dashboard
3376.jpgAlbum click to view

Unscrew the blanking plate
174_5d65dac10c42d.jpgPost click for topic

Finally, use the three screws to attach the tachometer
174_5d65dab2369bf.jpgPost click for topic

Tacho in dash, blank plate in Console

factory GL configuration

7730.jpgAlbum click to view 286.jpgAlbum click to view

Tacho in dash, Clock in Console

factory GX configuration

1350.jpgAlbum click to view 5703.jpgAlbum click to view

Tacho in Console

Specials Datsun 1200 SSS and Datsun 1200 S1 placed the tachometer in the floor console. It is preferable to have the Tachometer at eye-level, however these models came with square-gauge dashes so the large round tachometer was placed in the console.

SSS | S1
6595.jpgAlbum click to view 50.JPGAlbum click to view

The factory tachometer was not designed to bolt to the console. But is will fit if you make a simple bracket to hold it in place.

Wiring


Part Numbers

#H18 24855-H1800 1200 TACHOMETER 8000 RPM [6400 redline]
26335.jpgAlbum click to view
#H23 24855-H2300 1200 TACHOMETER 8000 RPM GX
#24855-H1075 1200 FACTORY RACE TACHOMETER
* Calibrated to 10,000 RPM with adjustable redline needle
26346.jpgAlbum click to view
#H31 24855-H3100 1972 B110 8000 RPM [Facelift] (Except GX)
#H34 24855-H3400 1972 B110 GX 8000 RPM [Facelift 6800 redline]
26738.jpgAlbum click to view

364/384 facelift tachometer plastic on old-style tachometer
364tacho.jpg 364tacho_.jpg

26061-B140 Allied Engineering for B140
26990.jpgAlbum click to view 174_589e901cb017b.jpgPost click for topic

H18

H18 is the Coupe Applied Model Code. This same tachometer was optional on Sedan.

24855-H1800 1200 TACHOMETER 8000 RPM [6400 redline]

26335.jpgAlbum click to view 26333.jpgAlbum click to view 26334.jpgAlbum click to view

1691.jpgAlbum click to view 1690.jpgAlbum click to view

24855-H1800.jpg 24855-H1800_.jpg 24855-H1800-.jpg

Facelift

The 1972 minor facelift made several changes to the tachometer.

H31: DX, GL option (6400 RPM redline)
#H34: GX with 6800 RPM redline

New anti-glare cover (cone shaped)
26741.jpgAlbum click to view

New Font, new colors
18919.jpgAlbum click to view

Now includes long stay to reach hooded facia
26738.jpgAlbum click to view

Gauges have long-reach brackets, but old tacho will bolt up
26344.jpgAlbum click to view

Old tachometer installed using flat-plastic cover

26345.jpgAlbum click to view 26343.jpgAlbum click to view

H34

1972 minor facelift tachometer came with new plastic anti-glare cover (cone shaped).
26741.jpgAlbum click to view

New Font, new colors
18706.jpgAlbum click to view 18707.jpgAlbum click to view

#H34 - includes long top stay to reach hooded facia (GX: 6800 RPM redline)
26738.jpgAlbum click to view 26739.jpgAlbum click to view 26740.jpgAlbum click to view 174_5d61cca64f140.jpgPost click for topic 174_5d61ccaf8f96e.jpgPost click for topic

H34 with original wiring (current loop)
18919.jpgAlbum click to view 18920.jpgAlbum click to view

Adjustment

Adjust the RPMs using the trimmer slot on the back of the tachometer. Take a reading using a dedicated (accurate) Dwell-Tachometer, and if your tachometer reads off, adjust it to match.
28522.jpgAlbum click to view

The factory tachometers have an adjustment via is a trimmer pot (potentiometer) on the back of the tachometer. Use a thin screwdriver to make the adjustment. It can be accessed from the back of the tachometer. The access hole is above the bottom tab. Rotate the pot clockwise or anti-clockwise to adjust.

Yellow Arrow points to the trimmer pot
28523.jpgAlbum click to view

Electronic Ignition

The stock tachometer works with most types of Electronic Ignition.

  • If using a single coil with the stock ballast resistor, works the same
  • If using coil packs, use the "Tach Out" signal on the ECU or Ignition Controller
  • Early tach (current loop type): If using a "high energy" system (no ballast resistor) you may need to add a 1.5 ohm resistor inline with the tach wire

The tach may jump around and misbehave with a new ignition module. A condenser on the coil negative wire can help with this.

V8

The stock tachometer will work with a V8 engine, but will read half of the actual engine speed.

Ditto for a six-cylinder engine (inline i6 or V6), it will read 1/3 slow. This can sometimes be compensated using the #Adjusment on the back of the tachometer.

For a V8, add a 15k ohm resistor between the tachometer circuit board and the tachometer movement.

LATE 1200 tachometer (voltage sense type)
8-cylinder 15k resistor

Some later Datsuns use a 2.2k resistor inline with the coil to reduce noise. In a 280Z it is located in the passenger side footwell. In a 720 it is located in the engine compartment. This resistor is not needed for proper tachometer operation but can help in electrically noisy environment.

620 Tachometer

The Datsun 620 truck tachometers fits Datsun 1200 and looks very similar. But 620 models with L20B engine have 7000 rpm red line (1200 tach has 6400 or 6800 rpm redline).

1976-1979 USA 620 Tachometer [7000 redline]
24855-B8000.jpg 16721.jpgAlbum click to view

620 in Japan did not have a factory tachometer option.

1972-1975 early 620 USA
* 24840-B6400 KIT-TACHOMETER OP -0775
* 24054-B6400 ASSY-CABLE,TACHOMETER
9997.jpgAlbum click to view
1976-1979 late 620 USA
* 24855-B8000 ASSY-TACHOMETER OP 0875-
* tachometer wiring is built into every 1976-1979 620

The later Tachometer Wiring is different. It is a typical tap connection, instead of the Datsun 1200 'passthru' induction wiring.

Comparison

1200 and 620 tachs are wired completely different. See Tachometer Wiring.

620 Tachometer has no wiring loop:

Early 1200 Tachometer has wiring loop:
18920.jpgAlbum click to view

Bprojects

Bprojects Sunny Truck tachometer, looks like genuine dash tachometer, but has different redline. It mounts in the dash, and is lacking console mounting brackets.

6500 RPM redline
b110-tacho-003.jpg b110-tacho-003003.jpg

Green to Illumination
Black to Earth
Red to I/G 12V
Yellow/red to ignition coil - (minus)

b110-tacho-007.jpg b110-tacho-008.jpg b110-tacho-005.jpg b110-tacho-006.jpg b110-tacho-004.jpg

Nissan Competition

1984 Nissan Competition Catalog

TACHOMETERS


#H18 24855-H1800 is the stock factory OPTION tachometer

#24855-H1075 is the 10,000 RPM tachometer

10,000 RPM Tachometer

Sunny Sport option
174_5d70d4cee755d.jpgPost click for topic

As you can see, the 10k tachometer has the same case, same font, same wiring. Only the faceplate is different and a moveable tell-tale pointer has been added.
26346.jpgAlbum click to view 26347.jpgAlbum click to view 1537.jpgAlbum click to view 3235.jpgAlbum click to view 174_5d70d4fa1ca27.jpgPost click for topic 174_5d70d50fb2c60.jpgPost click for topic

This one appears to be using the standard lens, with the tell-tale knob having been removed, wires cut, power post missing, and lower mounting bracket hacksawed off
174_5d715b4559d9e.jpgPost click for topic 174_5d715b4dd5314.jpgPost click for topic 174_5d715b3c70d61.jpgPost click for topic

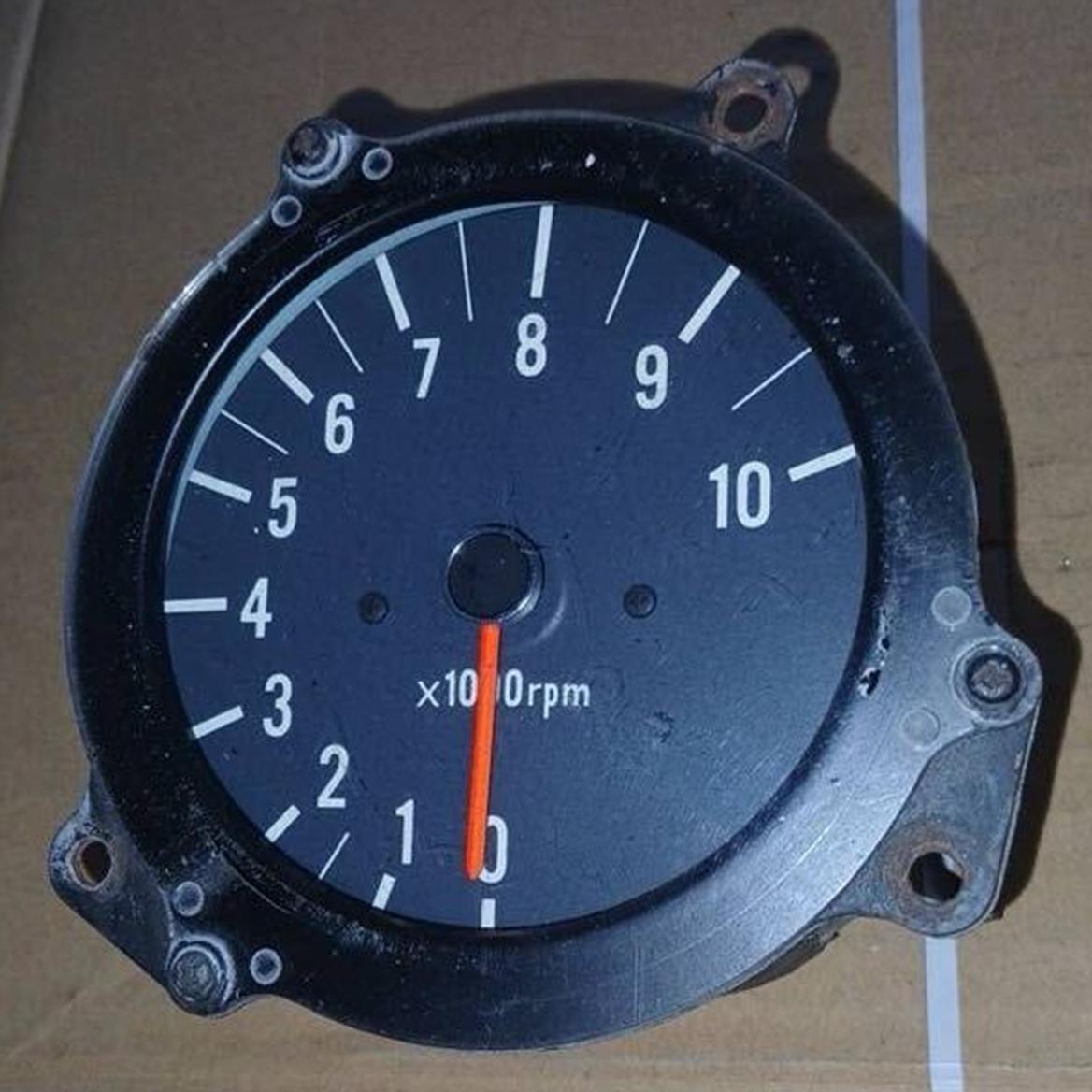

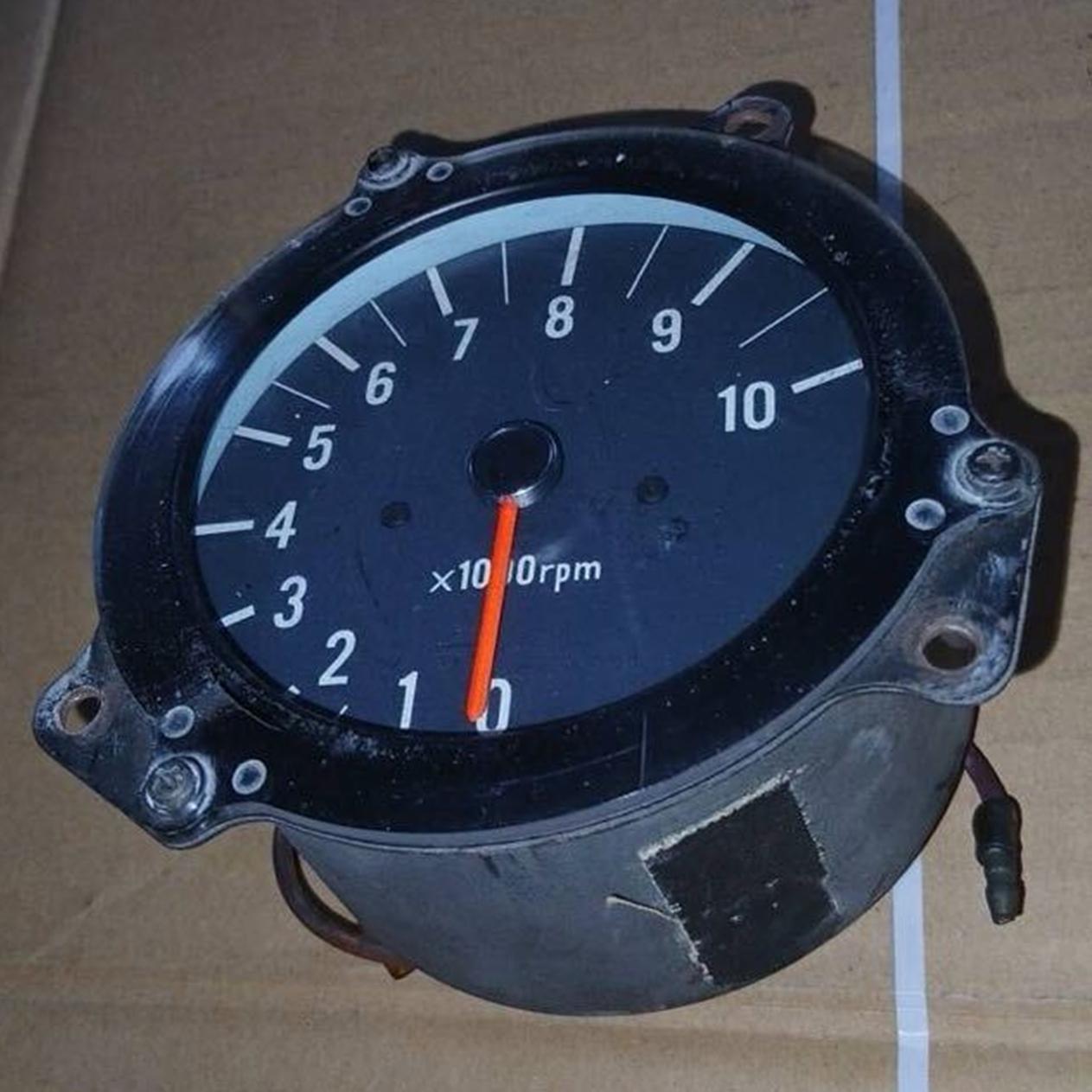

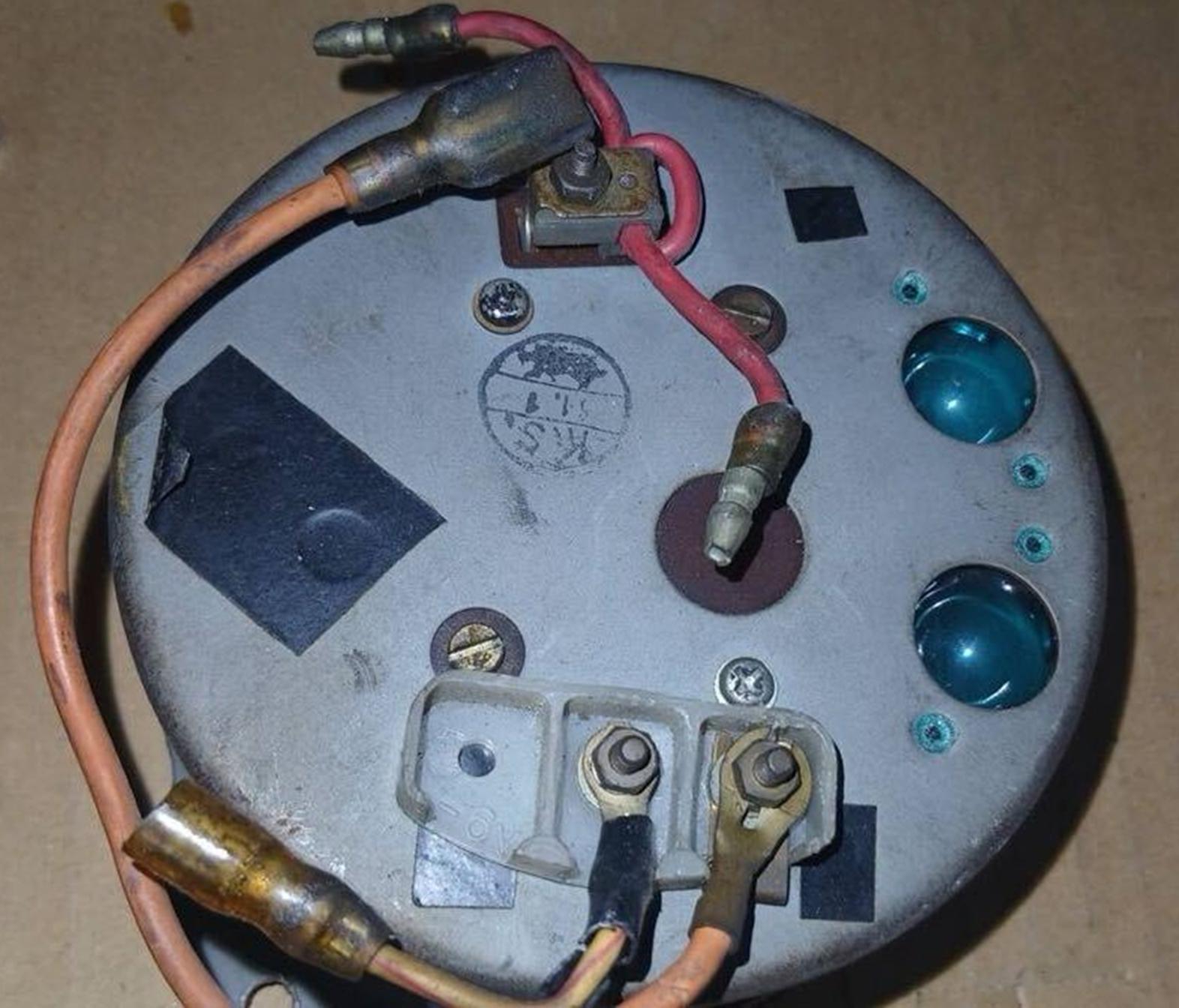

12,000 RPM Tachometer

Kanto Seiki 12,000 RPM tacho.
26339.jpgAlbum click to view

Mechanical Drive

Datsun Competition offered a mechanical tachometer.


Aftermarket Tachometers

Photo Index

601.jpgAlbum click to view 957.jpgAlbum click to view 958.jpgAlbum click to view 1087.jpgAlbum click to view 1132.jpgAlbum click to view 1411.jpgAlbum click to view 1801.jpgAlbum click to view 1886.jpgAlbum click to view 2041.jpgAlbum click to view 2192.jpgAlbum click to view 3940.jpgAlbum click to view 5043.jpgAlbum click to view 7769.jpgAlbum click to view 8764.jpgAlbum click to view 8840.jpgAlbum click to view 8882.jpgAlbum click to view 9732.jpgAlbum click to view 10710.jpgAlbum click to view 10761.jpgAlbum click to view 13689.jpgAlbum click to view 13883.jpgAlbum click to view 14194.jpgAlbum click to view

rev counter tacho tach rpm gauge タコメータ

¤
