Air dam

From Datsun 1200 Club

Datsun 1200 encyclopedia | Recent changes | Edit this page | Page history | Switch to MediaWiki mode

Printable version | Disclaimers | Privacy policy
Categories: Fibreglass | Body Modifications

See also: Spoiler

An air dam, "lip", "splitter" or "bar" is an air spoiler at the front of the car, preventing most air from traveling under it (see Spoiler (automotive).

Contents

Overview

See also: Spoiler
(rear spoiler and wings)

Preventing airflow under the car reduces pressure and parasitic drag on the under side. The result is less drag and less lift at the front of the car.

15719.jpgAlbum click to view 15744.jpgAlbum click to view

12869.jpgAlbum click to view 25690.jpgAlbum click to view 6709.jpgAlbum click to view

Modern air dam with brake ductwork
2721.jpgAlbum click to view

10257_4c1c9af499611.jpgPost click for topic8427_4c21b912eebcb.jpgPost click for topic

Alfa Fiberglass in Victoria
IMG_0178.jpgPost click for topic

スポイラー

Chin Spoiler

Classic old-school air dam "chin spoiler"
8977.jpgAlbum click to view 20270.jpgAlbum click to view 1531.jpgAlbum click to view 12784.jpgAlbum click to view 7337.jpgAlbum click to view

22615.jpgAlbum click to view 1834.jpgAlbum click to view 708.jpgAlbum click to view

Classic "chin spoiler" with brake ducts
1839.jpgAlbum click to view 1838.jpgAlbum click to view

Materials

Most air dams are made out of fiberglas. Modern ones are made out of ABS plastic.

aluminum air dam
7227.jpgAlbum click to view

Donor Parts

Charade
24247.jpgAlbum click to view


Stanza donor
2088.jpgAlbum click to view

Canberra Car Styling
2/ 168 Gladstone St Fyshwick ACT 2609
phone: (02) 6280 6020

Designed by Bob Hall
3946.jpgAlbum click to view 4453.jpgAlbum click to view 10308_4a5052a063dbb.jpgPost click for topic 10308_4a5473a11bd3d.jpgPost click for topic

Steven Draheim makes these fibreglass parts for 1200's
306.jpgAlbum click to view

BRE Spook

Spook by BRE was designed by Peter Brock as a derivative of his famous "spook" concept he created for the BRE Datsun roadsters in 1969. The 510 BRE Air Dam design ran on the 1971 and 1972 Trans-Am Championship Datsun 510 racers. buy now

174_5b98588784adc.jpgPost click for topic 174_5b9858944fb09.jpgPost click for topic

BRE-style with square brake ducts
26460.jpgAlbum click to view 26461.jpgAlbum click to view

Interpart version
1538.jpgAlbum click to view

Tomei

TS Cup style
16757.jpgAlbum click to view 8979.jpgAlbum click to view 1872.jpgAlbum click to view 1300533A30140530W00101.jpg 15945.jpgAlbum click to view 10257_4c1c9aac00108.jpgPost click for topic

Mira

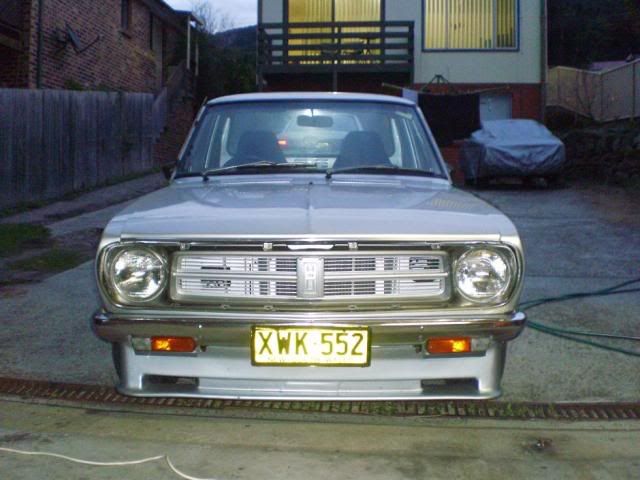

The most popular OEM air dam to fit a Datsun 1200 is a Daihatsu Mira part. The first person who was discovered, has been handed down and privateer group "Red Shimizu's MFP" (MFPのレッド清水さん).

10257_4c1c9b096b758.jpgPost click for topic

Mira front bumber: the earlier models 1990-1998 L200/201 series and the Mira TR XX are the sporter version that has a lip and side skirts etc. also i noticed there are a couple of different types, one has a rounder mouth like the pic and also one that is just a straight rectangle mouth.

22814.jpgAlbum click to view 22813.jpgAlbum click to view 12371_4cc3e5e4986c3.jpgUpload click to view12371_4cc3e5f64d89c.jpgUpload click to view 11179_4cc471a2510be.jpgUpload click to view

Cut where the red line is and go from there, trim another inch or two until your indicators sit flush with the mira indicators slots. If i didn't 14" rims that wide then i wouldn't of had to trim the sides to much which looked better. Keep the grille if you can, mine was already broken so had to cut it out. Mira TR-XX has a better bumper more square and lip kicks out

Daihatsu Mira L200
400px-Daihatsu_Mira_L200_001.JPGWIKI go to Wikipedia

USA version

Australia Mira XX version

S63 Mira bumper with integrated air spoiler
mira-bumper-1.jpg mira-bumper-2.jpg

Barina

1985-1988 Holden Barina (Suzuki Cultus variation)
400px-1988_Holden_Barina_%28ML%29_5-door_hatchback_%282015-07-14%29_01.jpgWIKI go to Wikipedia 15676.jpgAlbum click to view

On 120Y
18609.jpgAlbum click to view 18610.jpgAlbum click to view

Golf

Shallow splitter

Deep dam

How to install GOLF 2-Piece Chin Spoiler on 1200.
7697_552c74a8256f8.jpg 7697_552c74926203c.jpg

South Africa

AutoStyle?
3303.jpgAlbum click to view

1400 bar fitted to Coupe:
17953.jpgAlbum click to view 17948.jpgAlbum click to view 17952.jpgAlbum click to view

Nissan Competition

The 1984 Nissan Competition Catalog listed this factory fibreglas part for Datsun 1200 Coupe:


1200 Coupe Factory Fiberglass Parts
* 98101-H3076 FACTORY FRONT SPOILER W/DUCTS


Datsun B210

120fly style
9196.jpgAlbum click to view 7987.jpgAlbum click to view 7937.jpgAlbum click to view 7938.jpgAlbum click to view 7939.jpgAlbum click to view 7627.jpgAlbum click to view

Datsun B310

Front lip from Datsun B310 slightly modified
P7270167ozz_.jpgAlbum click to view

#Tomei TS Cup B310-type
186.jpgAlbum click to view25548.jpgAlbum click to view 25549.jpgAlbum click to view

Photo Index

Click any thumbnail to see it full size in our Club Photo Album. Read details or post a comment!

5359.jpgAlbum click to view 259.jpgAlbum click to view 1372.jpgAlbum click to view 2056.jpgAlbum click to view 4565.jpgAlbum click to view 6825.jpgAlbum click to view 10191.jpgAlbum click to view 307.jpgAlbum click to view 347.jpgAlbum click to view
