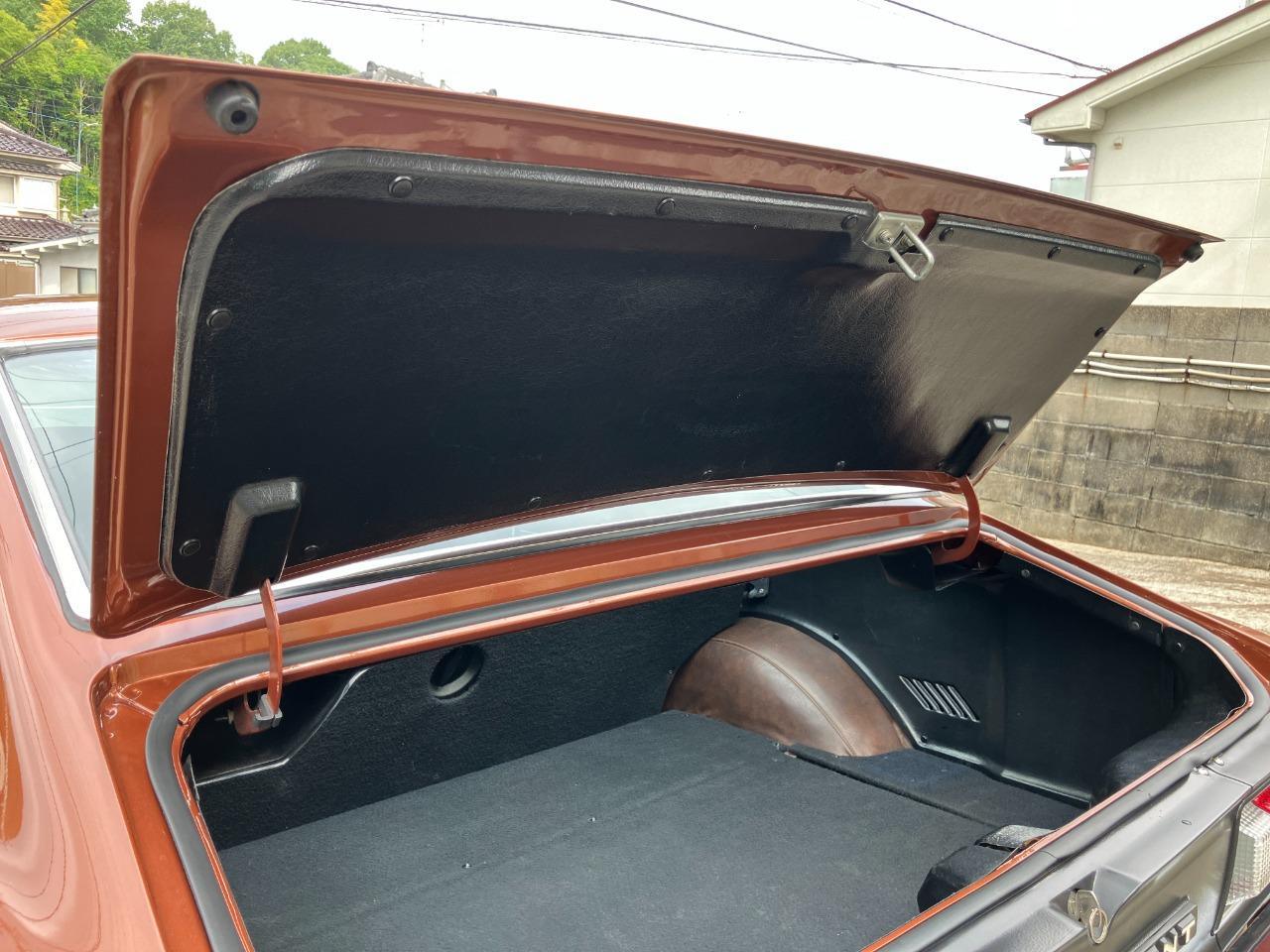

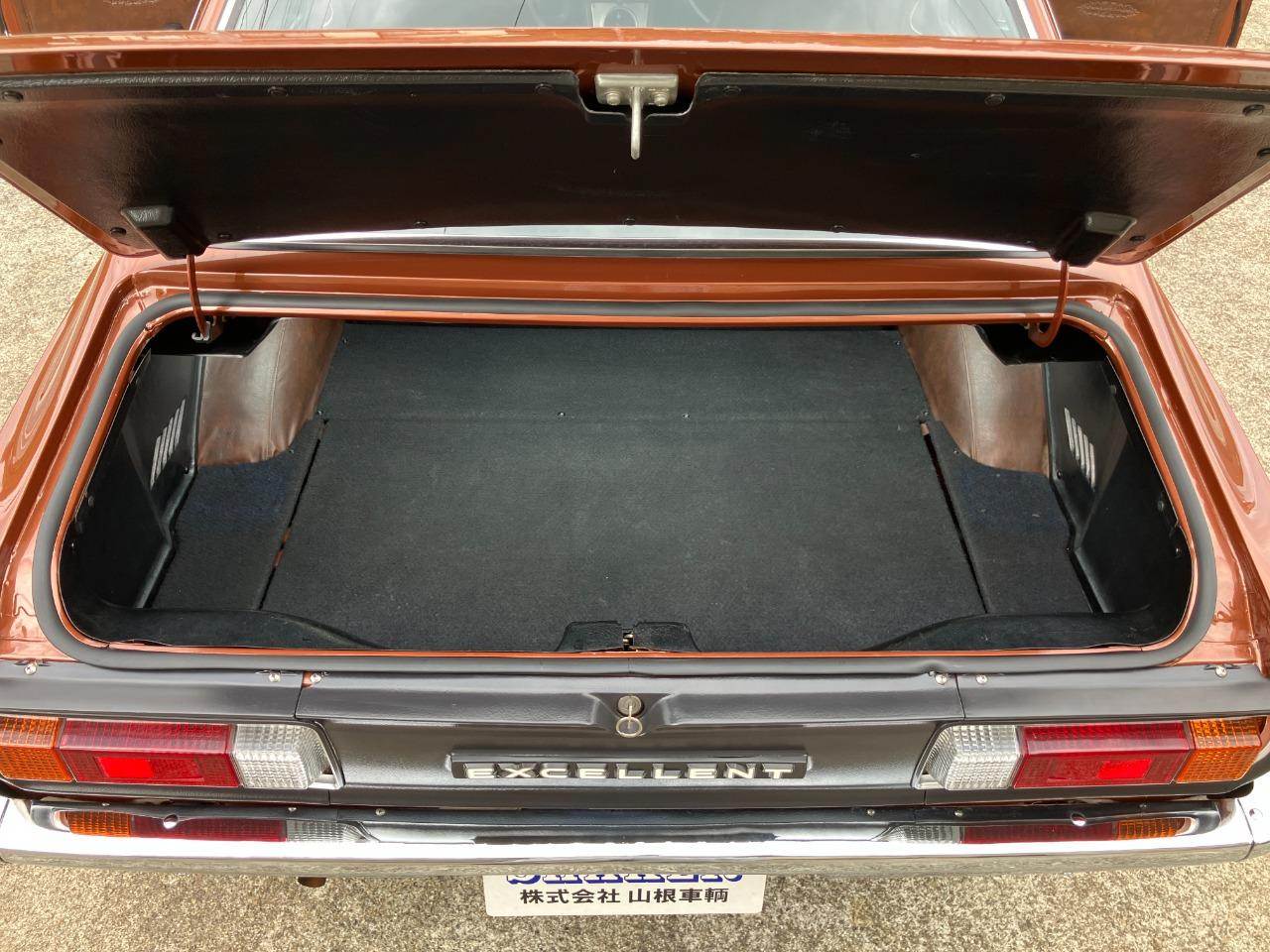

Datsun 1200 sedans have a regular trunk (boot) at the rear of the car. Coupes, being fastbacks but not hatchbacks, have a teensy-weensy trunk lid at the back. The sedan trunk is very roomy for a car this size, and can hold about eight grocery bags, or luggage for five people. The lids are secured with a key lock.

Contents

Overview

3049.jpgAlbum click to view 20398.jpgAlbum click to view

In sedans, the Fuel tank is inside the trunk, next to the rear Seat, hidden behind a finisher panel.

Standard Equipment

The trunk came factory equipped with:

  • Scissor Jack
  • S-shaped Jack Handle
  • Wheel Wrench in black Bag
  • Spare Tyre
For more details, see: Jack
13868.jpg 6277.jpg

Locks

Main: Locks

Coupe

84300-H1800 ASSY-TRUNK LID COUPE B110/PB110

84300-H1800-1.jpg 84300-H1800-2.jpg

Sedan

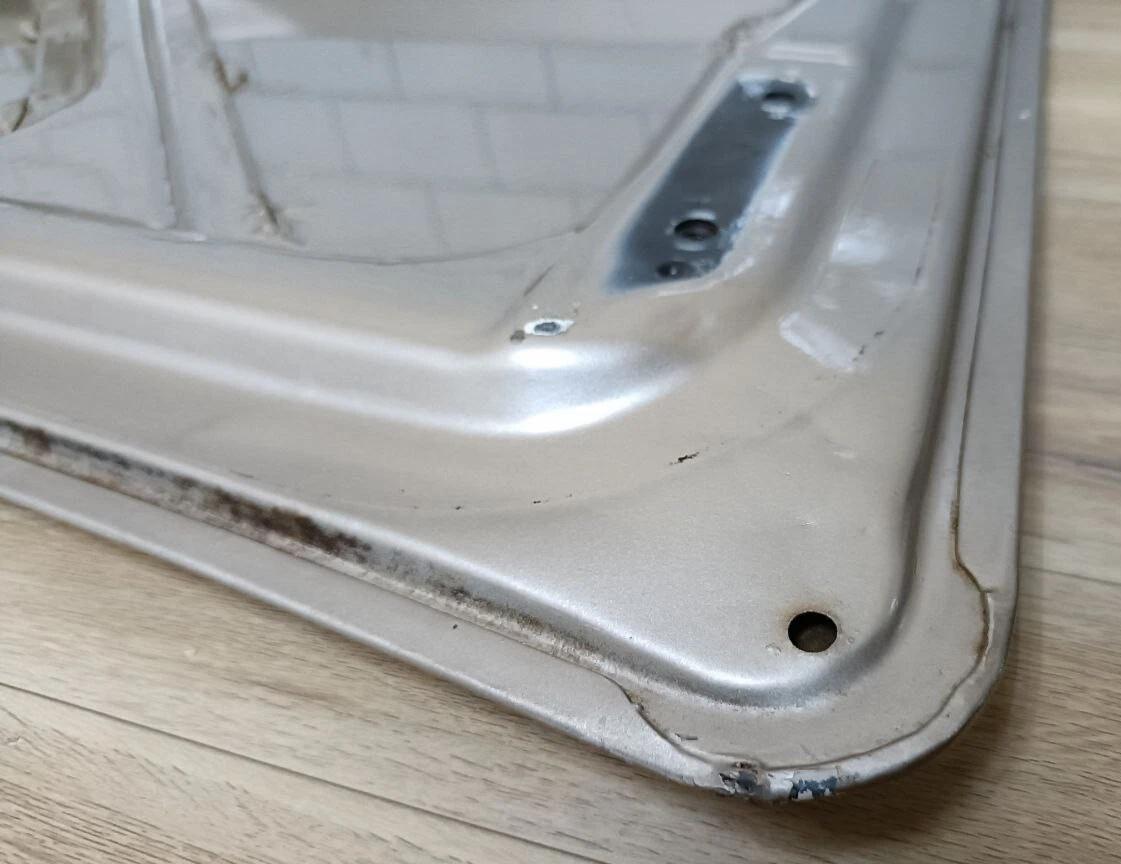

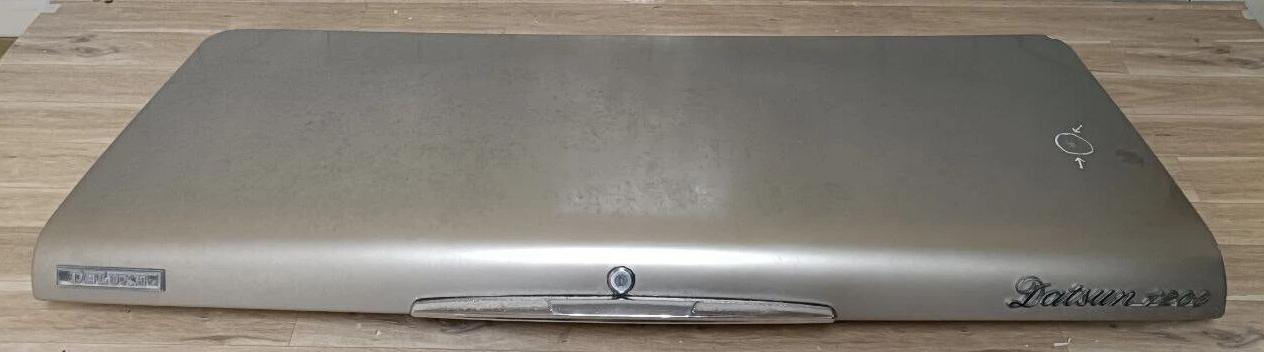

Boot Lid
13610.jpgAlbum click to view

84300-H1000 ASSY-TRUNK LID SEDAN B110/PB110
84830-H1000 BUMPER-trunk lid (2)

All parts are same B110 & PB110 — lock, lid, hinges, jack equipment, mat, etc. — except for the finisher board.

Bumper

80833-78500 RUBBER-BUMPER (2) SEDAN
28126.jpgAlbum click to view

diameter 14mm (at widest part)
height 16mm (cylindrical portion, not counting the tab)

28125.jpgAlbum click to view

Moulding

Option: trunk lid trim "handle" (cosmetic finisher) is 44cm long
8610.jpgAlbum click to view


Also used on PB110
197106-2x.jpg 27062.jpgAlbum click to view 25551.jpgAlbum click to view

Per the catalog, is not specific to any specific trim
25551.jpgAlbum click to view 25552.jpgAlbum click to view

84820-H1000 HANDLE-TRUNK SEDAN
84821-H1000 WASHER-TRUNK LID HANDLE SEDAN
84832-H1000 SPACER-TRUNK LID SEDAN (*)
08310-50812 SCREW (3)
08915-13510 WASHER (3)

* 1971 catalog shows small piece and specifies 3 spacers

1973 catalog (for same part number) shows one large spacer

27063.jpgAlbum click to view 8610.jpgAlbum click to view

トランク モール

Finishing Panels

The trunk finishing panels are made out of pressboard:
3236.jpgAlbum click to view 3237.jpgAlbum click to view 5295.jpgAlbum click to view

Panel hides the fuel tank and fuel lines
4930.jpgAlbum click to view

84910-H1000 FINISHER-trunk room (head board) <> 84910-H2800
84910-H1900 FINISH-TRUNK ROOM T=2.5 SEDAN USA
84910-H2800 FINISHER-trunk room B110 (from C/#B110-174795), 1972, PB110 S-DX
84910-H2900 FINISHER-trunk room PB110 S-GL,S-GX

H19 VS H10 differs slightly in the region of the fuel filler hose cutout.

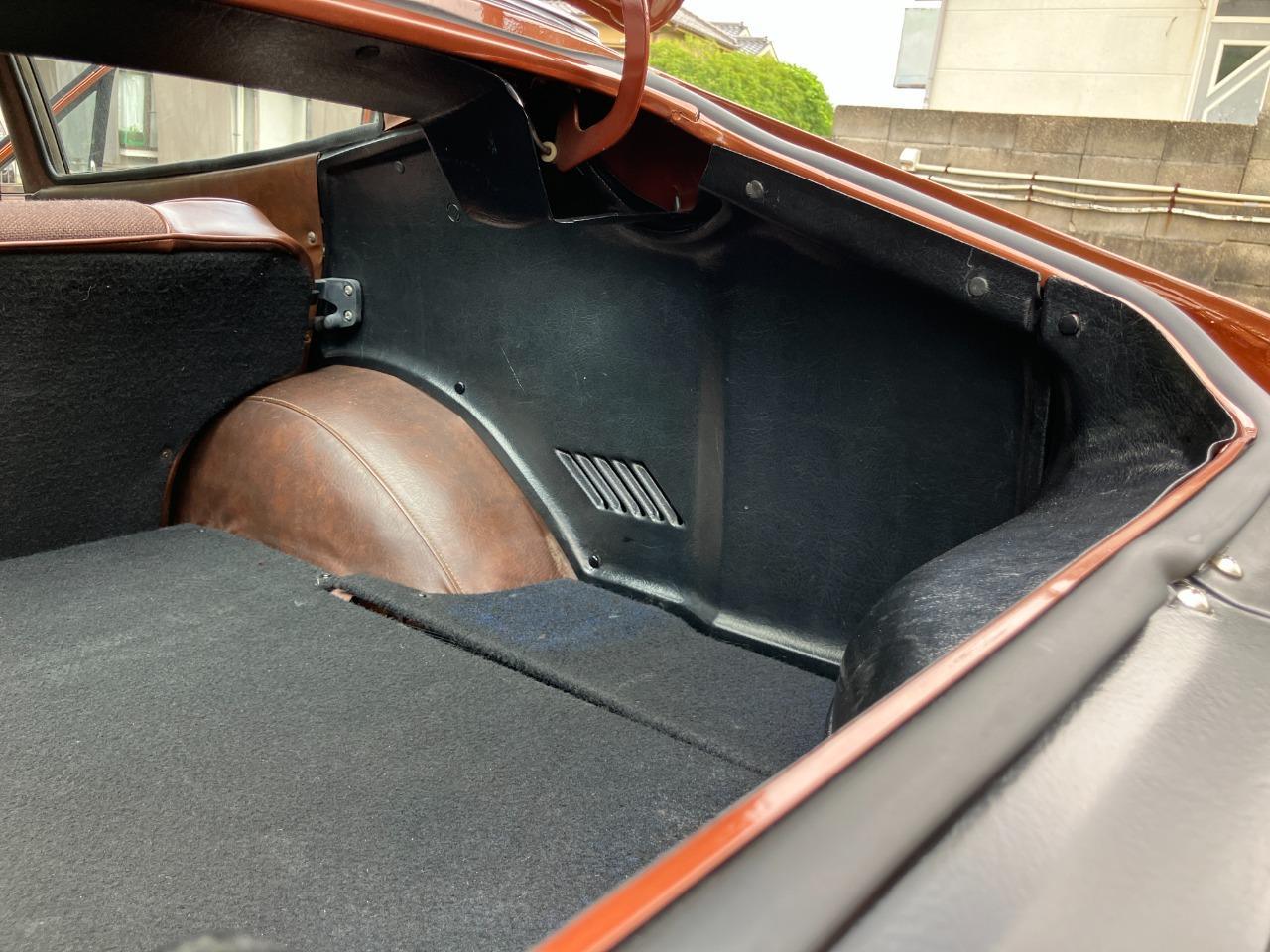

Coupe

Coupe has a small trunk lid.

14161.jpgAlbum click to view 7034.jpgAlbum click to view

23470.jpgAlbum click to view

558.gifAlbum click to view

Coupe boot lid has a stylish ridge down the centre
21414.jpgAlbum click to view

Of course, you can always fill the boot with speakers
7388.jpgAlbum click to view

Fitting

The 1200 coupe has interior plastic covers inside -- lots 'o plastic. There is plastic on the bottom side of the trunk lid too.
174_57932af0f2961.jpgPost click for topic 23469.jpgAlbum click to view

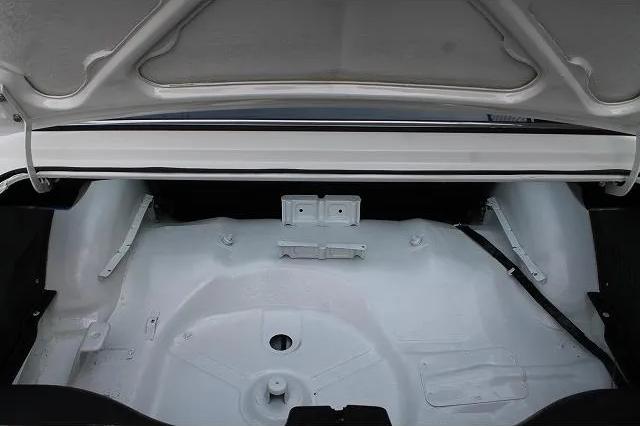

Without the finisher panels

Floor trim panel fasteners are fastened by the typical B110 sheet screws (B210 changed to bolts/machine screws).

Trunk Lid Finish panel
84911-H1800 FINISH-TRUNK LID T=1.5
84905-H1800 STOPPER-TRIM TRUNK FLOOR

23358.jpgAlbum click to view 23359.jpgAlbum click to view 23357.jpgAlbum click to view

Rear Floor

  • 08510-51612 SCREW-TAPPING M5 FIX TRIM (16)
  • 08963-20540 NUT-SPRING TYPE A M5 FIX TRIM (16)
  • 08915-43510 WASHER-PLAIN M5 FIX TRIM (16)
  • 84902-H2500 TRIM-TRUNK FLOOR CENTER
  • 84902-H7100 TRIM-TRUNK FLOOR CENTER (BLUE,LB-211
  • 84902-H7101 TRIM-TRUNK FLOOR CENTER (BEIGE,LH-20
  • 84902-H7102 TRIM-TRUNK FLOOR CENTER (BLACK,LG-13
  • 84902-H1800 TRIM-TRUNK FLOOR CENTER


Rear Side

  • 01553-00291 CLIP-TRIM (14)
  • 66919-H1099 CLIP-TRIM (15)
  • 84921-H1800 FINISH-TRUNK SIDE RH T=1.5
  • 84921-H1900 FINISH-TRUNK SIDE RH T=2
  • 84921-H2500 FINISH-TRUNK SIDE RH T=1,5
  • 84922-H1800 FINISH-TRUNK SIDE LH T=1.5
  • 84922-H2500 FINISH-TRUNK SIDE LH T=1.5

23364.jpgAlbum click to view 23365.jpgAlbum click to view 23363.jpgAlbum click to view

Rear

  • 01553-00291 CLAMP (24)
  • 84931-H1800 FINISH-TRUNK REAR T=2
  • 84931-H1801 FINISH-TRUNK REAR T=2
  • 84931-H2501 FINISH-TRUNK REAR T=2

23360.jpgAlbum click to view 23361.jpgAlbum click to view 23362.jpgAlbum click to view

Plastic Panel Fasteners

  • 01553-00291 CLAMP/CLIP
    • superseded 66919-H1001 CLIP-TRIM

23356.jpgAlbum click to view

76983-68400 LOCK-MALE
76982-68400 ASSY-LOCK FEMALE
08410-41210 SCREW-TAPPING
08915-43410 WASHER-PLAIN
08915-13410 WASHER-LOCK
84932-H1800 MASK-REAR LAMP T=2
84932-H2500 MASK-REAR LAMP T=2
84941-H1800 COVER-TRUNK LID HINGE
84939-H1800 WELT-TRUNK FINISH

Carpet

17794.jpgAlbum click to view 17795.jpgAlbum click to view 17796.jpgAlbum click to view 2879.jpgAlbum click to view 2884.jpgAlbum click to view

Floor Fitting

  • 32021-35000 PLUG-INSPECTION HOLE 55D USA
  • 74891-H2500 ASSY-COVER INSPECTION HOLE
  • 08510-61212 SCREW (6)

23366.jpgAlbum click to view 23367.jpgAlbum click to view

Truck

See also: Jack

Weatherstrip

84810-H1001 WEATHERSTRIP-TRUNK LID Sedan $53.73 USD
* superseded 84810-H1800 WEAHERSTRIP-TRUNK LID Coupe

378 mm long - Sedan


Boot (trunk) seal is same material as 510. Possibly 510 part will fit with trimming for length.

84806-A4600 Weatherstrip 510 $60.75 USD

510 Trunk Weather Strip 84810-21001

FRP

1200 boot lid, 4.5kg, $220 AUD
13888.jpgAlbum click to view 13688.jpgAlbum click to view 13687.jpgAlbum click to view 13889.jpgAlbum click to view 13890.jpgAlbum click to view

¤
