[Datsun 1200 encyclopedia]

Air conditioning

(Redirected from Aircon)

Datsun 1200 encyclopedia | Recent changes | Edit this page | Page history | Switch to MediaWiki mode

Printable version | Disclaimers | Privacy policy
Category: Heating And Ventilation Systems

Datsun 1200, unlike the Datsun 1000, was designed with air conditioning in mind. However, it was still a dealer-installed add-on option and so varied by country and region. In April 1978 it became a factory option for Japanese market Sunny Truck.


Contents

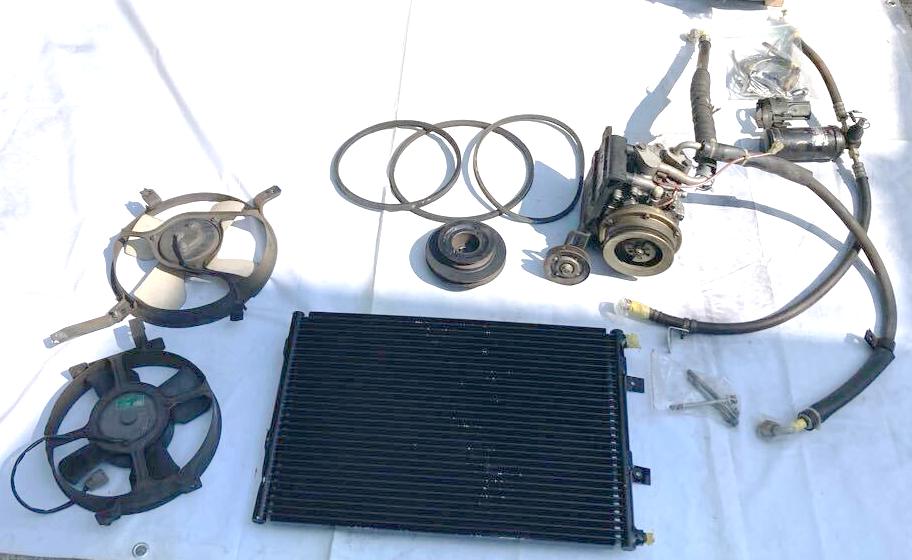

Parts Needed

Buy Universal Air Conditioning kits - $500 on eBay. $1300 from Summit. Contain compressor and everything needed except engine mounting brackets and V-belt.

23101.jpgAlbum click to view B110ac.jpg

  • Pump (Compressor) & mounting bracket
  • Double crankshaft pulley & V-belt
  • Condensor (radiator-like unit)
  • Filter dryer/receiver
  • Evaporator (under-dash unit)
  • Hoses
  • Wiring

double-belt Crankshaft Pulley
20080.jpgAlbum click to view

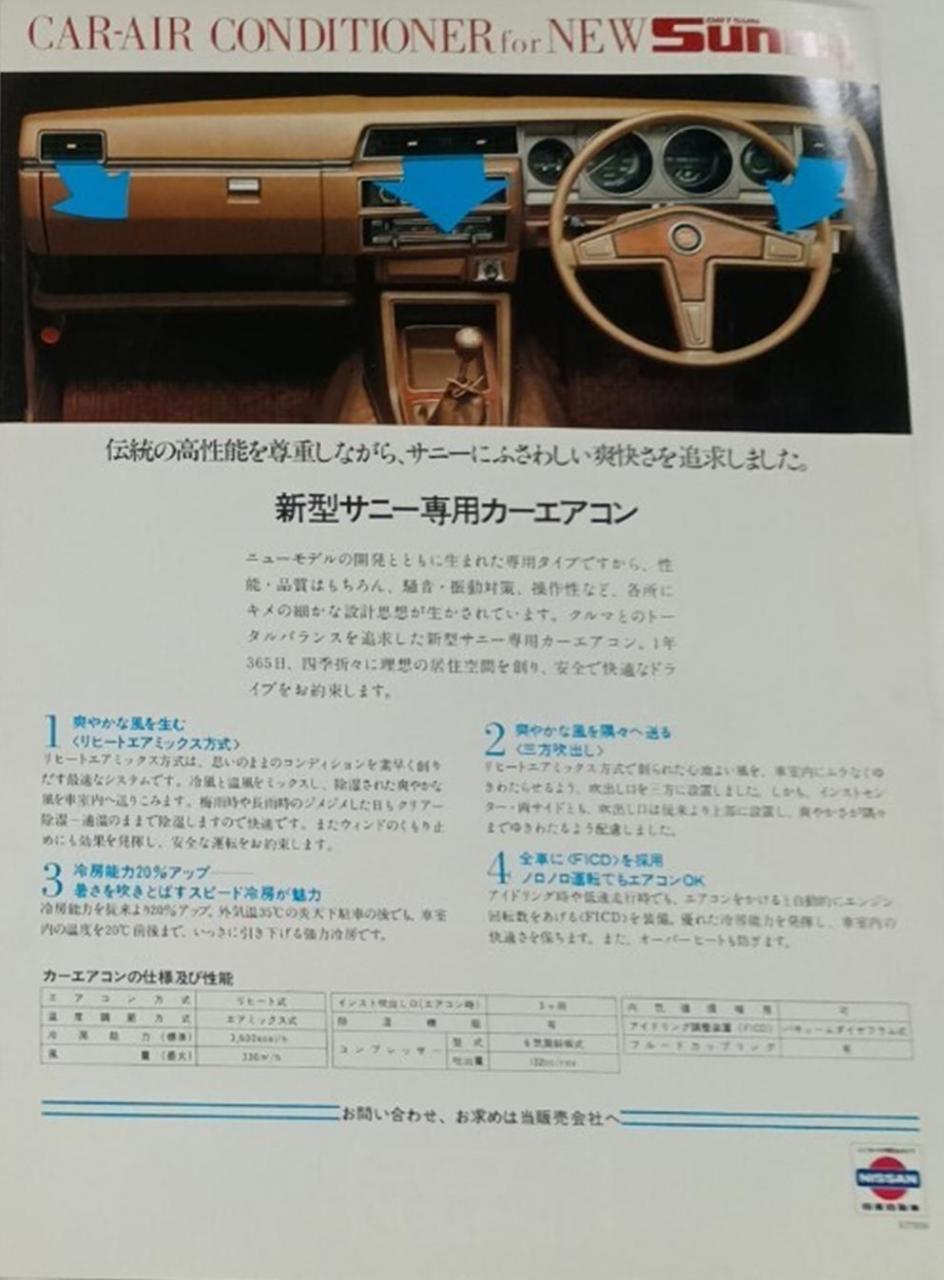

Since B110 A/C is fairly rare, you can source most of the parts from a B210 or B310. Only the interior vent setup is needed specific to the 1200.

13934.jpgAlbum click to view

9378.jpgAlbum click to view 15371.jpgAlbum click to view

Installation

  1. Install all the parts, except leave the dryer/receiver plug and unplumbed
  2. Drive to the aircon service shop
  3. They will evacuate the system (vacuum pump), charge with R-134a and appropriate oil

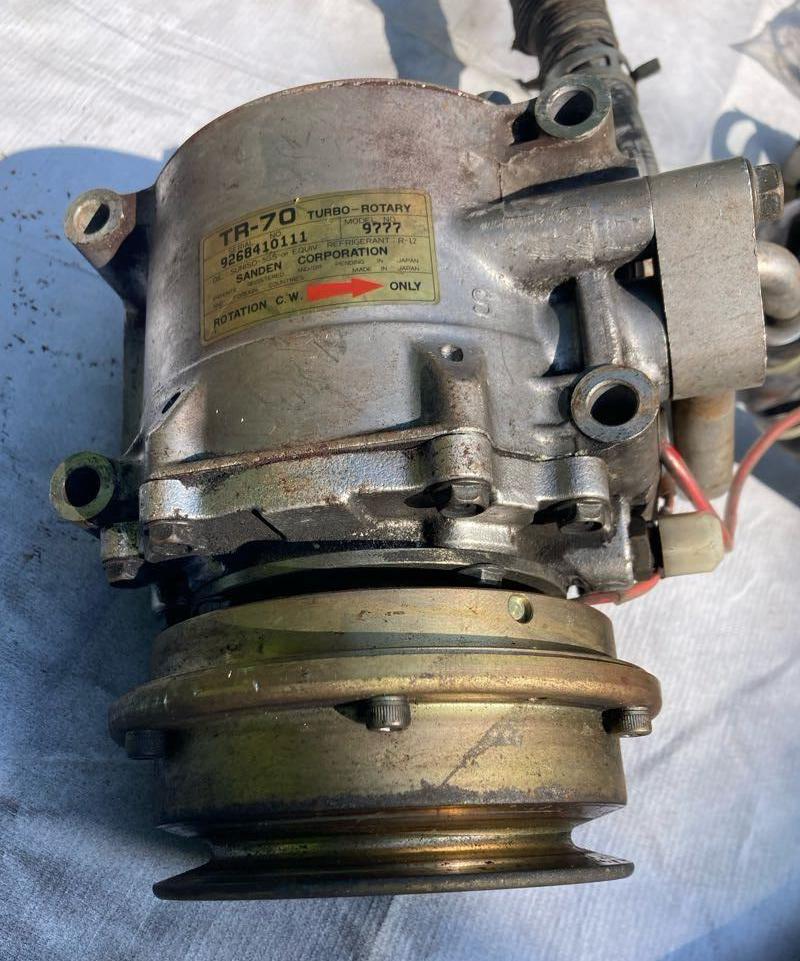

Compressor

The compressor pump bolts to the engine and is driven by a v-belt. A double-groove Crankshaft Pulley is fitted.

  • Early (to 1979): York-type compressor uses aluminum case. Commonly used from 1958-1980, they last a long time and are generally interchangeable between different car makes. When replacing, unbolt your clutch unit and bolt it to the new compressor.
  • Late (from 1980): Compact swash-type (radial) compressor

York-type | Radial
21309.jpgAlbum click to view 21308.jpgAlbum click to view

27630-G1660 COMPRESSOR-COOLER DKKC
27630-W7002 COMPRESSOR-COOLER DKKC [B421]
* JDM Datsun B120 8110-8910
* JDM Datsun 720 L18 7909-8105
92610-G1900 COMPRESSOR-COOLER DKKC [B421]
* B120 8910-
11910-G1661 BRACKET-COMPRESSOR 7804-7907
* 11911-G1661 BRACKET-COMPRESSOR [2nd piece]
11929-H1000 BELT-COMPRESSOR L-810 7804-7807
11910-G1615 BRACKET-COMPRESSOR 7908-8910
11910-95W00 BRACKET-COMPRESSOR 8910-
11929-G1615 BELT-COMPRESSOR L-814 7808-
11925-A0100 PULLEY ASSY-IDLER,COMPRESSOR 7804-7807
11925-G1615 PULLEY ASSY-IDLER,COMPRESSOR 7808-
11917-M0100 BOLT-ADJUST 7804-7907
* 11933-A0100 NUT 7804-7907

Engine Brackets

Various types of brackets were used over the years to fix the compressor to the engine. Early A12 and late A12 brackets differ.

See Main Article: Compressor brackets

You can make your own brackets, buy used from a B110/B210/B310 or Cherry/Pulsar, or buy new.

23103.jpg 21821.jpg

Evaporator

RHD factory Nissan
15193.jpgAlbum click to view

Seen in USA
15372.jpgAlbum click to view

LHD kit by Vintage Air 672001-VHY $309 at Summit

Australia aftermarket
5060.jpgAlbum click to view

Left-hand Drive

Ecuador

20065.jpgAlbum click to view

Taiwan


USA

1972 Brochure
24798.jpgAlbum click to view 24799.jpgAlbum click to view 24800.jpgAlbum click to view

The air condition for Datsun cars is made by Frigiking. It's the only system approved by the Datsun factory.
Except that the Factory used a different brand. Frigiking was only used in USA.

USA Type 1

15622.jpgAlbum click to view

16243.jpgAlbum click to view 16244.jpgAlbum click to view 14556.jpgAlbum click to view 14557.jpgAlbum click to view\


Specifications

Frigiking dealer-installed package. Larger capacity than 240Z, but less than 510 or 521 pickup
24400.jpgAlbum click to view

PERFORMANCE
Capacity: 12,500 BTU/hour
Airflow: 180 CFM
Evaporator Coil: 3/8 x .016 cu tubes, 4 rows
 staggered pattern, 12" x 5" x 2-1/2"
 fin series 120 flat aluminum
Expansion Valve: 1-1/2 ton
ELECTRICAL
Fan Switch: Reostat
Thermostat: Ranco type A-30
 Cold cut-out: 28F 2
 Cold cut-in: 36F 2
 Warm cut-out: 58F 4
Fan Motor: Double shaft, single speed, 4600 RPM @ 13.5 V
 11.5 amps maximum current draw
Clutch: Pitts 6" double groove 12V 4.0 amp
Wiring: SAE specification J558a
Overload Protection: Inline fuse 30 amps
COMPRESSOR: York 206 (6 cubic inches)
CONDENSOR: 3/8 x .016 cu. tube, 2 row inline pattern
 13 x 12 x 1-1/2 fin seris 10 fins/inch
GENERAL KIT COMPONENTS: All meet SAE specifications
COMPRESSOR MOUNT KIT
Brackets are 1/4" hot rolled steel, arc welded and painted
Drive Pulley material: ASTMA-159, Class G3000, grey cast iron
 precision machined, balanced and painted
Idler Pulley: Cast iron, fully machined with single-row sealed ball bearing
Attaching Hardware: Grade 5, black, rust resistant
Compressor Drive Belt: Standard automotive quality, 500 section
EVAPORATOR SECTION
Material: High-strength injection-molded plastic case
Knobs: injection-molded plastic

USA Type 2

7450.jpgAlbum click to view

USA Type Frigette

Frigette Brand. Aftermarket kits still sold at JC Whitney!

2187.jpgAlbum click to view

Optional Fan

Nissan option flex-fan (dealer item)
3053.jpgAlbum click to view

USA catalog
* 21060-H1001 FAN-COOLING A12 (standard B110 fan)
* 21060-A4605, 21060-N0100 FAN-COOLING D=330 FOR TROPICAL USA
  330 mm diameter

Sunny Truck Kit

Starting 1978 April a factory cooler kit was offered with upright compressor and standard interior unit. It is a very nicely designed unit, however the interior cooler protrudes into the passenger legroom and precludes using a package tray.

See Main Article: 1979 aircon

20078.jpgAlbum click to view
This kit is beautiful and easy to install. Unfortunately the interior cooler unit is bulky and protrudes farther into the passenger legroom than other types.

20087.jpgAlbum click to view

Retail Kit

Acqua Garage sells a R-134a kit, 2015 price was 300000 Yen (about $3000 USD).

  • 1 hanging unit Unicla IMPERIAL III with 5/16 - 5/8 O-ring
  • 2 AC compressor UP-90 = U02/A / A charging valves (no)
  • 3 12 x 12 Condensor plust reducer joints
  • 4 receivers & receiver BK
  • 5 electric fan unicla 8 inch PUSH & banding
  • 6 General purpose relay 2 pc
  • 7 a. Special design compressor fixing bracket.
  • 8 AC for stock taking crank pulley
  • 9 cooling fan & spacers
  • 10 hose

Unicla hanging unit 12V R134a right hand drive AG ALL-BLACK specifications (genuine Unicla, not a "Star Road" made in China knockoff)

O-rings made in Japan products composition 5/16-5/8 UNIF wiring fuse + universal mounting bracket included

AG special compressor UP 90 + U02 < gas valve protection > 12 V R134a O-rings
A/A clutch parts w/< front thickness and > pressure valve with 1/2 - 5/8 UNIF
comes with compressor fixing bracket for the A-series block

Condensor 12 inch12 inch T22mm O-rings

Fitting F3/8-O5/16 reducer + F1/2-> O1/2 < reducer

Receiver-dryer and liquid tank < filter > PSW with O ring 5/16S-5/16S | bracket
PSW5-16-3-2.jpg Receiver-BK2-2.jpg

Unicla electric pusher fan 8-inch | tie-locks
unicla-8inch7-4.jpg umkit4_4.jpg

Relay

Crank pulley with extra groove for AC compressor drive belt

Hoses similar to this, made of varying quality components

OPTION 25000 Yen - 6-blade cooling fan

OPTION 58000 Yen - genuine brass radiator, fit original fan shroud (not included)
OPTION 13000 Yen - fan shroud

Front-distributor A12

Japan setup for front-distributor A12
21644.jpgAlbum click to view 21645.jpgAlbum click to view 21646.jpgAlbum click to view

1977

Non-factory Unicla 311609 from 1977 Sunny Truck H-B120

Unicla imperial-III under-dash unit
unicla-1.jpg unicla-2.jpg unicla-3.jpg unicla-4.jpg unicla-5.jpg unicla-6.jpg unicla-7.jpg unicla-8.jpg

Unusual compressor mount
25585.jpgAlbum click to view 25586.jpgAlbum click to view

idler pulley
th_pulley-1.jpg th_pulley-2.jpg

Unicla DA-299 compressor
th_unicla_DA-299-1.jpg th_unicla_DA-299-2.jpg th_unicla_DA-299-3.jpg th_unicla_DA-299-4.jpg

Unusual 6-blade fan
25587.jpg 25588.jpg

Idle Speed Control

In 1989 they added the FICD (Fast Idle Control Device) to raise idle speed about 100 RPMs when the compressor runs.

See Main Article: FICD

Legroom

Since the cooler unit takes up some of the passenger legroom, what to do? One enterprising 1200 fan mounted the cooler unit in the dash:

18256.jpgAlbum click to view 18767.jpgAlbum click to view

Of course the downside is there is no glove box.
