Category: Datsun B10


Contents

Japan Market

Although marketed and sold as a "Datsun", the 1000 did not come with any "Datsun" badges or emblems (for more details, see Datsun B10#Name).

174_6114fdc358572.pngPost click for topic

radiator grille #'S' ornament 1967
radiator grille #'S' ornament 1968-1970
fender/wing #'Sunny' badge
fender/wing #'Deluxe' badge
  • Sedan, light Van (wagon) and Truck (ute) all use the same front badges
  • Coupe badges differ
  • The grille badge changed from 1967 (vertical badge) to 1968-1970 (horizontal shield-shaped badge)


Japan model sedan badges with Coupe round badge
6595_4cdf672dd169d.jpgUpload click to view

Deluxe Sedan badges with Coupe grille badge
174_5e2766cd7a045.jpgPost click for topic

b10deluxe.jpg b10_badges.jpg b10_badges_.jpg

Sedan & Van

  • #63841-18025 EMBLEM-"Sunny", front fender [Also Truck]
    21314.jpgAlbum click to view
  • #63843-18225 EMBLEM-"deLuxe", front fender Deluxe [also Coupe]
  • #84821-18025 EMBLEM-"Sunny 1000" [boot, right side sedan/van]
    9987.jpgAlbum click to view 16503.jpgAlbum click to view
  • #84823-18225 MARK-"deLuxe" [boot, right side]
  • #84824-27725 KIT-MARK-"SPORTS" Sedan 4-speed [boot lid, left side]
    21315.jpgAlbum click to view
  • #84824-20300 MARK-"NISSAN Full Automatic" Sedan A-all [boot lid, left side] [Same as Coupe badge]
  • #84823-H0125 SET-MARK, "GL" Sedan GL
  • #62311-18025 SET-EMBLEM, radiator grille ["D"]
  • #62311-27725 KIT-ORNAMENT, radiator grille (from C/# VB10-066701) ["S"]

Truck Only

  • 96906-15401 LABEL-car name "Sunny"
  • #84235-18225 MARK-"deLuxe" Truck Deluxe [also Sedan, Van]

Coupe Only

KB10 came out in mid-1968, there was no 1967 coupe.

  • #62311-25725 KIT-ORNAMENT, radiator grille Coupe
  • #63841-25700 BADGE-"Sunny coupe", front fender
    6985.jpgAlbum click to view
  • #63843-18225 EMBLEM-"deLuxe", front fender Deluxe [Same as sedan, coat-of-arms style]
    7073.jpgAlbum click to view
  • #84812-25725 KIT-ORNAMENT, trunk lid Coupe [Round with reeded edges]
    2090.jpgAlbum click to view
  • #84823-18200 MARK-"deLuxe" [boot, right side]
    25906.jpgAlbum click to view
  • #84824-20300 MARK-"NISSAN Full Automatic" Sedan A-all [rear panel, center] [same badge as sedan]
  • #84823-H0125 SET-MARK "GL"? "Deluxe"? Coupe GL
  • #76831-H0225 'S' ornament
  • #Option Badges
    6579.jpgAlbum click to view

Export Models

Export Datsun 1000s, being sold by Datsun dealers instead of Sunny Shops, were badged "Datsun" instead of Sunny. However they still used the "S" emblems.


  • The SunnyCoupe badge does not appear to have been used on many export coupes, if any.
  • Exports coupes used 'DATSUN' instead of 'Sunny' badges

Rear Badge - Export coupes used the 'S' emblem, like this Australia coupe
22698.jpgAlbum click to view 18317.jpgAlbum click to view
Rear 'Sports' badge -- was it stock?

4585a.jpgAlbum click to view 4585.jpgAlbum click to view

  • BADGE-"D", radiator grille
    9465.jpgAlbum click to view 12313.jpgAlbum click to view 1263.jpgAlbum click to view
  • Different color badges?
    3418.jpgAlbum click to view
  • MARK-"DATSUN 1000"
    3541.jpgAlbum click to view 5833.jpgAlbum click to view 12807.jpgAlbum click to view
  • MARK-"DATSUN", front fender
    5834.jpgAlbum click to view 12313.jpgAlbum click to view 13237.jpgAlbum click to view
  • 84823-18200 Coupe Rear 'deLuxe'
    9724.jpgAlbum click to view
  • #63843-18225 EMBLEM-"deLuxe", front fender Deluxe [Same as sedan, coat-of-arms style]
    9998_4c89f162273ac.jpgUpload click to view
  • #62311-25725 'S' flag badge, radiator grille

Sedan/Van 'DATSUN 1000'
174_56c8f50cda87b.jpgUpload click to view 5833.jpgAlbum click to view

12807.jpgAlbum click to view 174_56c8f51da068a.jpgUpload click to view

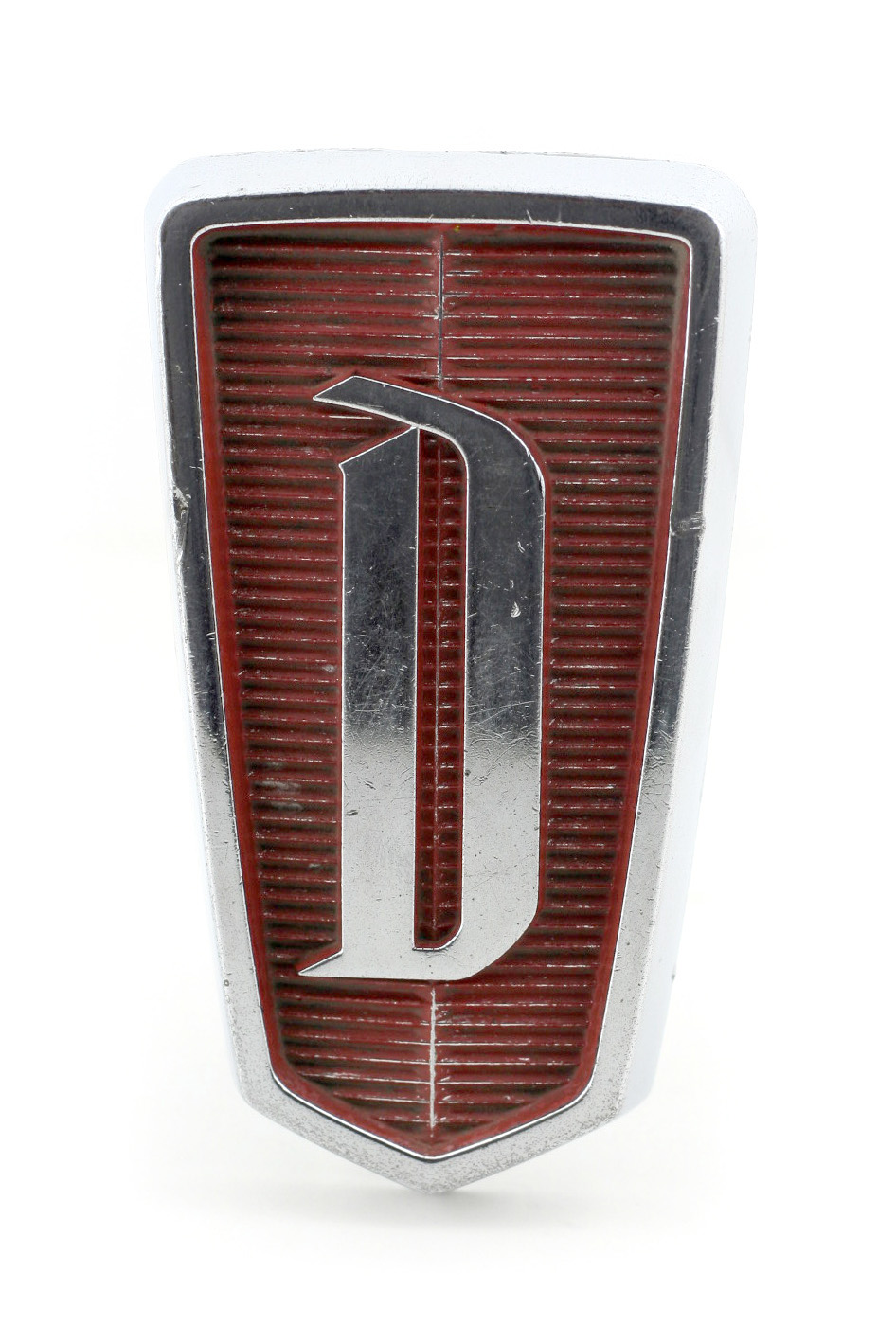

'D' Early Grille Badge

62311-18025 SET-EMBLEM, radiator grille

A narrow, vertically-oriented 'D' badge was used on early models -- both JDM and Export models.

  • sedan 1966-1967
  • light van (wagon) 1966-1967
  • 1968 Sunny Truck (B20) with aluminum 2-section grille
  • 1968 Australia Ute (which used the 1967 sedan grille)

Sedan/Van with the early aluminum-type 4-section grille
174_61150e80cb561.jpgPost click for topic 27295.jpgAlbum click to view


400px-1966_Datsun_Sunny_01.jpgWIKI go to Wikipedia

There are M4 nuts & washers fixing the emblem to the grille

quantity: 2 each
89-15434-1 WASHER-plain standard, M4
89-15134-1 WASHER-lock, M4
89-11104-1 NUT, low carbon steel (low grade strength/JIS 4T) M4 thread

174_611504c3008f9.jpgPost click for topic 7266.jpgAlbum click to view


'S' Late Grille Badge

62311-27725 KIT-ORNAMENT, radiator grille 'S'
Sedan/Van 1968-1969
Truck 1968-1970


7076.jpgAlbum click to view 174_5c0a39be48c17.jpgPost click for topic

about 11cm wide
174_611c313971457.jpgPost click for topic 174_611c31b815883.jpgPost click for topic 174_611c31c576bfb.jpgPost click for topic 174_611c31d966b55.jpgPost click for topic 174_611c3266586bb.jpgPost click for topic 174_611c3266586bb.jpgPost click for topic 174_611c3369070c0.jpgPost click for topic 174_611c33757d5b9.jpgPost click for topic

Fitted to B110 sedan
1231.jpgAlbum click to view

Flag Grille Badge

Radiator grille emblem ('S' flag badge in Datsun colors) — left side

62311-25725 KIT-ORNAMENT, radiator grille COUPE, SEDAN GL

174_5d37d9a0da06c.jpgPost click for topic 174_5d37d9bc070f6.jpgPost click for topic

174_5d00319f231f8.jpgPost click for topic

7077.jpgAlbum click to view 174_5d37d993ef2fe.jpgPost click for topic

Export Coupe
6644.jpgAlbum click to view s-COUPE.jpg

Grille badge

63843-18225

63843-18225 EMBLEM-"deLuxe", front fender Deluxe [Same as sedan, coat-of-arms style]
9998_4c89f162273ac.jpgUpload click to view 174_5e276923d0144.jpgPost click for topic

Sedan | Coupe
6635.jpgAlbum click to view 7781.jpgAlbum click to view

9986.jpgAlbum click to view 6643.jpgAlbum click to view 7073.jpgAlbum click to view

COUPE: 'deLuxe' and 'Sunny Coupe' front fender badges

63841-18025

63841-18025 EMBLEM-"Sunny", front fender
21314.jpgAlbum click to view 21313.jpgAlbum click to view 174_5e276954c3f1d.jpgPost click for topic

4248.jpgAlbum click to view 8739.jpgAlbum click to view

63841-25700

63841-25700 BADGE-"Sunny coupe", front fender (red, white & blue Datsun Colors)
6985.jpgAlbum click to view 7781.jpgAlbum click to view 9116.jpgAlbum click to view

76831-H0225

76831-H0225 KIT-ORNAMENT, rear quarter pillar (from C/# B10-350001) (2) 4-door Deluxe
76831-H0225 'S' ornament [round]
* with smooth edge
* with fluted interior ring
compare to #84812-25725
* with reeded edge
* with 3-section interior ring
2090.jpgAlbum click to view

1969 4-door sedan Deluxe rear quarter pillar ornament
174_6137d99e01b7e.jpgPost click for topic

174_613bdc3ad84e0.jpgPost click for topic 174_613bdc1bb288e.jpgPost click for topic 174_613bdc4632821.jpgPost click for topic 174_613bdc5736f07.jpgPost click for topic

174_613bdc67010a3.jpgPost click for topic 174_613bdc7741980.jpgPost click for topic

84812-25725

84812-25725 KIT-ORNAMENT, trunk lid Coupe [Round]
* with reeded edge
* with 3-section interior ring
2090.jpgAlbum click to view
Compare to #76831-H0225 Sedan Pillar 'S' ornament [round]
* with smooth edge
* with fluted interior ring
174_613bdc67010a3.jpgPost click for topic

2090.jpgAlbum click to view 6575.jpgAlbum click to view

4993.jpgAlbum click to view

20120607095211b09.jpg 20120607095212101.jpg

84821-18025

84821-18025 EMBLEM-"Sunny 1000" [boot, right side]
84821-18025.jpg 84821-18025_.jpg 84821-18025-.jpg

Sedan
9987.jpgAlbum click to view

Van
15080.jpgAlbum click to view 16503.jpgAlbum click to view

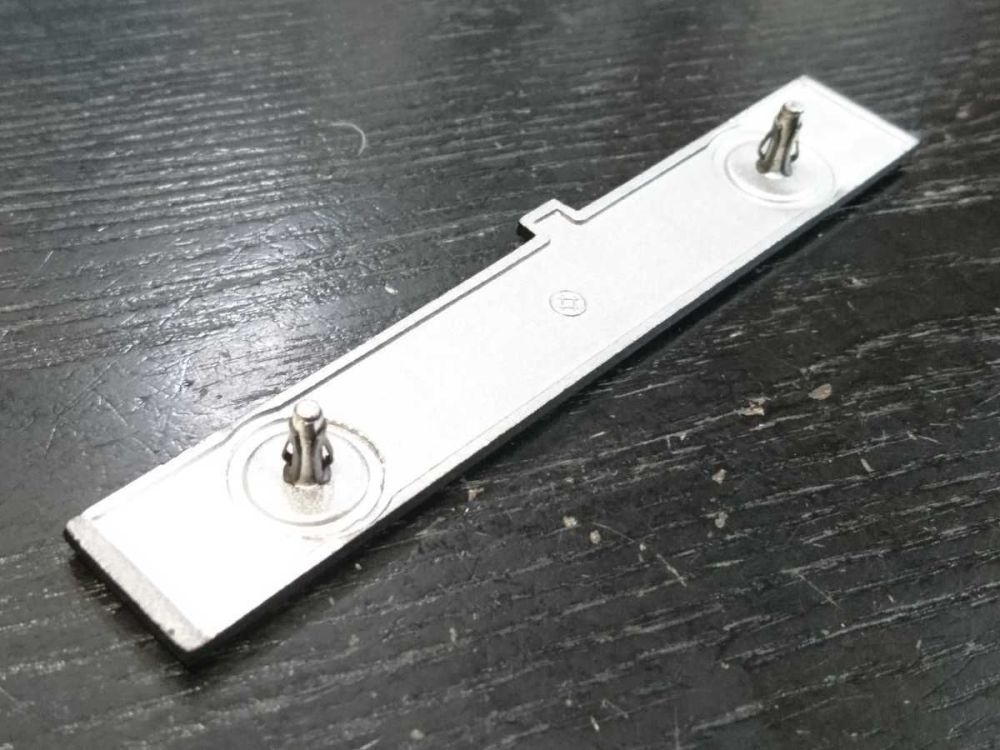

84823-18225

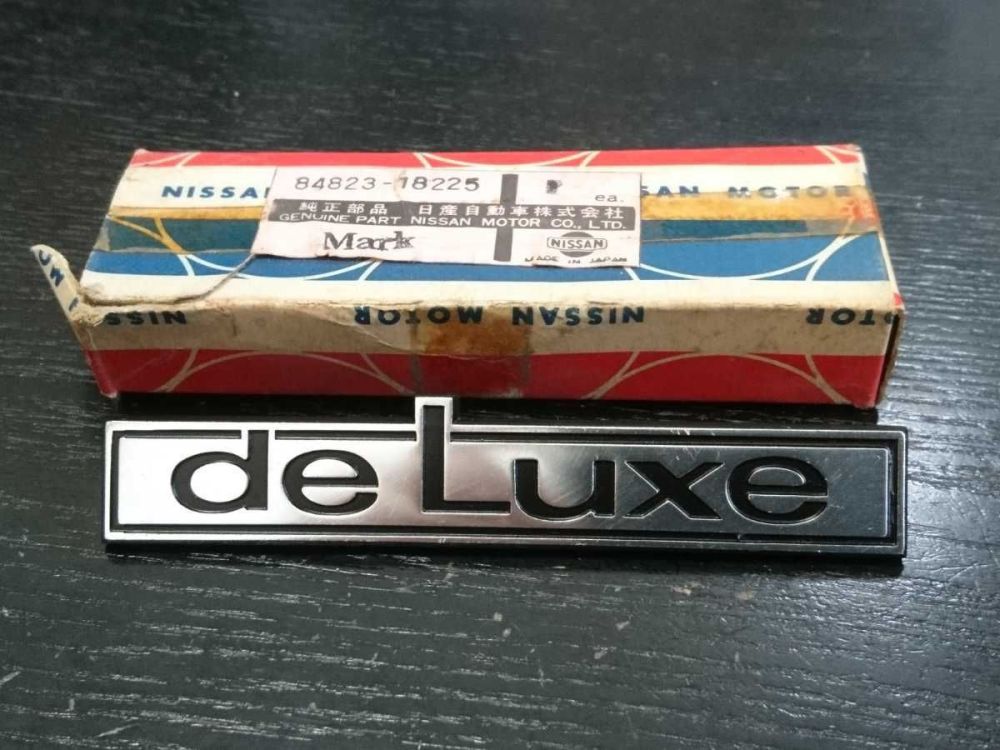

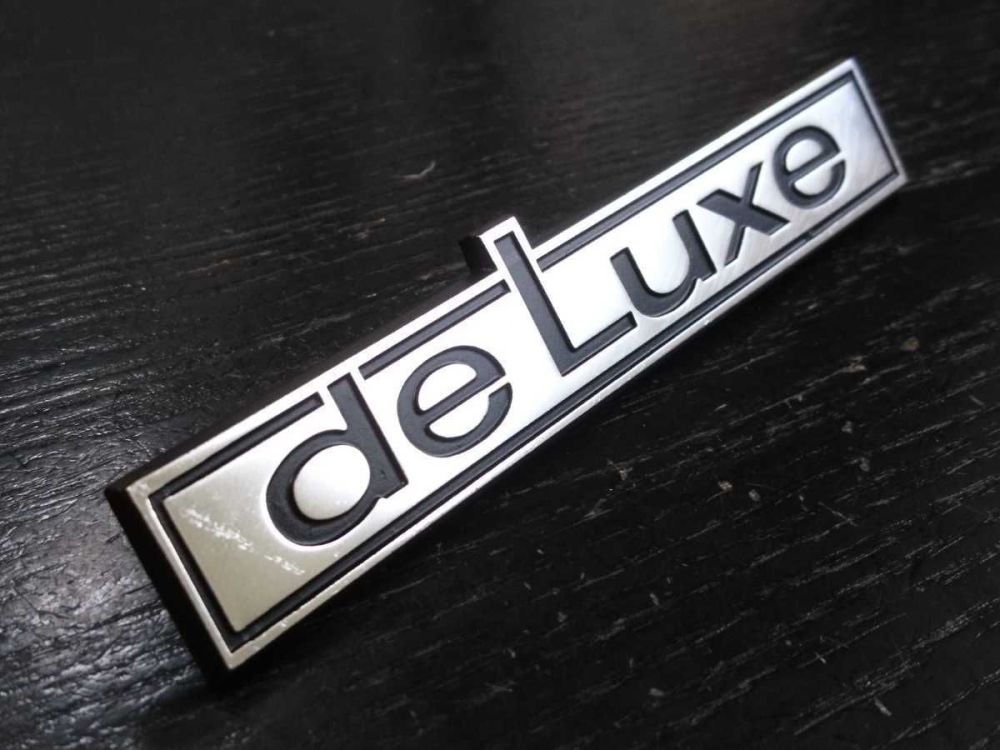

84823-18225 MARK-"deLuxe" [sedan boot, right side]


4238.jpgAlbum click to view 9998_4c89f1748c25f.jpgUpload click to view

coupe or sedan?
174_5e27693fcf1f5.jpgPost click for topic

84823-18200

84823-18200 MARK-"deLuxe" [coupe boot, right side]


25906.jpgAlbum click to view 4322.jpgAlbum click to view 9724.jpgAlbum click to view

84823-H0125

84823-H0125 SET-MARK "GL"
* Coupe GL
* Sedan GL

27968.jpgAlbum click to view B1016ppcover.jpgKB10 brochure

84824-27725

84824-27725 KIT-MARK-"SPORTS" Sedan 4-speed
* Sedan boot lid, left side
* 3-speed models carried no badge
COMPARE to Datsun 1200 'Sports' badge
20865.jpgAlbum click to view

21315.jpgAlbum click to view 174_5d0c810c54f69.jpgPost click for topic 4237.jpgAlbum click to view

84824-20300

MARK 'NISSAN Full Automatic'
27850.jpgAlbum click to view

Sedan | Coupe
21974.jpgAlbum click to view 27851.jpgAlbum click to view

27851.jpgAlbum click to view

Option Badges

KB10 Sports Options

Car Badges (Sunny motorsport mark)
6579.jpg 174_613532187506f.jpg

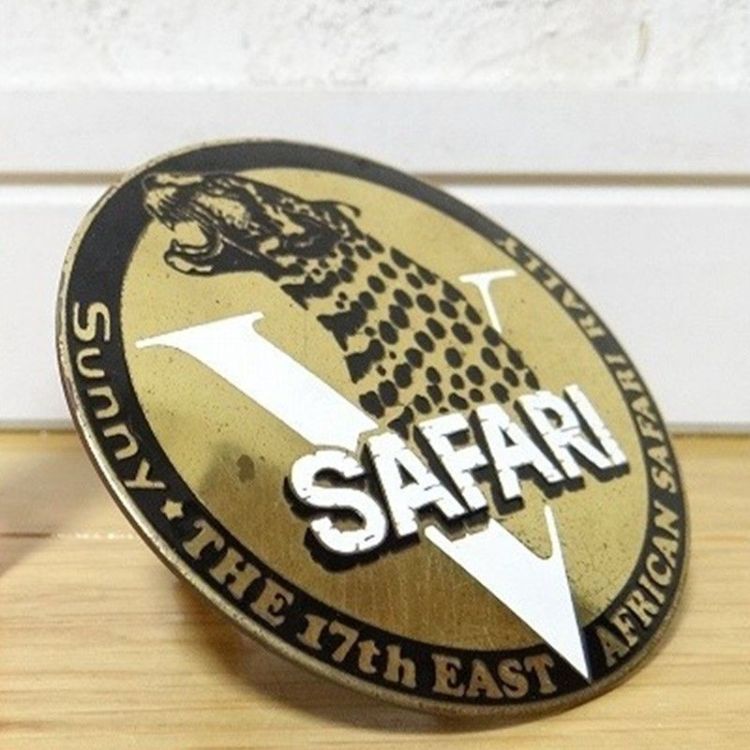

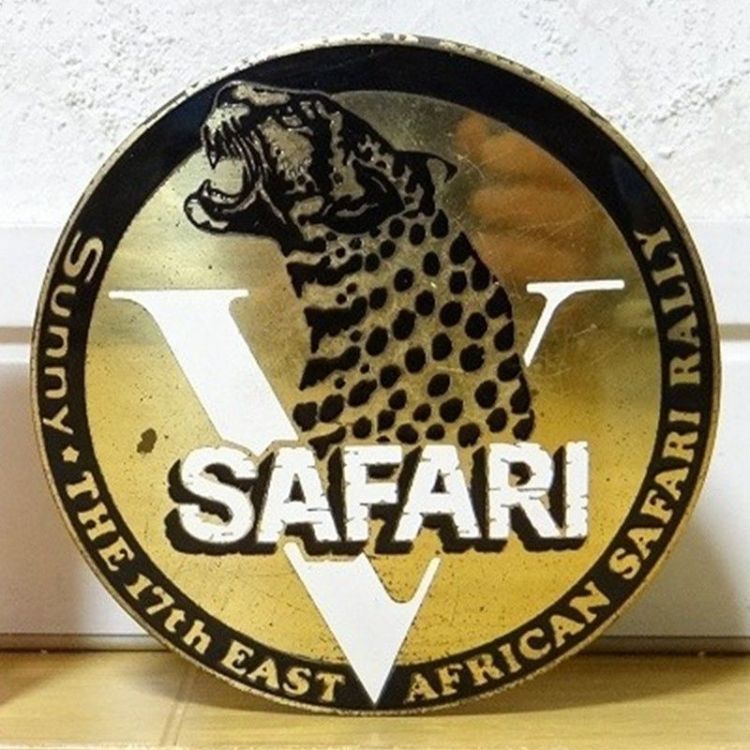

Safari Badge

Sunny * The 17th East African Safari Rally [1969]
174_611c206e9e17c.jpgPost click for topic

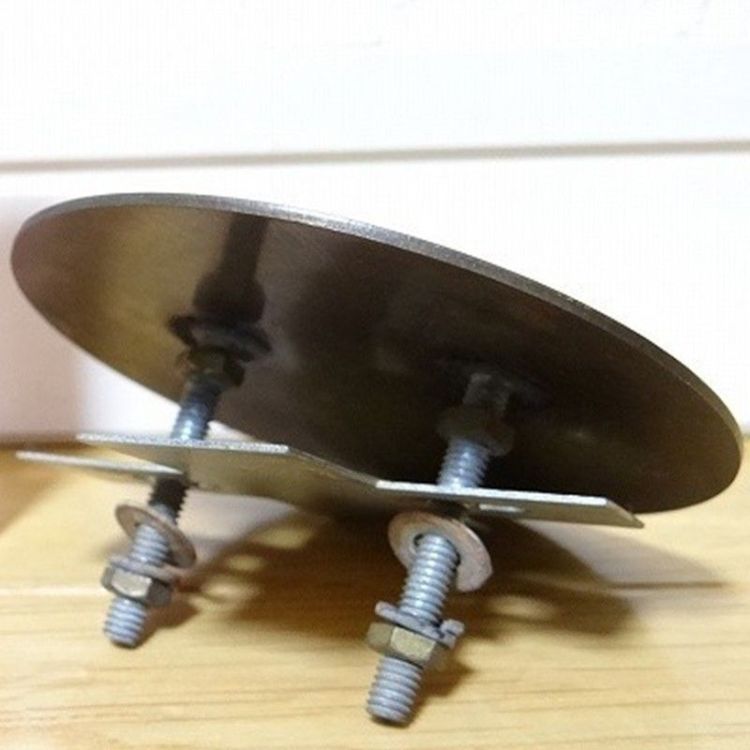

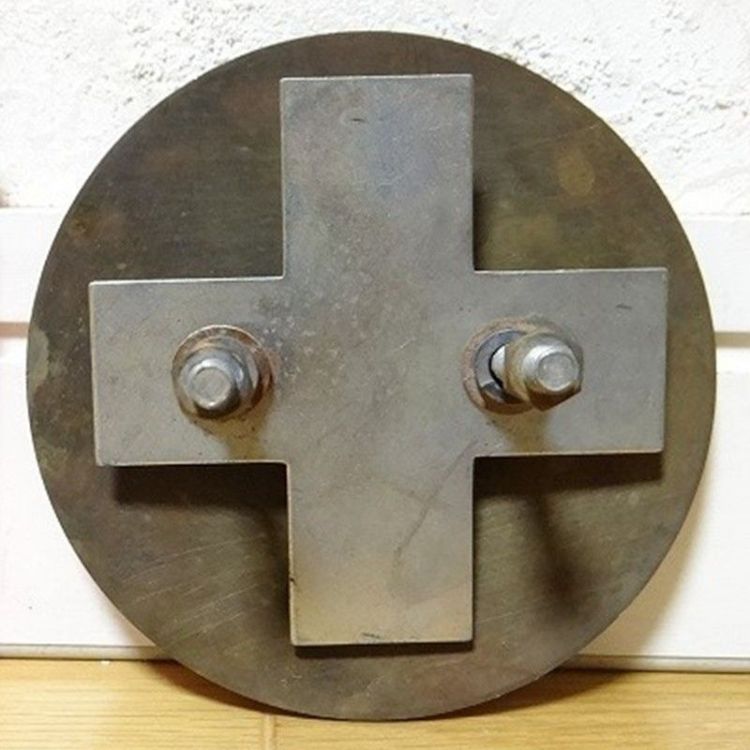

Studs: M5 x 40mm
Bolt pattern: 2 on 36mm PCD

174_611c207dcdf8a.jpgPost click for topic 174_611c208915846.jpgPost click for topic
